Product Description
Allen-Bradley 1769-OB32
The Allen-Bradley 1769-OB32 is a high-density DC sourcing output module designed for the CompactLogix and MicroLogix 1500 control systems. This module provides 32 sourcing-type outputs, making it an efficient solution for applications requiring control of multiple 24V DC devices such as pilot lights, relays, and solenoid valves. Its compact design saves valuable panel space while offering robust performance and reliability in demanding industrial environments. The 1769-OB32 integrates seamlessly into the 1769 Compact I/O architecture, allowing for flexible and scalable system configuration.
Technical Specifications:
- Outputs: 32 (2 groups of 16), Sourcing
- Voltage Category: 24V DC
- Operating Voltage Range: 10…30V DC
- Output Current Rating: 0.5 A per point (max), 4 A per group (max), 8 A per module (max)
- Backplane Current: 200 mA @ 5.1V DC
- Slot Width: 1
- Compatible Terminal Base: 1769-RTB18 or 1769-TB3 (not included)

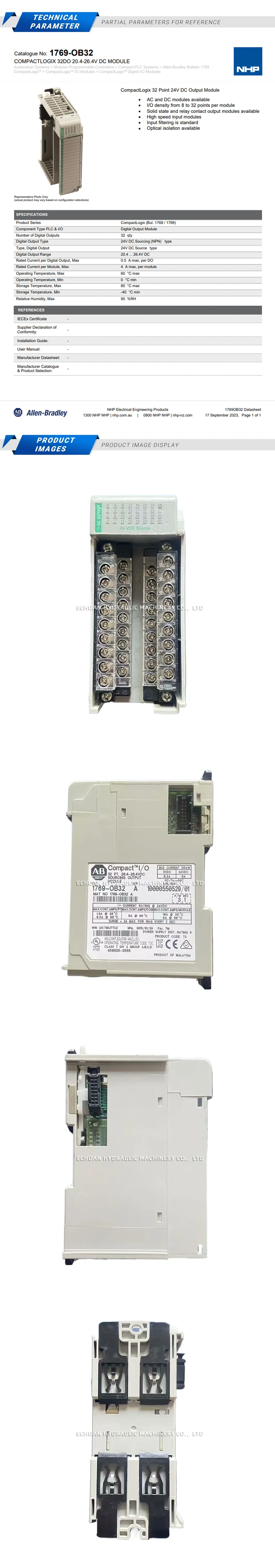

Allen-Bradley 1769-OB32
Upgrade your control system with the Allen-Bradley 1769-OB32 CompactLogix 32-point 24V DC sourcing output module. A reliable, high-density solution for industrial PLC applications.
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-OB32 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/allen-bradley-1769-ob32 |
