Product Description

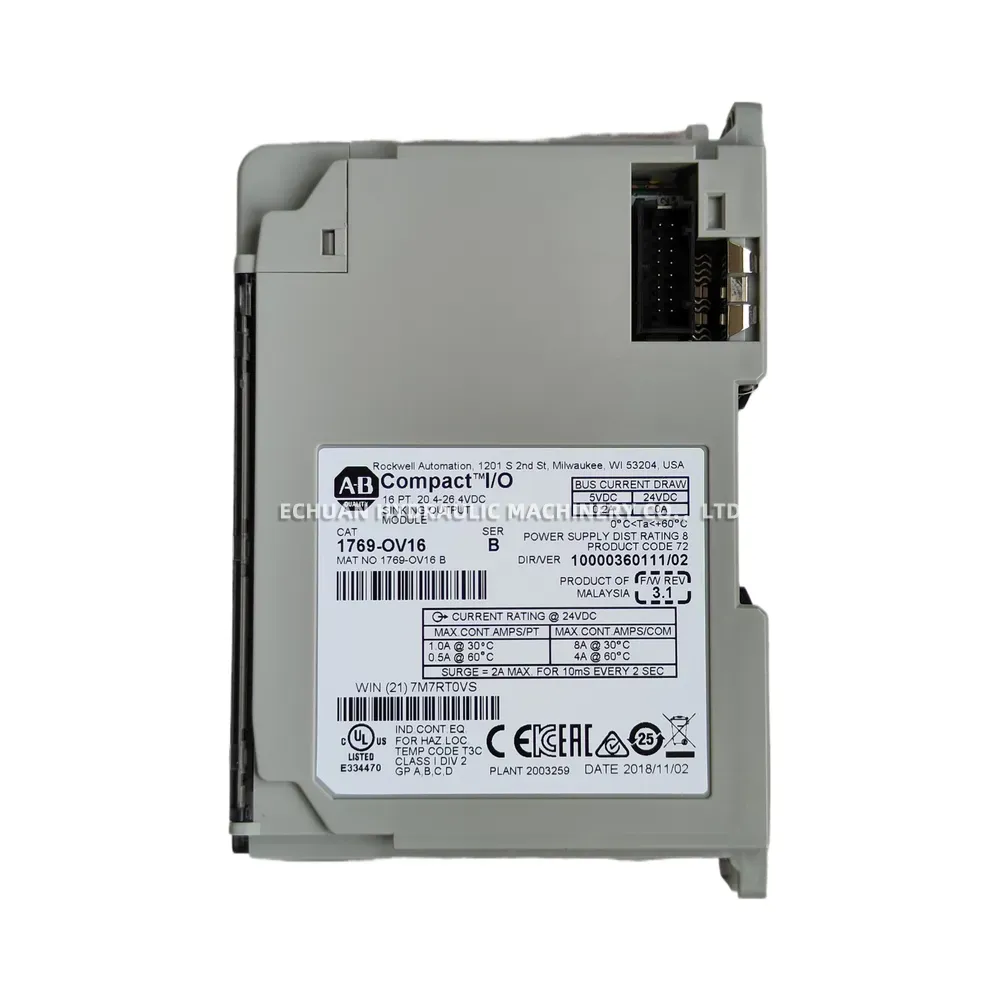

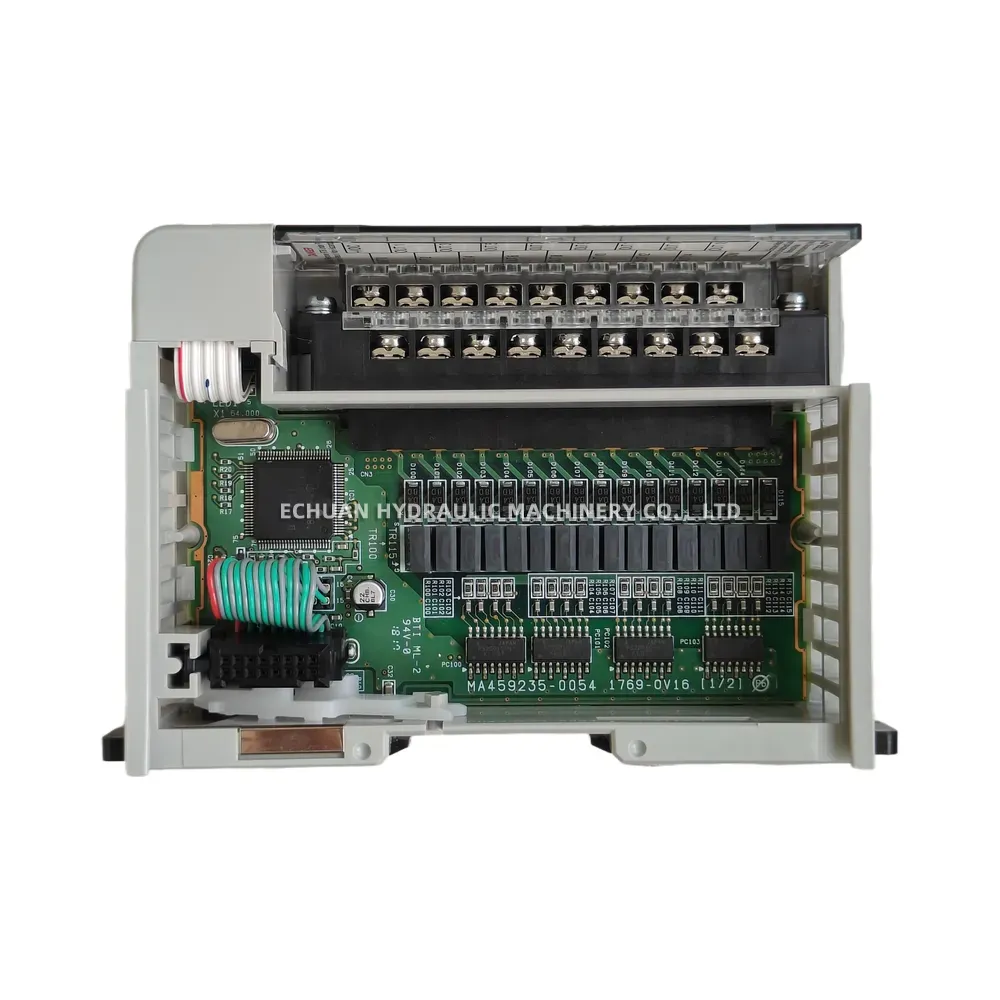

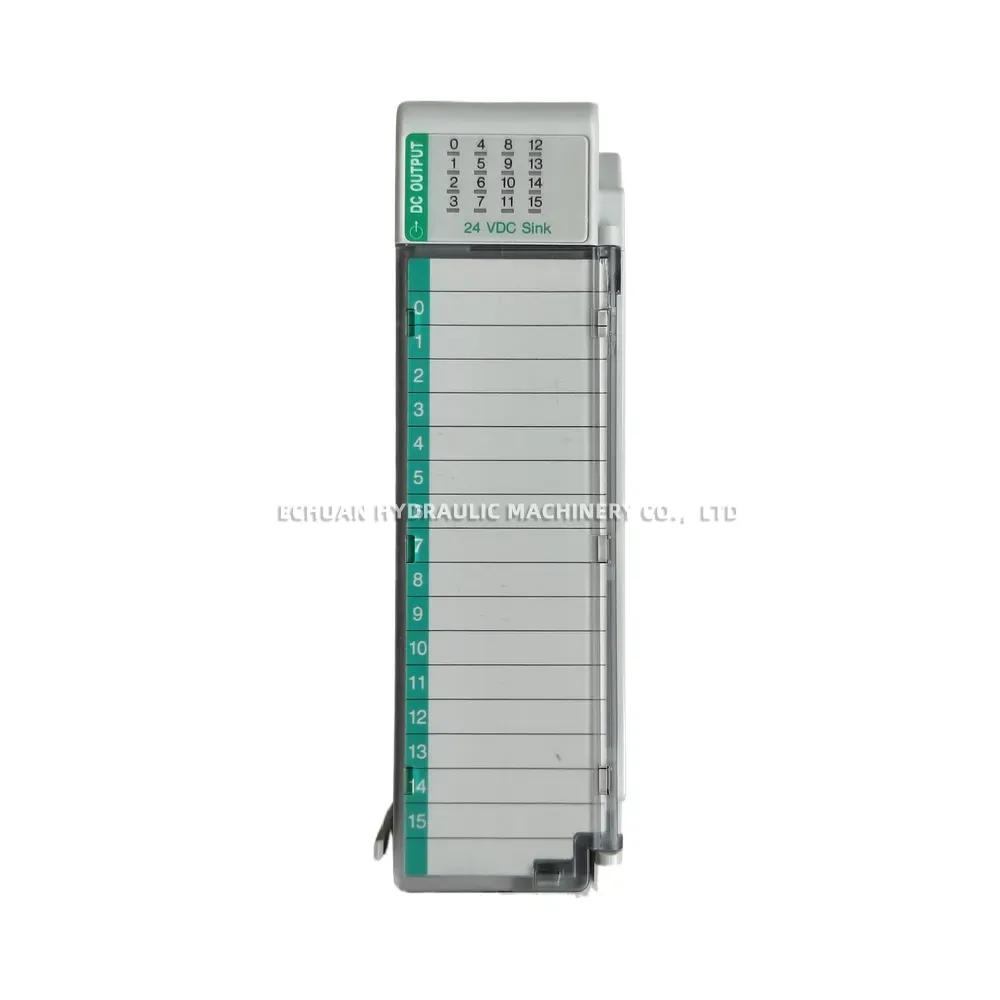

Allen-Bradley 1769-OV16 Output module
The Allen-Bradley 1769-OV16 is a CompactLogix 16-Point DC Sourcing Output Module designed for use in industrial control systems. As part of the 1769 Compact I/O platform, this module provides a high-density, cost-effective solution for controlling a wide range of output devices such as pilot lights, relays, and motor starters. It operates on a 24V DC voltage category and features sixteen sourcing outputs, making it a versatile component for applications requiring reliable digital control within a CompactLogix or MicroLogix 1500 system architecture.

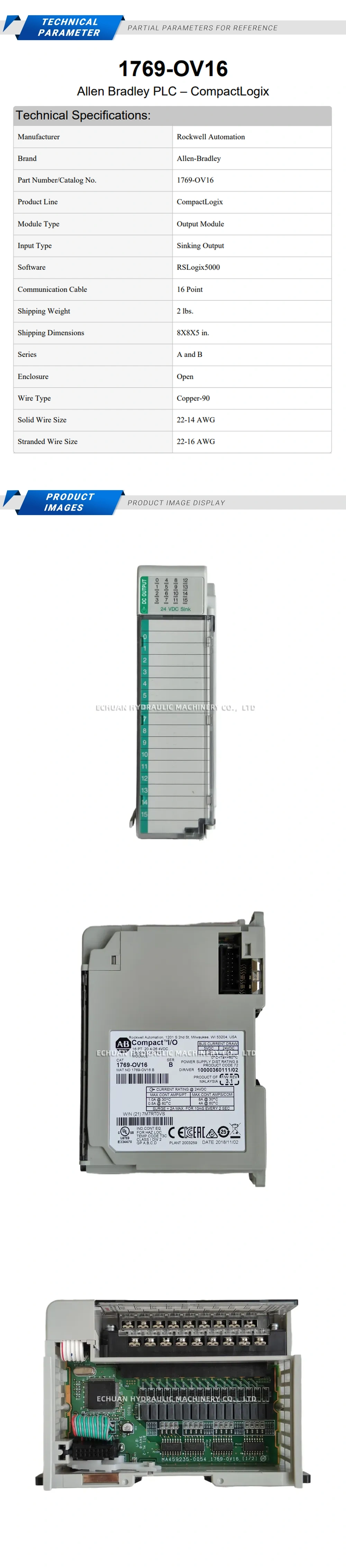

Technical Specifications:
- Outputs: 16 sourcing (1 group of 16)
- Voltage Category: 24V DC (sink/source)
- Operating Voltage Range: 10…30V DC
- Output Current per Point: 0.5 A @ 60 °C (140 °F)
- Output Current per Module: 4 A
- Backplane Current @ 5.1V: 135 mA
- Platform Compatibility: CompactLogix, MicroLogix 1500
Allen-Bradley 1769-OV16 Output module
Allen-Bradley 1769-OV16 CompactLogix 16-Point 24V DC Sourcing Output Module for reliable control in industrial automation systems.
