Product Description

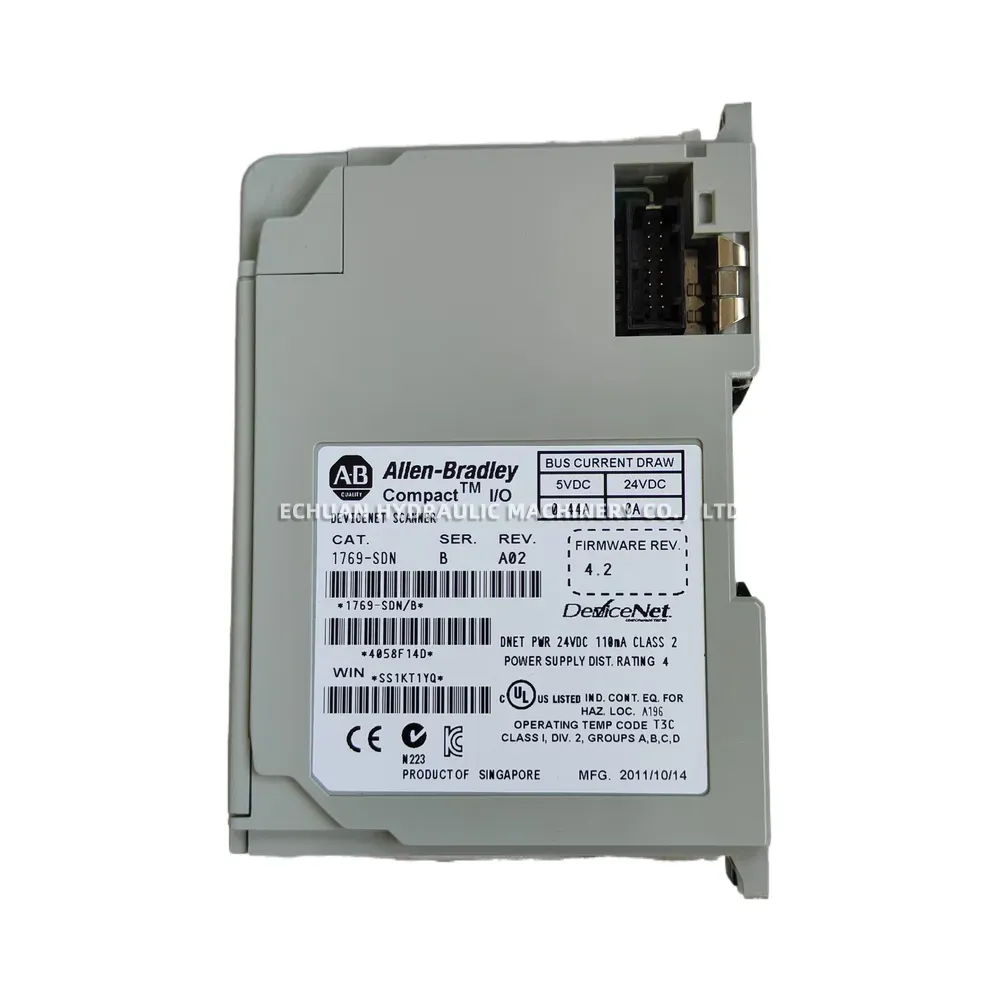

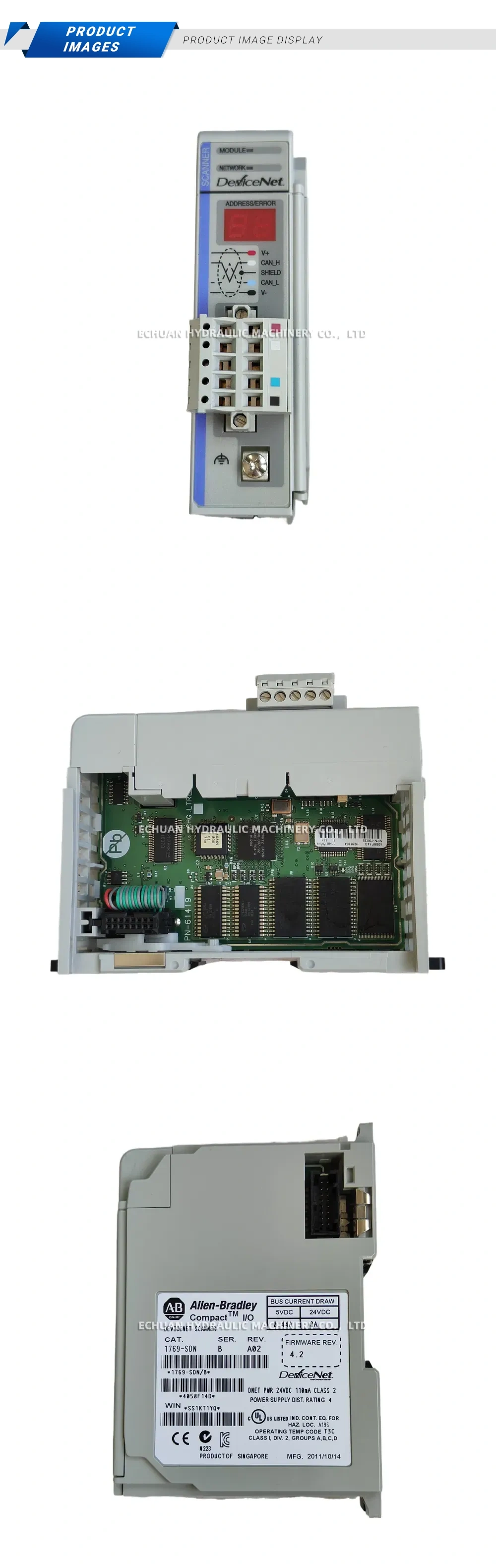

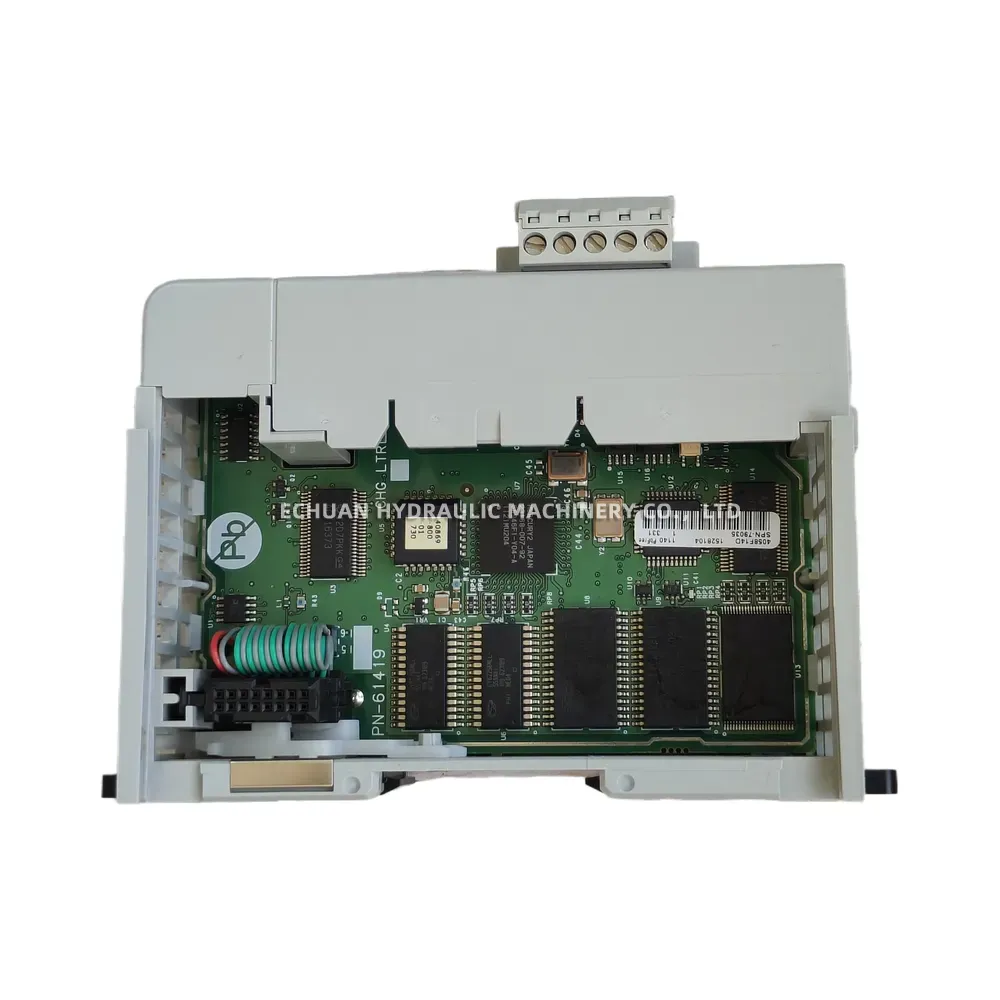

Allen-Bradley 1769-SDN DeviceNet Scanner
The Allen-Bradley 1769-SDN is a DeviceNet Scanner module designed for the CompactLogix and MicroLogix 1500 controller systems. It functions as a master or scanner on a DeviceNet network, enabling the controller to communicate with and control a wide range of slave devices such as sensors, actuators, drives, and I/O blocks. This module simplifies system architecture by providing a single point of connection for up to 63 devices on the network. It supports multiple communication rates and offers extensive diagnostic capabilities, making it a robust and flexible solution for distributed I/O and industrial automation applications.
Technical Specifications:
- Communication Rate: Selectable at 125 Kb/s, 250 Kb/s, or 500 Kb/s
- Number of Nodes: Up to 63 nodes on the DeviceNet network
- Backplane Current Draw: 450 mA at 5V DC; 0 mA at 24V DC
- Power Dissipation: 2.25 W
- I/O Connections: 512 bytes input, 508 bytes output
- Isolation Voltage: 50V (Continuous), Basic Insulation Type
- Enclosure Type: Open-style
Allen-Bradley 1769-SDN Devicenet Scanner
Enhance your CompactLogix system with the Allen-Bradley 1769-SDN DeviceNet Scanner module. This reliable interface allows your PLC to control up to 63 devices, supporting multiple baud rates for flexible industrial network communication.
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-SDN Devicenet Scanner |
| Category | Electrical |
