Product Description
Allen-Bradley 1794-IF2XOF2I Module
The Allen-Bradley 1794-IF2XOF2I is a versatile analog combination module for the FLEX I/O system. It provides a cost-effective solution by combining two differential or single-ended analog inputs and two single-ended analog outputs in a single, compact module. This module is designed to interface with a variety of analog sensors and actuators, supporting both voltage and current signals. Its flexibility makes it ideal for a wide range of industrial control applications where space is limited and both analog input and output capabilities are required, such as process control, machine automation, and data acquisition systems.
Technical Specifications:
- Module Type: FLEX I/O Analog Combination Module
- Number of Inputs: 2 (Differential or Single-Ended, selectable)
- Number of Outputs: 2 (Single-Ended)
- Signal Range (Input/Output): ±10V, 0 to 10V, 0 to 20 mA, 4 to 20 mA
- Resolution: 12 bits plus sign (Inputs); 12 bits (Outputs)
- Required Terminal Base: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3G, 1794-TB3GS

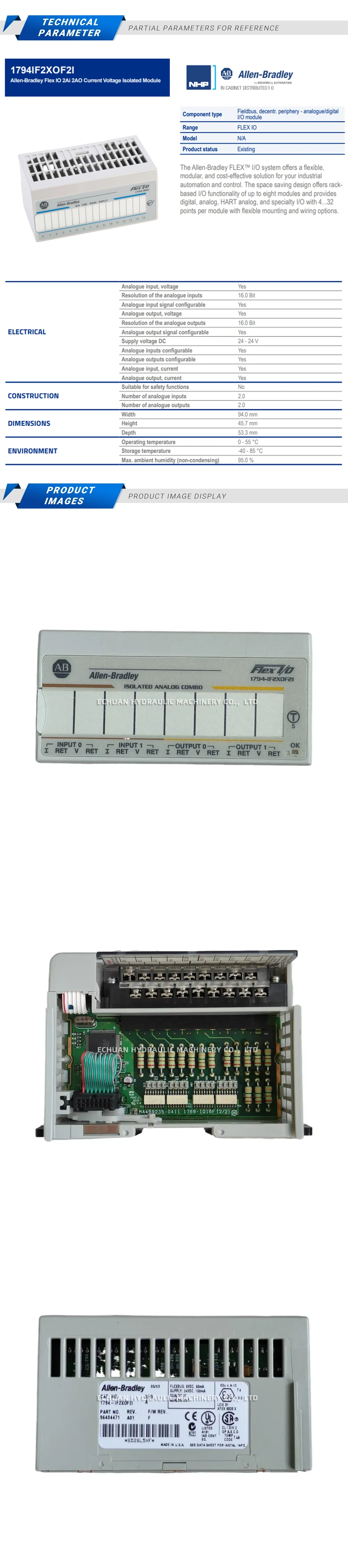

Allen-Bradley 1794-IF2XOF2I Module
Allen-Bradley 1794-IF2XOF2I FLEX I/O analog combination module featuring 2 inputs and 2 outputs, supporting both voltage and current signals for versatile industrial automation.
| Brand | Allen-Bradley |
|---|---|
| Model | 1794-IF2XOF2I Module |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/allen-bradley-1794-if2xof2i-module |
