Product Description

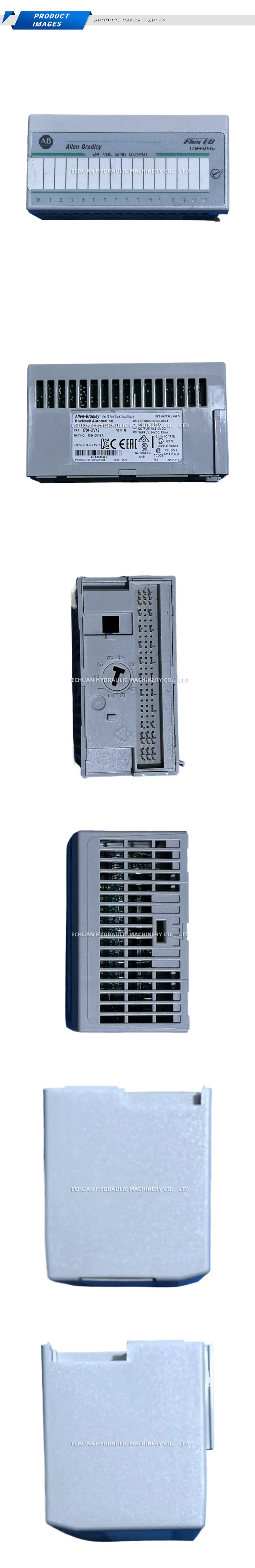

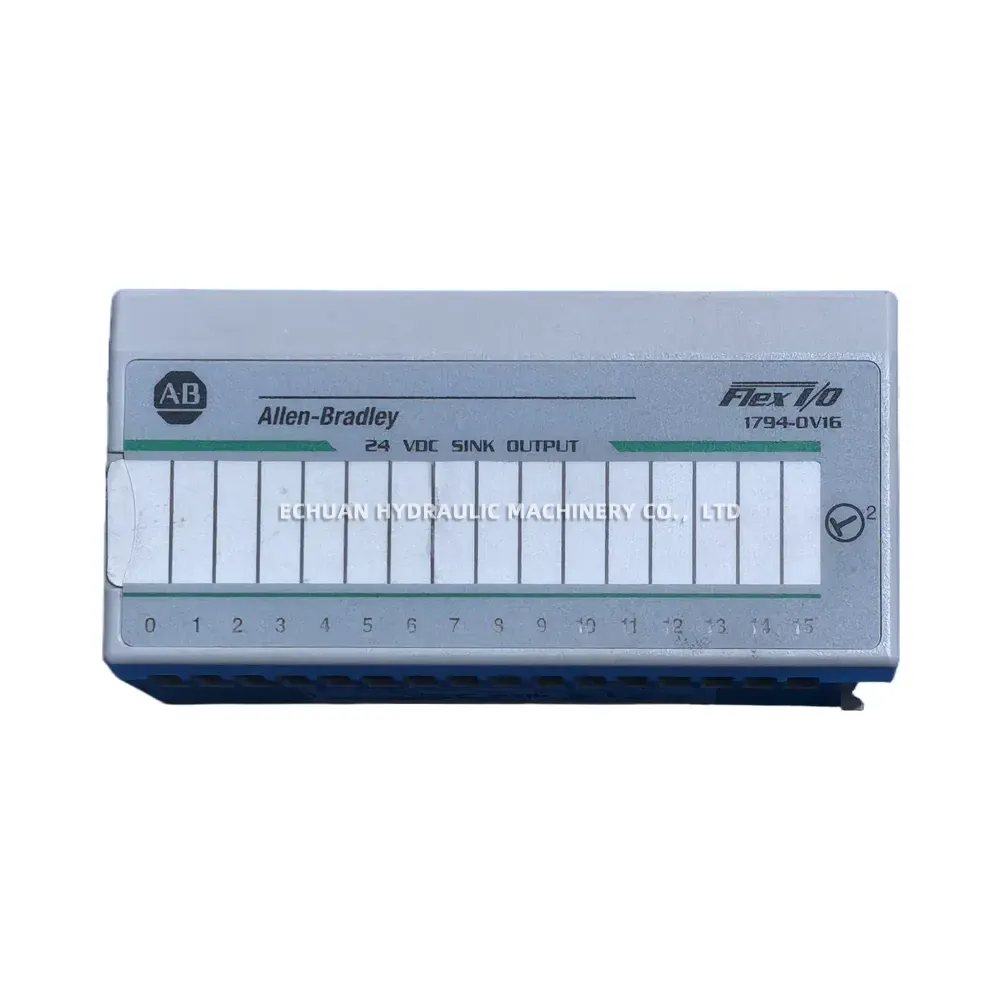

Allen-Bradley 1794-OV16 Flex 16 Point Digital Output Module
The Allen-Bradley 1794-OV16 by Rockwell Automation is a highly reliable Flex I/O digital output module designed to provide modular, cost-effective automation control. This unit features 16 points of 24V DC sinking output, allowing for seamless integration with a wide variety of industrial field devices. Operating within an output voltage range of 10 to 31.2V DC, it delivers a maximum current of 0.5A per point (Pilot Duty). Engineered for robust industrial applications, the 1794-OV16 operates efficiently in ambient temperatures ranging from -20°C to +55°C. It is backed by comprehensive global certifications, including UL, CE, EAC, CSA, and ATEX, making it fully rated for deployment in hazardous locations (Class I, Division 2). Its compact Flex I/O architecture significantly reduces wiring time, minimizes panel space, and maximizes overall system flexibility.

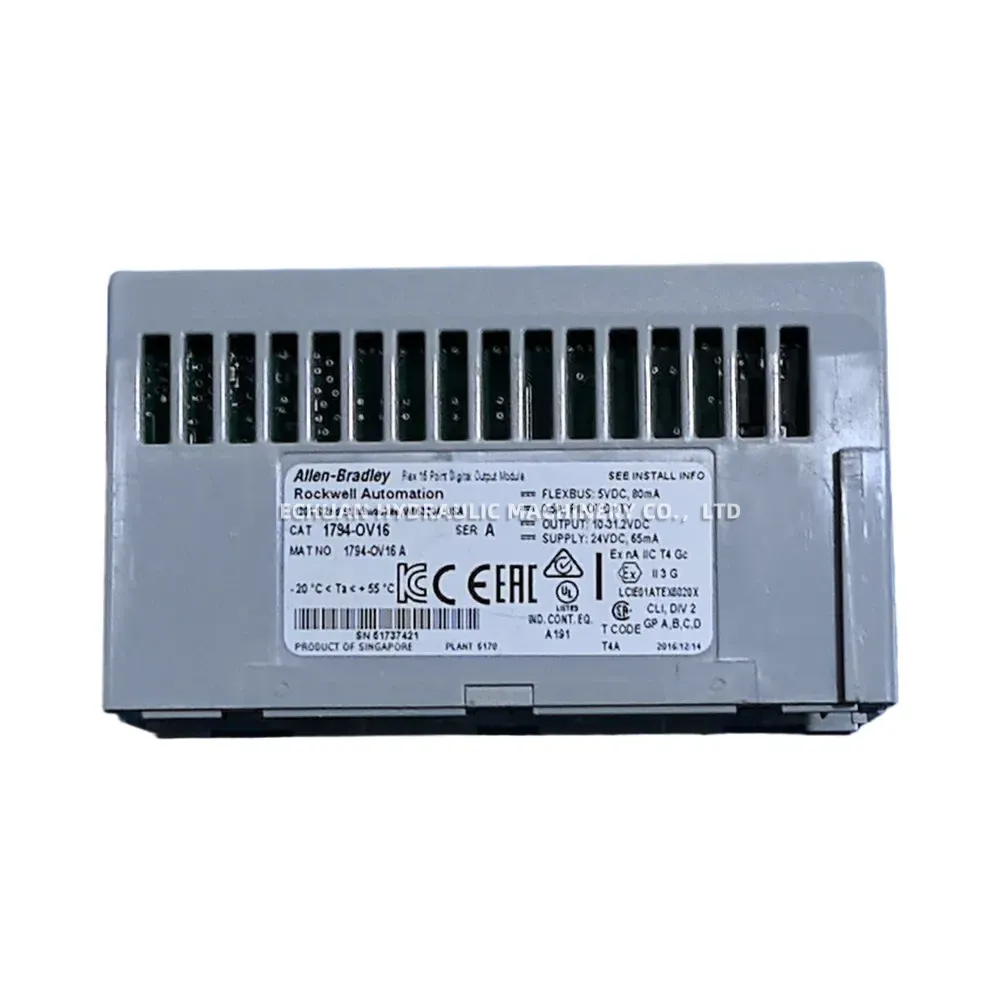

Technical Specifications:
- Brand: Allen-Bradley / Rockwell Automation
- Model/Catalog Number: 1794-OV16
- Module Type: Flex I/O Digital Output Module
- Number of Outputs: 16 Points (Sinking)
- Output Voltage Range: 10 – 31.2V DC
- Maximum Output Current: 0.5A per point (Pilot Duty)
- FlexBus Current Consumption: 80mA @ 5V DC
- External Supply Requirement: 65mA @ 24V DC
- Operating Ambient Temperature: -20°C to +55°C
- Certifications: UL Listed, CE, EAC, KC, CSA
- Hazardous Location Ratings: Class I, Div 2, Groups A, B, C, D (T4A) / ATEX Ex nA IIC T4 Gc (II 3 G)
Allen-Bradley 1794-OV16 Flex 16 Point Digital Output Module
Optimize your industrial control systems with the Allen-Bradley 1794-OV16 Flex I/O 16-Point Digital Output Module. Featuring 24V DC sinking outputs, a 10-31.2V DC voltage range, 0.5A per point capacity, and Class I Div 2 hazardous location ratings, this module delivers reliable, space-saving performance for demanding automation environments.
