Product Description

Allen-Bradley 22B-D012N104

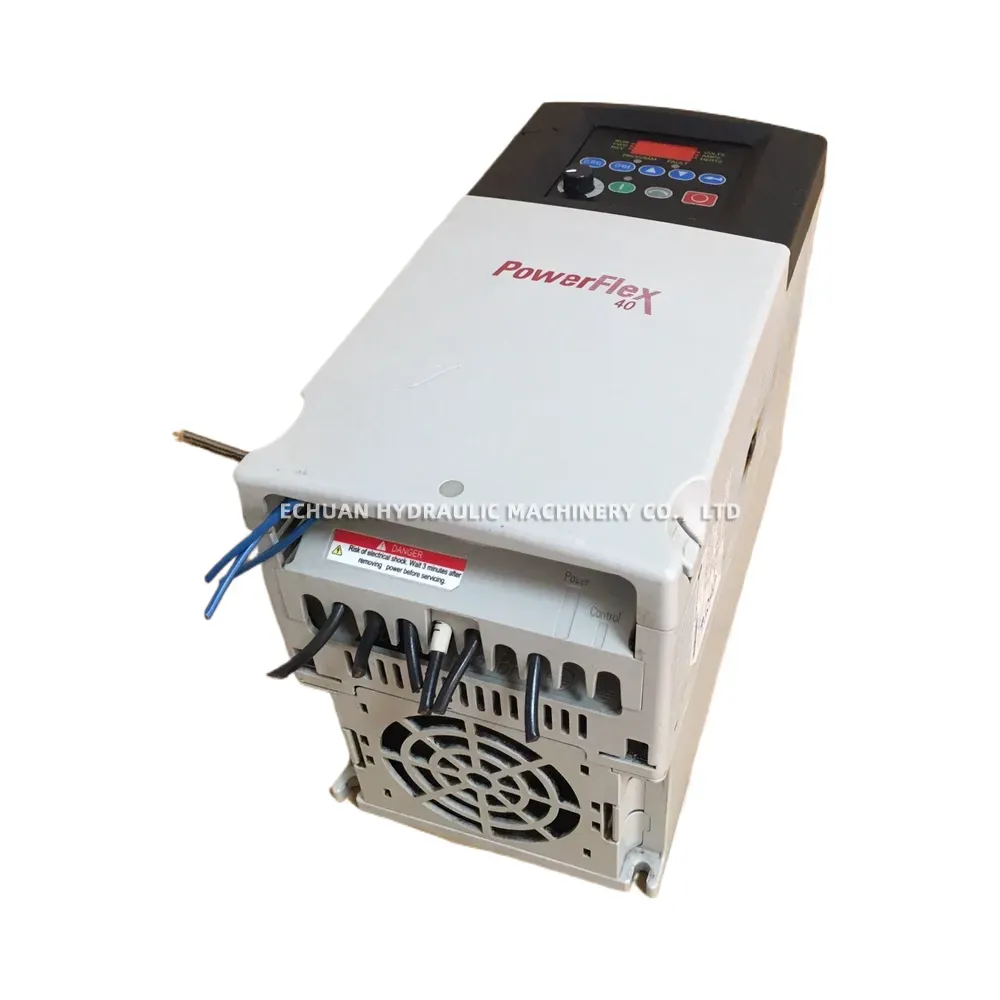

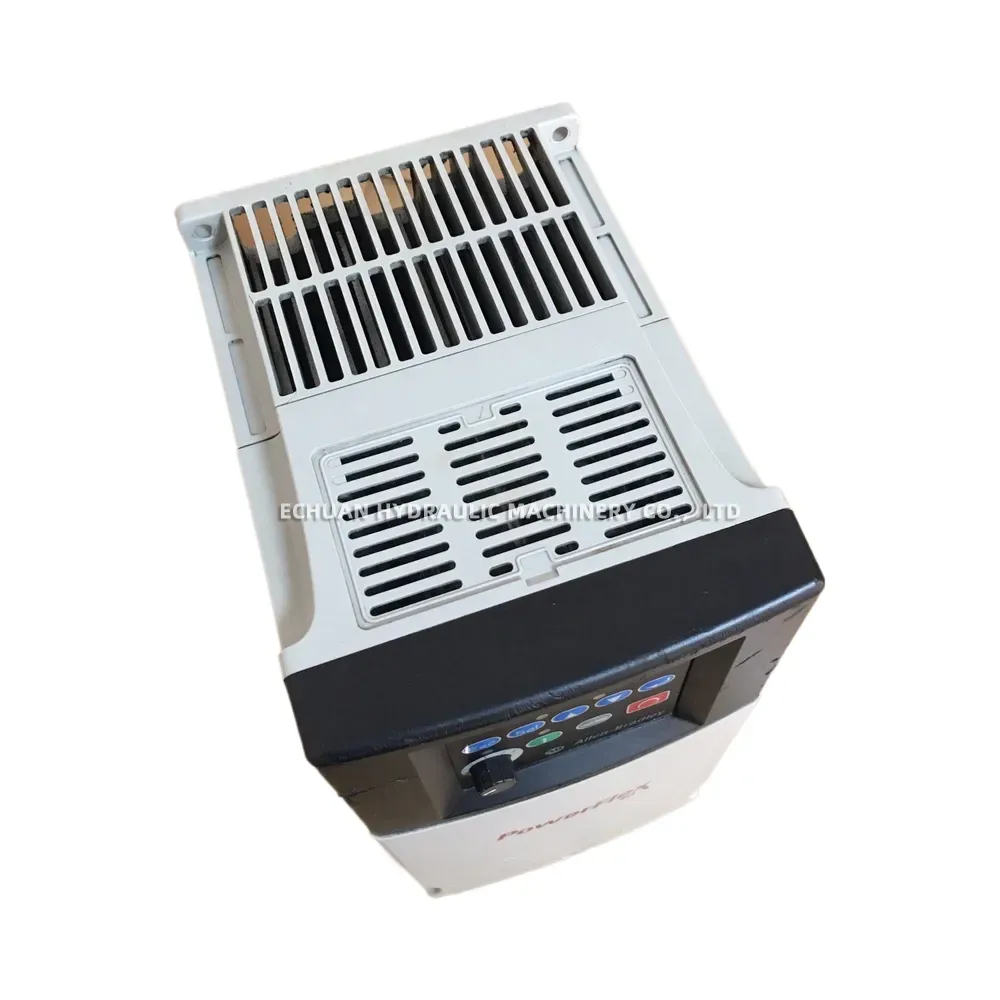

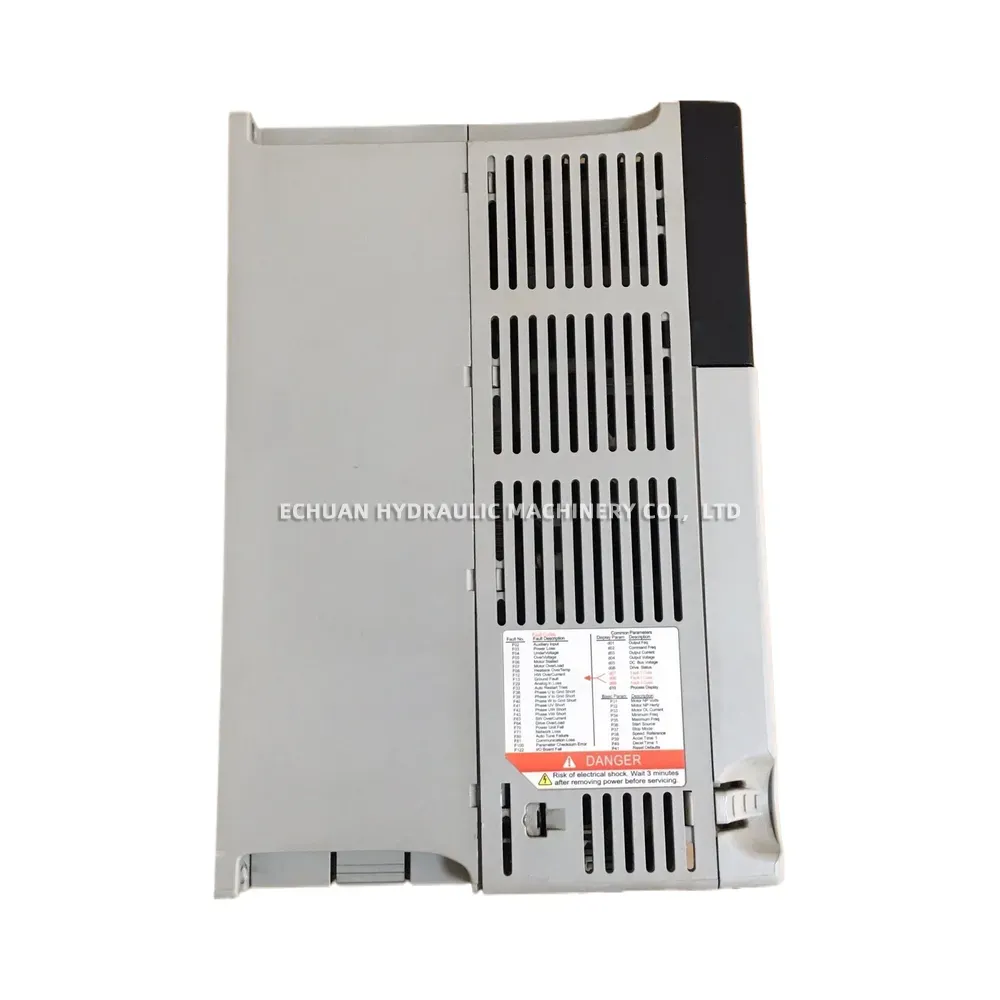

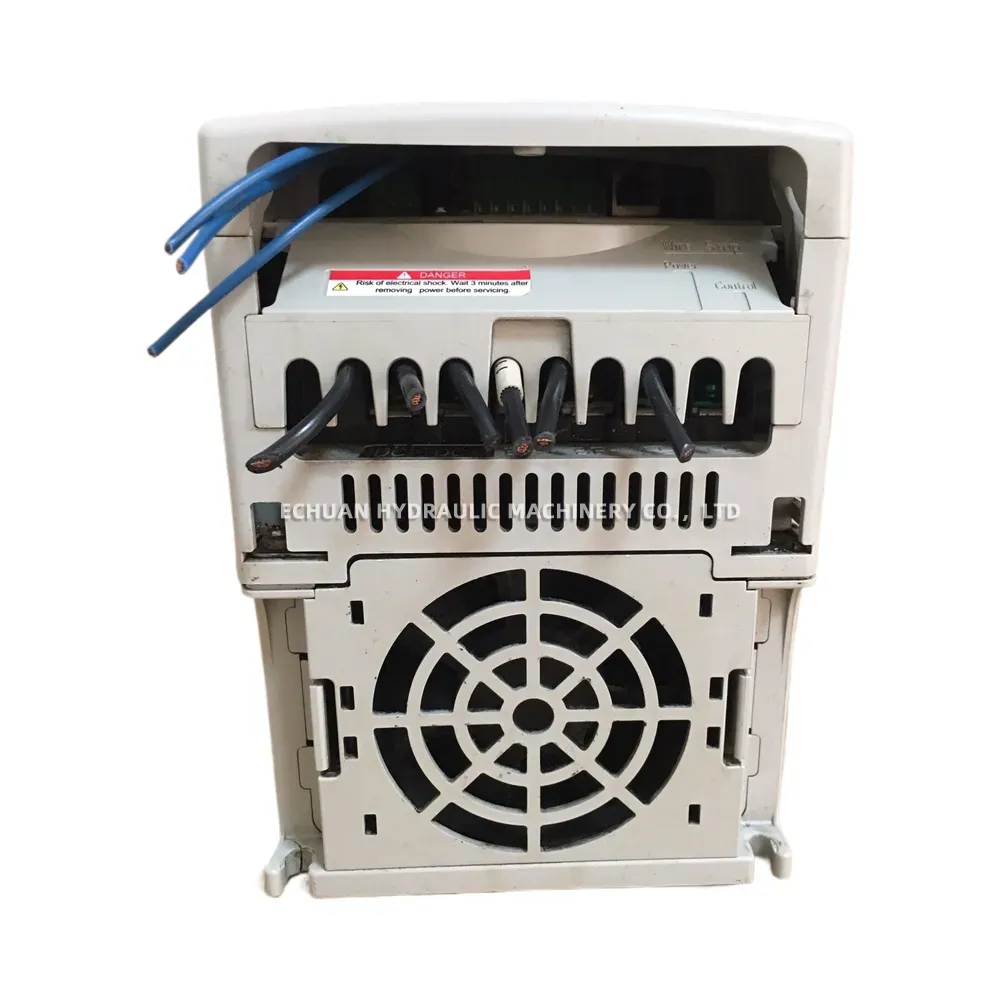

The Allen-Bradley 22B-D012N104 is a PowerFlex 40 series AC Drive, designed to provide efficient and reliable speed control for three-phase AC induction motors. This versatile Variable Frequency Drive (VFD) is engineered for flexibility, space savings, and ease of use in a wide range of industrial applications. It features Sensorless Vector Control for excellent torque and speed regulation, an integral keypad with a 4-digit LED display for simple configuration, and a built-in dynamic braking transistor for applications requiring rapid deceleration. Its compact size makes it an ideal solution for panel mounting, suitable for controlling fans, pumps, conveyors, and other machinery.

Technical Specifications:

  • Voltage Rating: 480V AC, 3-Phase

  • Output Current: 12.0 Amps

  • Power Rating: 7.5 HP (5.5 kW)

  • Enclosure: IP20, NEMA/UL Type Open, Panel Mount

  • Braking: Internal IGBT Dynamic Brake Transistor

  • Operator Interface: Fixed Keypad with LED Display

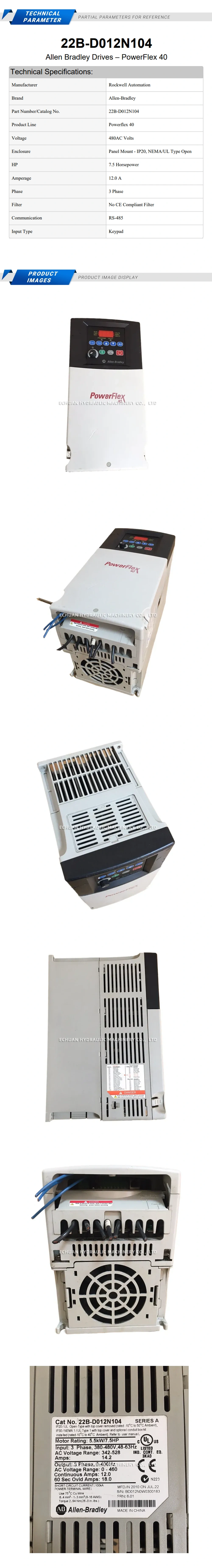

Allen-Bradley 22B-D012N104 Description

Allen-Bradley 22B-D012N104

Shop the Allen-Bradley 22B-D012N104 PowerFlex 40 AC Drive, rated for 7.5 HP (5.5 kW) and 480V AC 3-Phase input. This VFD provides reliable motor speed control with an integrated keypad, dynamic braking, and a compact IP20 panel mount design.

BrandAllen-Bradley
Model22B-D012N104
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/allen-bradley-22b-d012n104
