Product Description

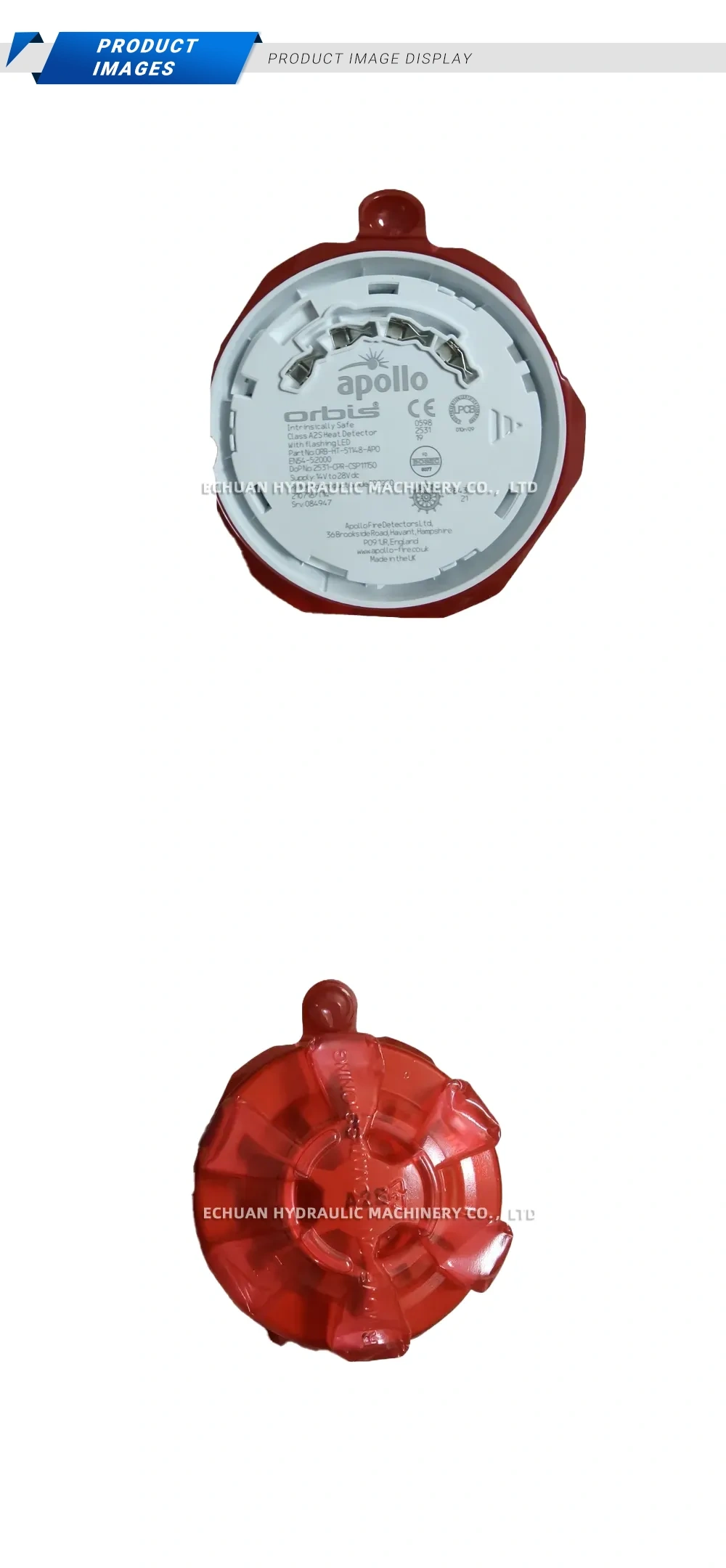

Apollo ORB-HT-51148-APO

The Apollo ORB-HT-51148-APO is a conventional heat detector from the Orbis series, designed for reliable fire detection in environments where smoke detectors are unsuitable. This Class A1R detector utilizes a rate-of-rise temperature sensing mechanism, which allows it to trigger an alarm based on a rapid increase in temperature, as well as a fixed upper temperature limit of 58°C. It is engineered for use in areas with normal temperature fluctuations, such as kitchens, boiler rooms, and loading bays. The detector features a modern, unobtrusive design and is compatible with the Orbis TimeSaver Base, which simplifies and speeds up the installation process. Its wide operating voltage and robust construction make it a versatile and dependable choice for a variety of conventional fire alarm systems.

Technical Specifications:

  • Model: ORB-HT-51148-APO

  • Detector Class: A1R (Rate-of-Rise)

  • Supply Voltage: 8.5 to 33 V DC

  • Static Response Temperature: 58°C

  • Operating Temperature: -40°C to +70°C

  • Alarm Current: 40mA at 24V DC

  • Approvals: EN 54-5

Apollo ORB-HT-51148-APO Description

Apollo ORB-HT-51148-APO

Shop the Apollo ORB-HT-51148-APO, a reliable Orbis Class A1R conventional rate-of-rise heat detector. Ideal for fast fire detection in environments with fluctuating temperatures. EN 54-5 approved.

BrandApollo
ModelORB-HT-51148-APO
CategoryElectrical
