Product Description

APOLLO ORB-OP-42001-MAR

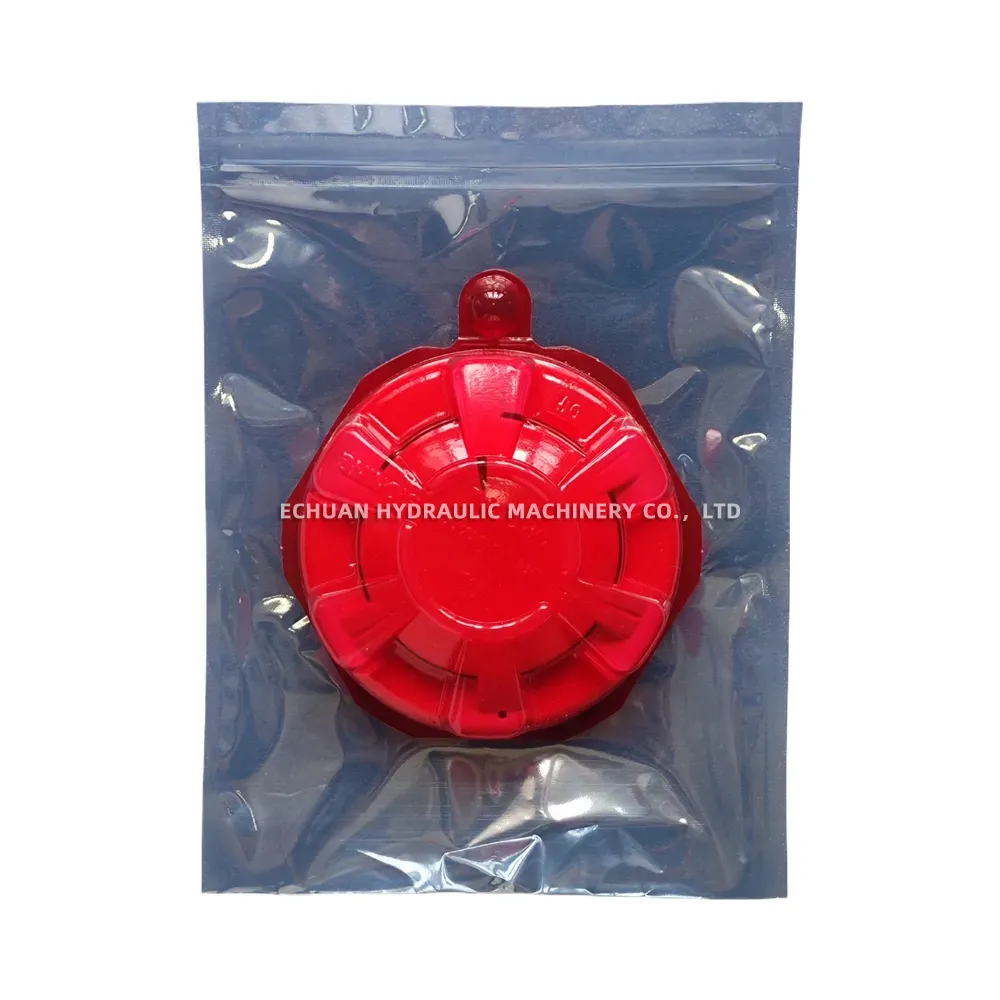

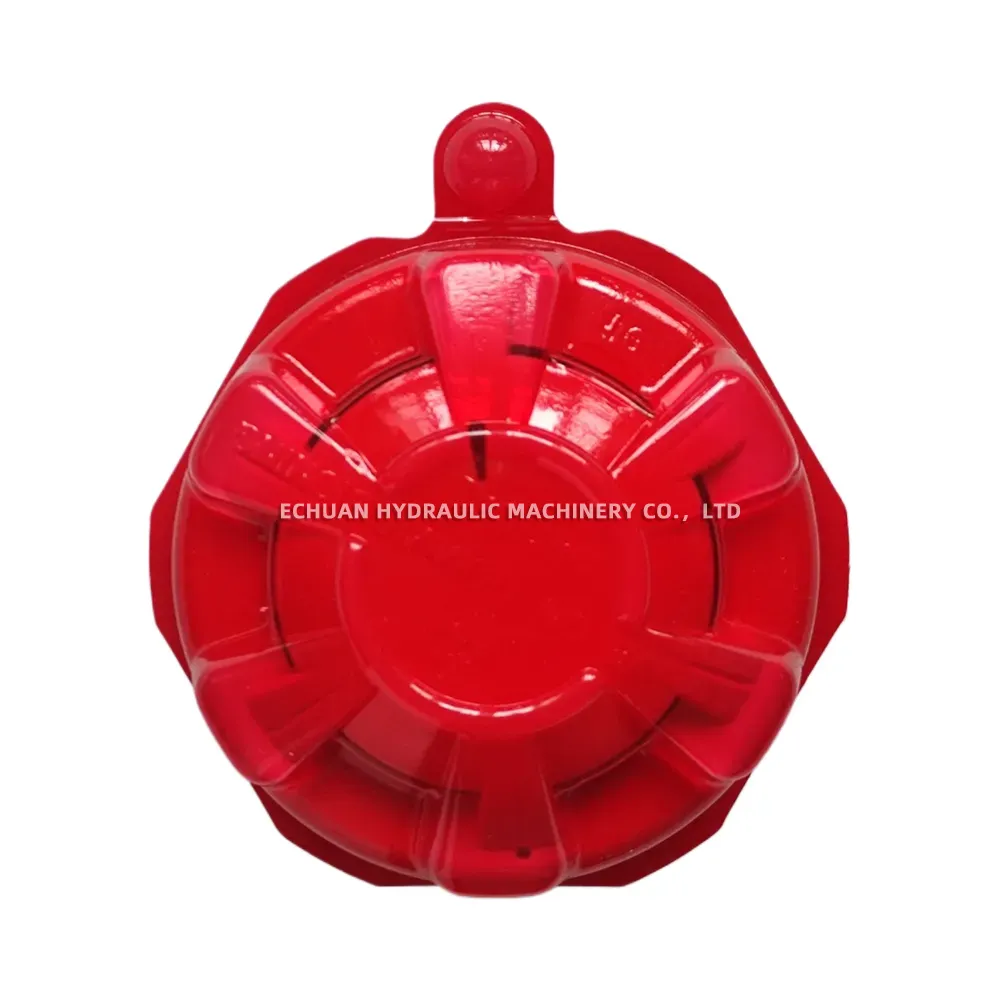

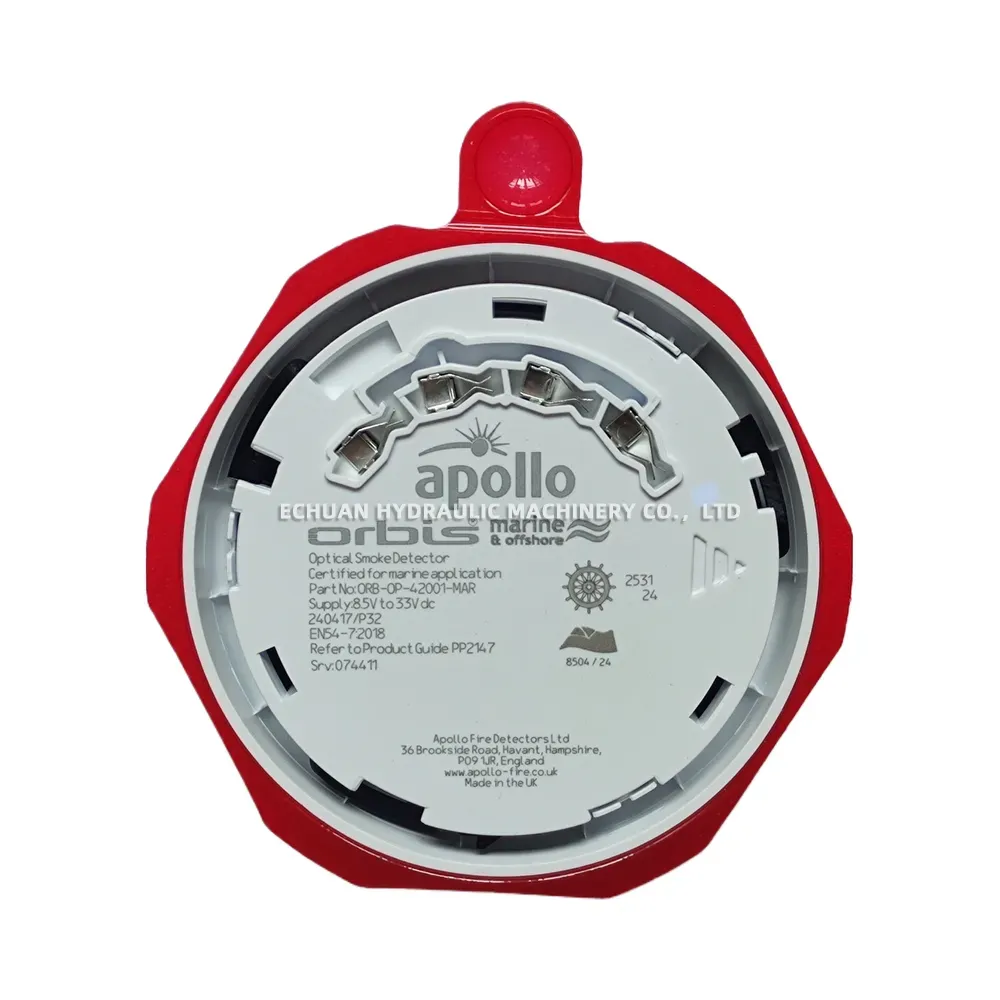

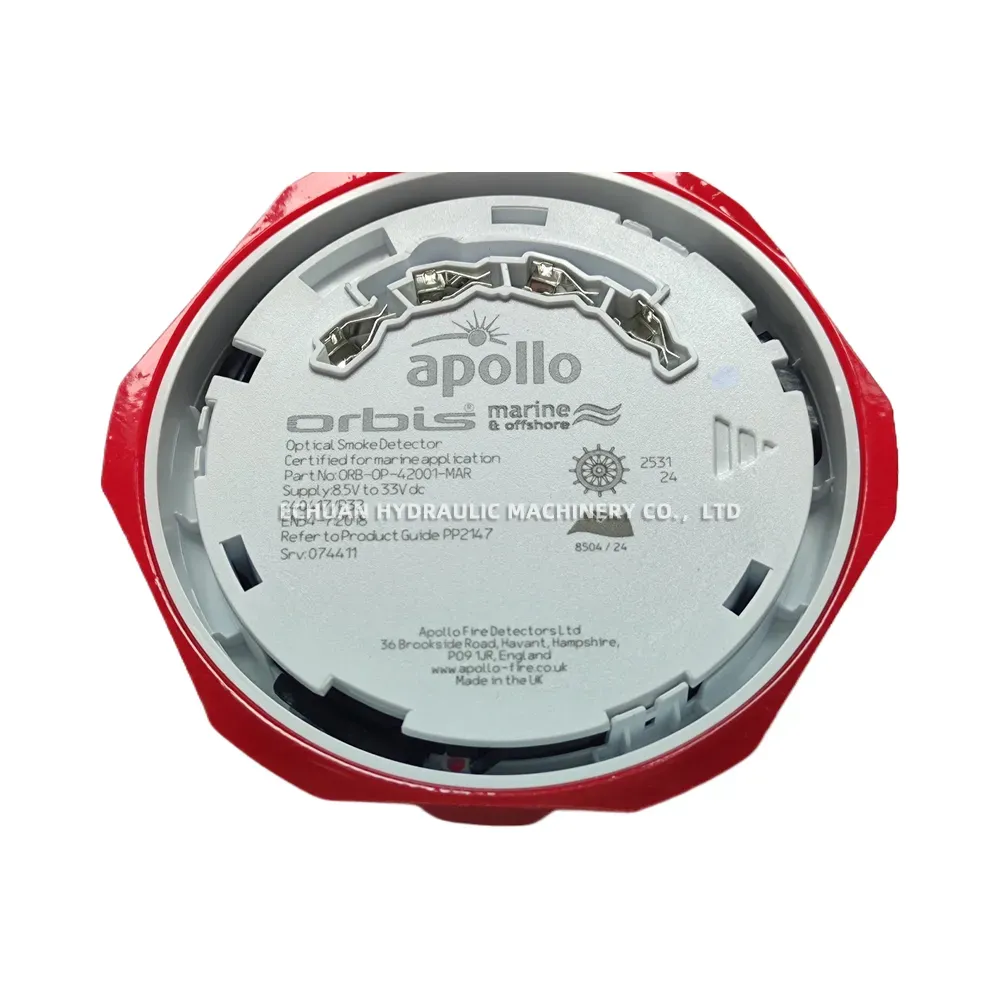

The APOLLO ORB-OP-42001-MAR is an Orbis Marine Optical Smoke Detector, specifically engineered for reliable fire detection in demanding marine environments. It utilizes the well-proven optical smoke sensing technology (light scatter principle) to effectively detect a wide range of fires, particularly slow-burning, smouldering fires. This detector incorporates advanced features such as drift compensation to maintain sensitivity over time and reduce false alarms, and DirtAlert® technology to indicate when cleaning is required. Its robust design ensures performance even in challenging conditions, and it is approved for use in marine applications, meeting stringent international standards. The FasTest® feature allows for quick and efficient maintenance testing, reducing on-site time.

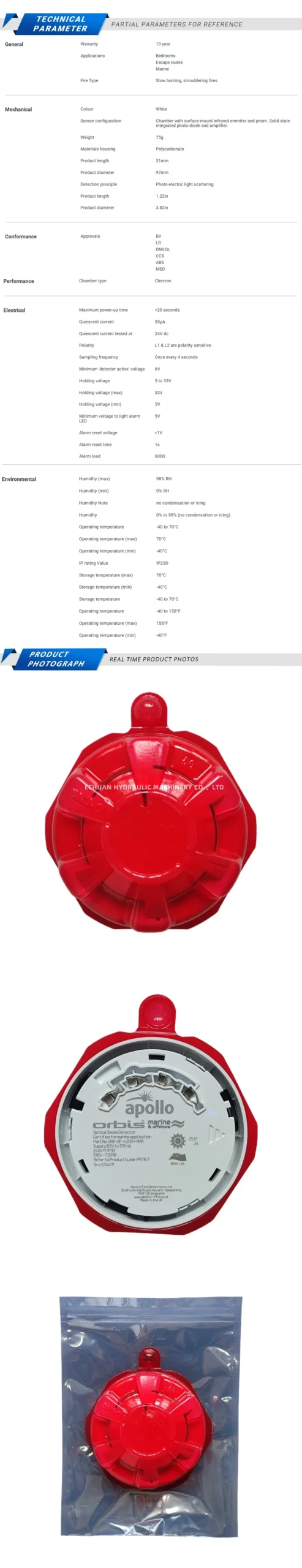

Technical Specifications:

Model: ORB-OP-42001-MAR
Detection Principle: Photo-electric detection of light scattered by smoke particles
Application: Marine environments
Supply Voltage: 8.5 – 33V DC
Quiescent Current (average @24V): 55µA
Alarm Current (@24V, panel limited): 45mA
Alarm Indication: Red Light Emitting Diode (LED)
Operating Temperature: -40°C to +70°C (no condensation or icing)
Humidity: 0% to 98% Relative Humidity (non-condensing)
IP Rating (with ORB-MB-00001-MAR base): IP23D
Approvals: MED, LR, ABS, DNV-GL, CCS, KR
Housing Material: White Polycarbonate V-0 rated to UL94
Key Features: Drift compensation, DirtAlert® (contamination monitoring), FasTest® (maintenance testing), Flashing LED option
Dimensions (with ORB-MB-00001-MAR base): 100mm (diameter) x 50mm (height)
Weight (with ORB-MB-00001-MAR base): 100g
