Product Description

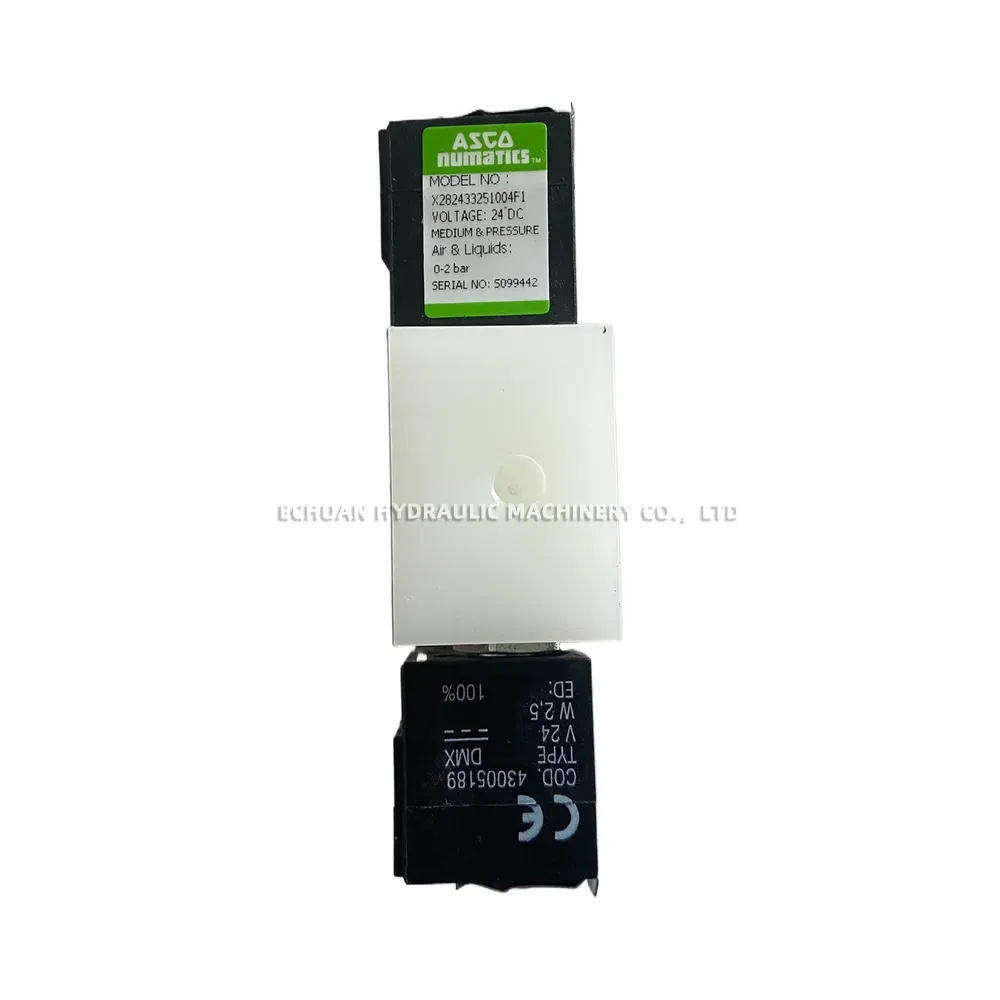

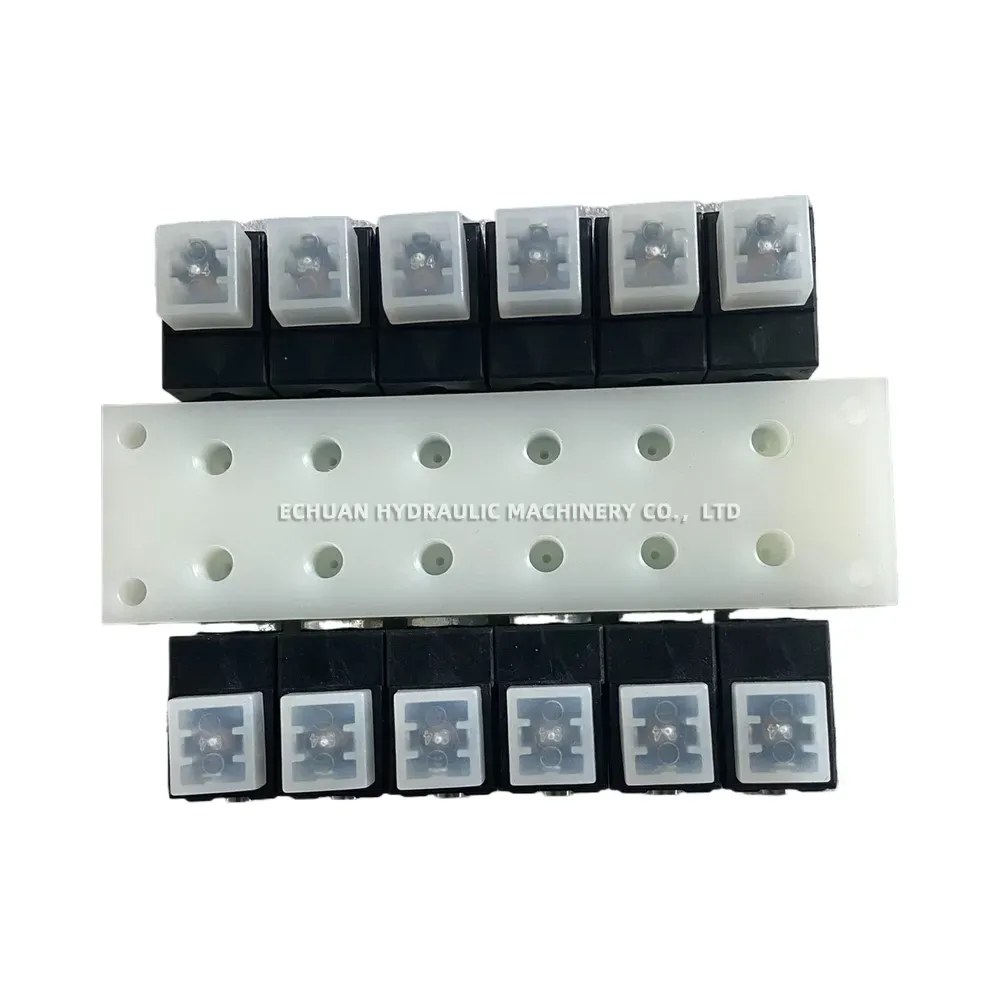

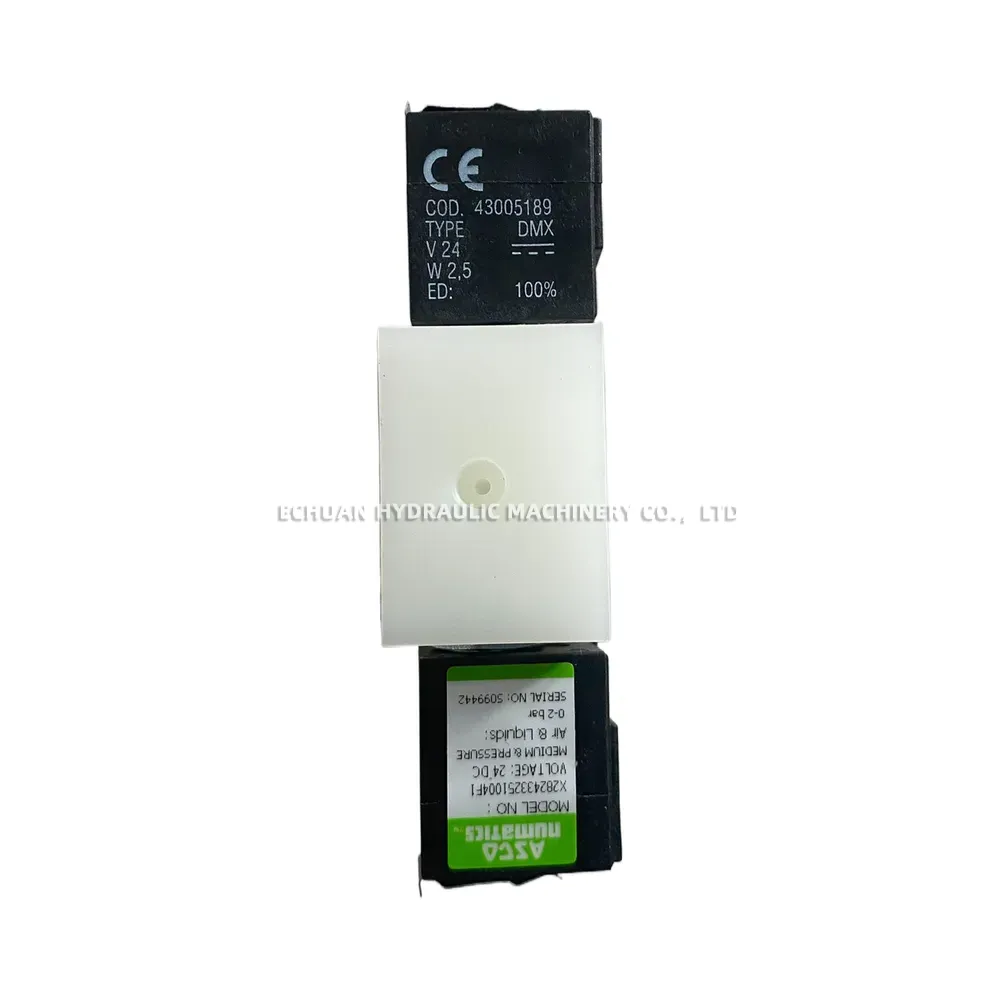

ASCO X282433251004F1 Pilot Valve Box
The ASCO X282433251004F1 is a pilot valve box specifically designed for the reliable remote control of ASCO pulse jet diaphragm valves, commonly used in dust collector systems. This unit integrates four solenoid pilot valves into a single robust aluminium enclosure, simplifying wiring, installation, and maintenance. It provides a centralized point of control for multiple pulse valves, enhancing system efficiency and operational convenience.
Technical Specifications:
- Series: ASCO Series 282
- Product Type: Pilot Valve Box Assembly
- Number of Pilot Valves: 4
- Enclosure Material: Aluminium
- Coil Voltage: 24V DC
- Electrical Connection: Internal Terminal Strip
- Common Pilot Exhaust Connection: G 1/4″
- Pilot Valve Connection: G 1/4″
- Ingress Protection: IP65 / NEMA 4, 4X
- Operating Pressure: 0.5 to 7.5 bar (7 to 109 psi)
- Fluid: Air or Neutral Gas, filtered
- Temperature Range (Ambient & Fluid): -20°C to +60°C (-4°F to +140°F)
ASCO X282433251004F1
Model:ASCO X282433251004F1
| Brand | ASCO |
|---|---|
| Model | X282433251004F1 |
| Part No. | ASCO X282433251004F1 |
| Category | Hydraulic valves |
