Product Description

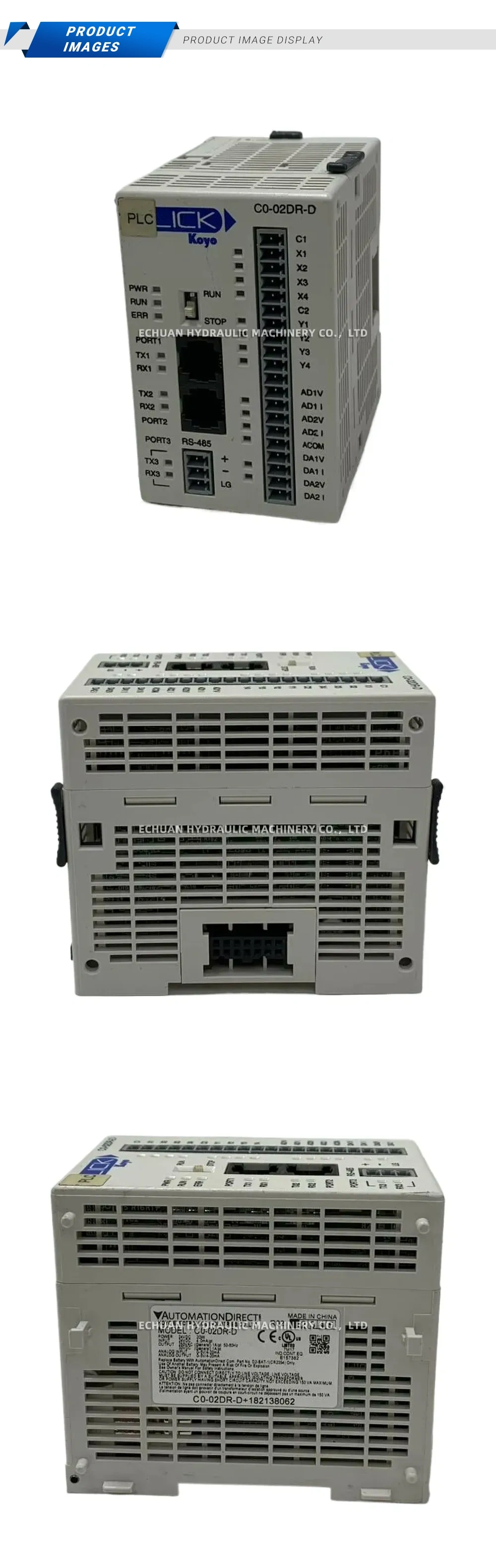

Automation Direct C0-02DR-D
The Automation Direct C0-02DR-D is a standalone Micro PLC CPU from the CLICK series, designed for simplicity and value in small-scale automation applications. This compact unit integrates both the CPU and I/O into a single module, making it an excellent choice for projects where space and budget are key considerations. It features 8 DC inputs that can be configured for sinking or sourcing logic, and 6 relay outputs for switching various AC or DC loads. Powered by 12-24 VDC and programmed via a standard RS-232 port, the C0-02DR-D offers a straightforward and reliable control solution without the complexity of expandable systems.
Technical Specifications:
- Input Type: 8-point, 24 VDC, sinking/sourcing
- Output Type: 6-point, Relay, Form A (SPST), 1A/point
- Power Supply Requirement: 12-24 VDC
- Program Memory: 8k steps
- Communication Port: 1 x RS-232 (RJ12)
- Real-Time Clock/Calendar: Yes
- Expandable: No
Automation Direct C0-02DR-D
Discover the Automation Direct C0-02DR-D CLICK Micro PLC CPU, a compact and cost-effective controller with 8 DC inputs, 6 relay outputs, and a 12-24 VDC power supply. Ideal for simple, standalone automation tasks.
| Brand | Automation Direct |
|---|---|
| Model | C0-02DR-D |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/automation-direct-c0-02dr-d |
