Product Description

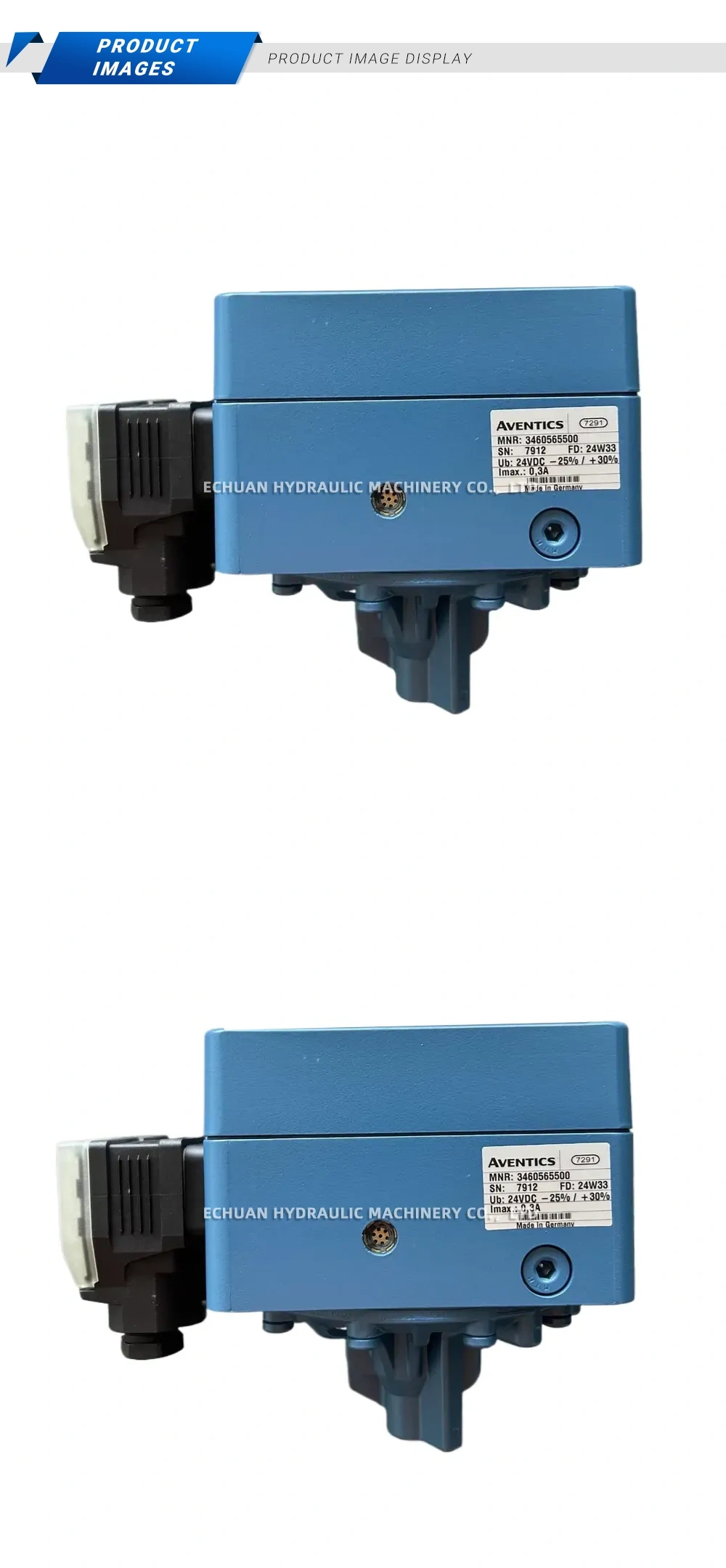

Aventics 3460565500
The Aventics 3460565500 is a high-precision electronic pressure switch from the PE5 series, designed for reliable pressure monitoring in pneumatic systems. It features a clear, 3-digit, 7-segment LED display that can be rotated for optimal readability in any mounting position. This compact sensor offers two programmable PNP switching outputs and an M8 electrical connection, making it ideal for a wide range of industrial automation applications where accurate pressure control is critical. Its robust design ensures durability and consistent performance in demanding environments.
Technical Specifications:
- Series: PE5
- Operating Pressure Range: -1 to 10 bar
- Switching Output: 2x PNP, programmable (NO/NC)
- Electrical Connection: M8 connector, 4-pin
- Operating Voltage: 12 – 30 V DC
- Display: 3-digit, 7-segment LED display
- Protection Class: IP65

Aventics 3460565500
Shop the Aventics 3460565500 PE5 series pressure switch, a high-precision sensor for reliable pressure monitoring in pneumatic systems. Features a clear digital display and dual programmable PNP outputs.
