Product Description

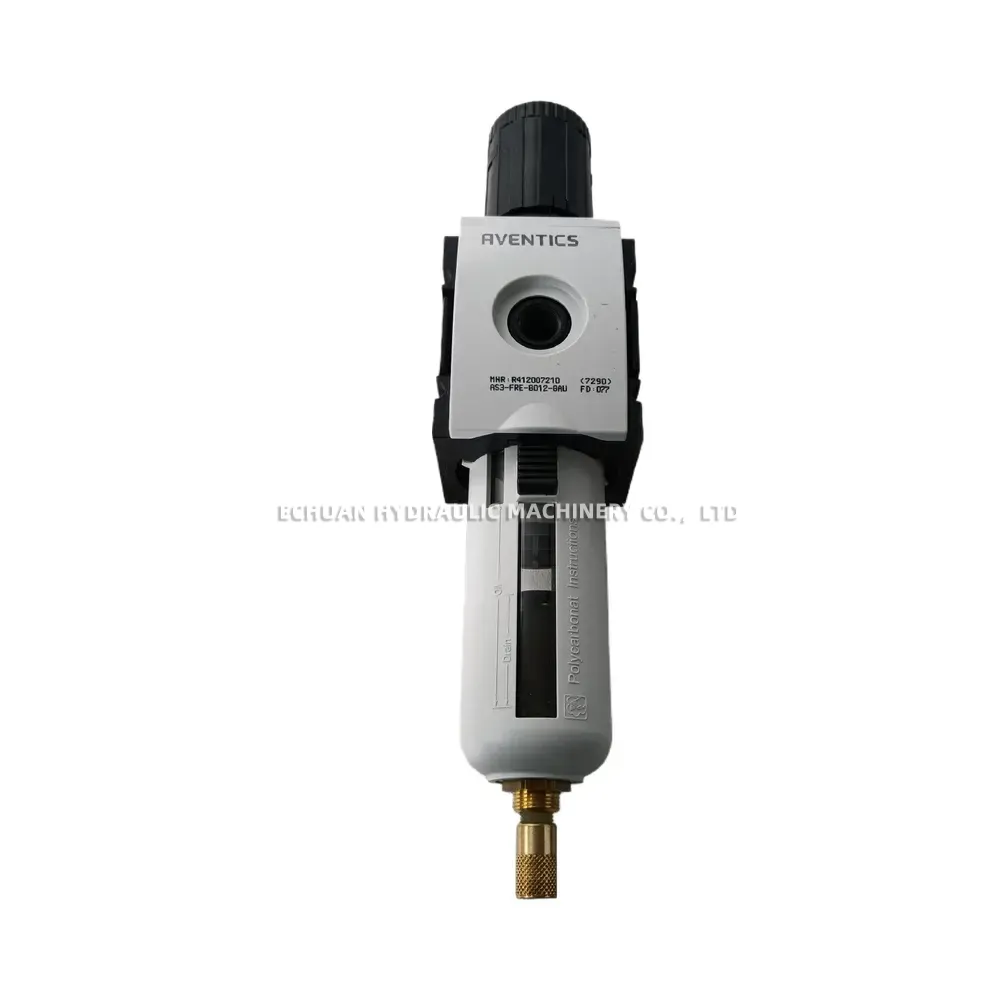

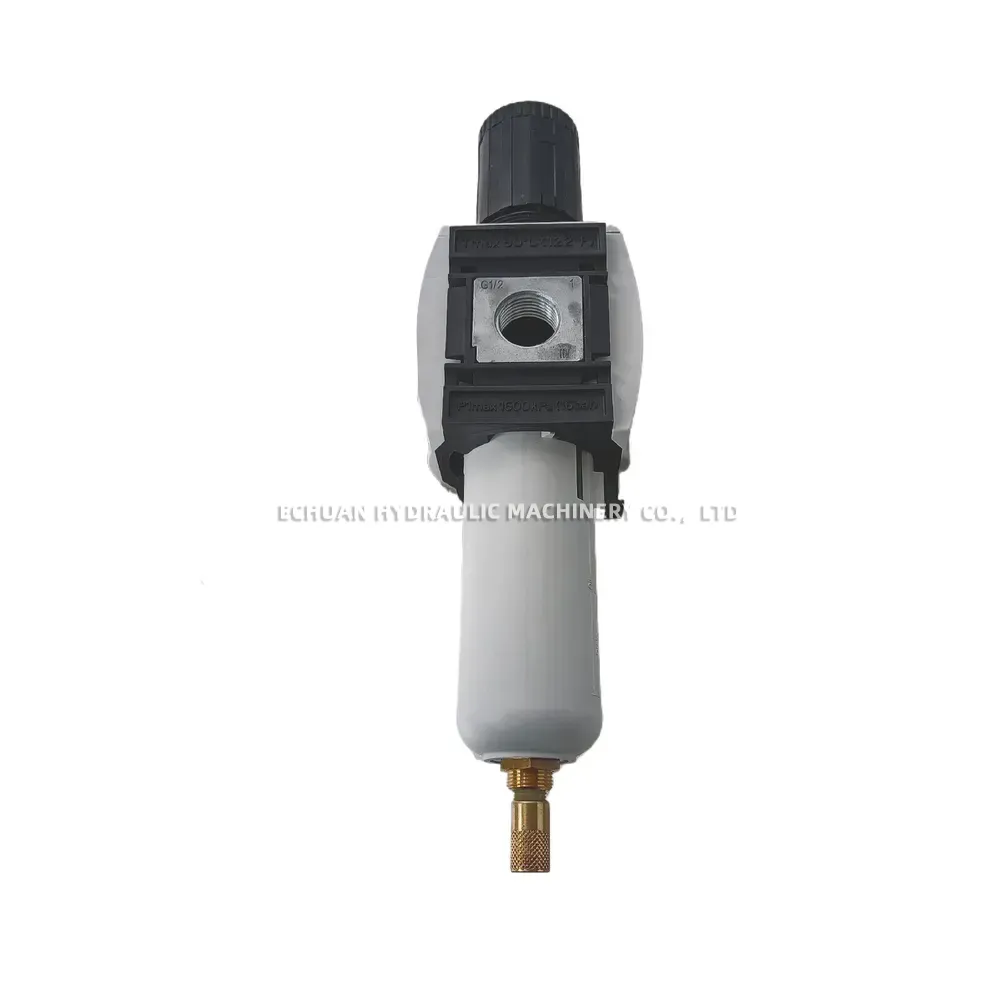

AVENTICS AS3-FRE-G012-GAU Pneumatic Filter Regulator Valve
The AVENTICS AS3-FRE-G012-GAU (Material Number: R412007210) is a premium pneumatic filter pressure regulator valve from the highly reliable AS3 series. Expertly engineered for optimal compressed air preparation, this unit features a durable polycarbonate bowl equipped with a manual condensate drain. It delivers precise pneumatic control with an adjustable secondary pressure range of 0.5 to 8 bar (7 to 116 psi) and is built to handle a maximum supply pressure of up to 15 bar (1500 kPa). Complete with standard G1/2 threaded port connections and a dedicated port for a pressure gauge, the AS3-FRE-G012-GAU ensures consistent performance, easy installation, and excellent air quality for your industrial automation systems.
Technical Specifications:
- Brand: AVENTICS
- Model Number: AS3-FRE-G012-GAU
- Material Number (MNR): R412007210
- Product Type: Filter Pressure Regulator Valve (FRE)
- Port Connection Size: G 1/2
- Maximum Operating Pressure (Pmax): 15 bar / 1500 kPa
- Pressure Adjustment Range: 0.5 – 8 bar / 7 – 116 psi
- Maximum Temperature (Tmax): 50°C / 122°F
- Bowl Material: Polycarbonate
- Drain Type: Manual Drain
AVENTICS AS3-FRE-G012-GAU Pneumatic Filter Regulator Valve
Shop the AVENTICS AS3-FRE-G012-GAU (R412007210) Pneumatic Filter Regulator Valve. Features G1/2 ports, 0.5-8 bar adjustable pressure, 15 bar max pressure, and a polycarbonate bowl with manual drain for reliable compressed air preparation.
