Product Description

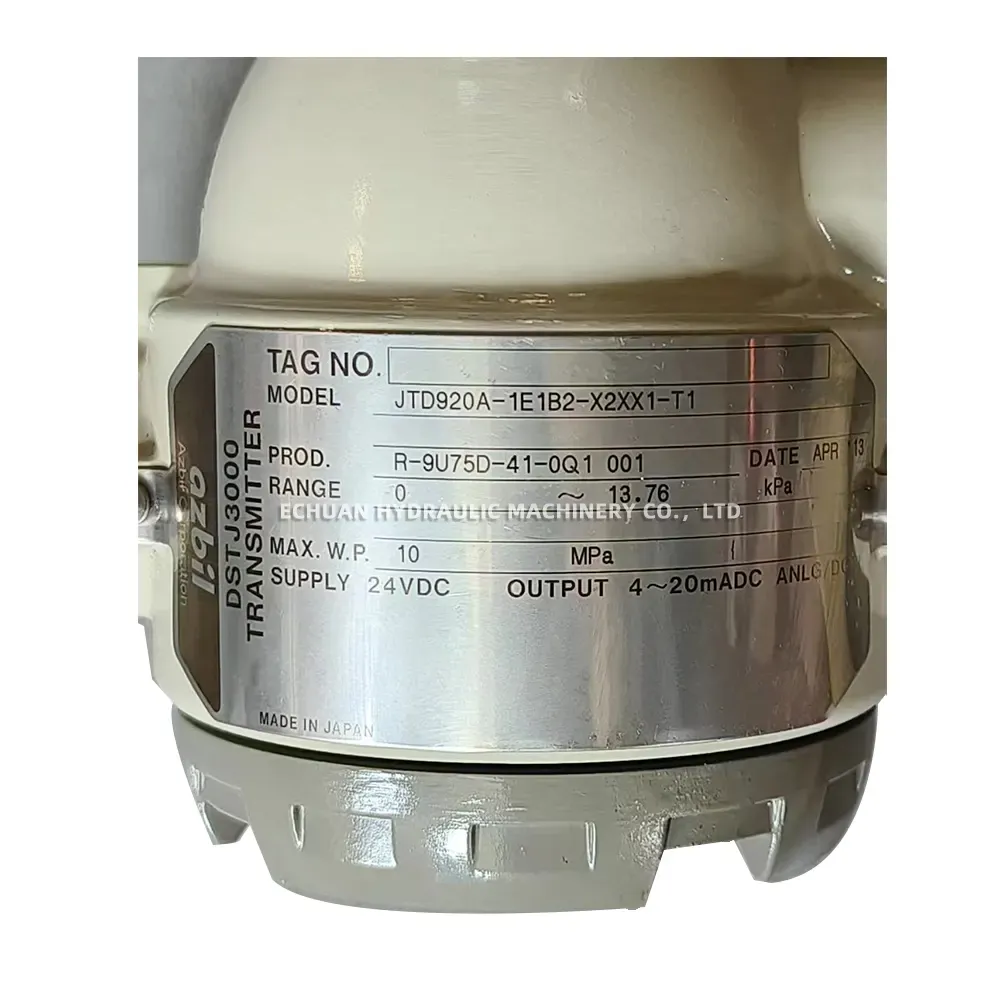

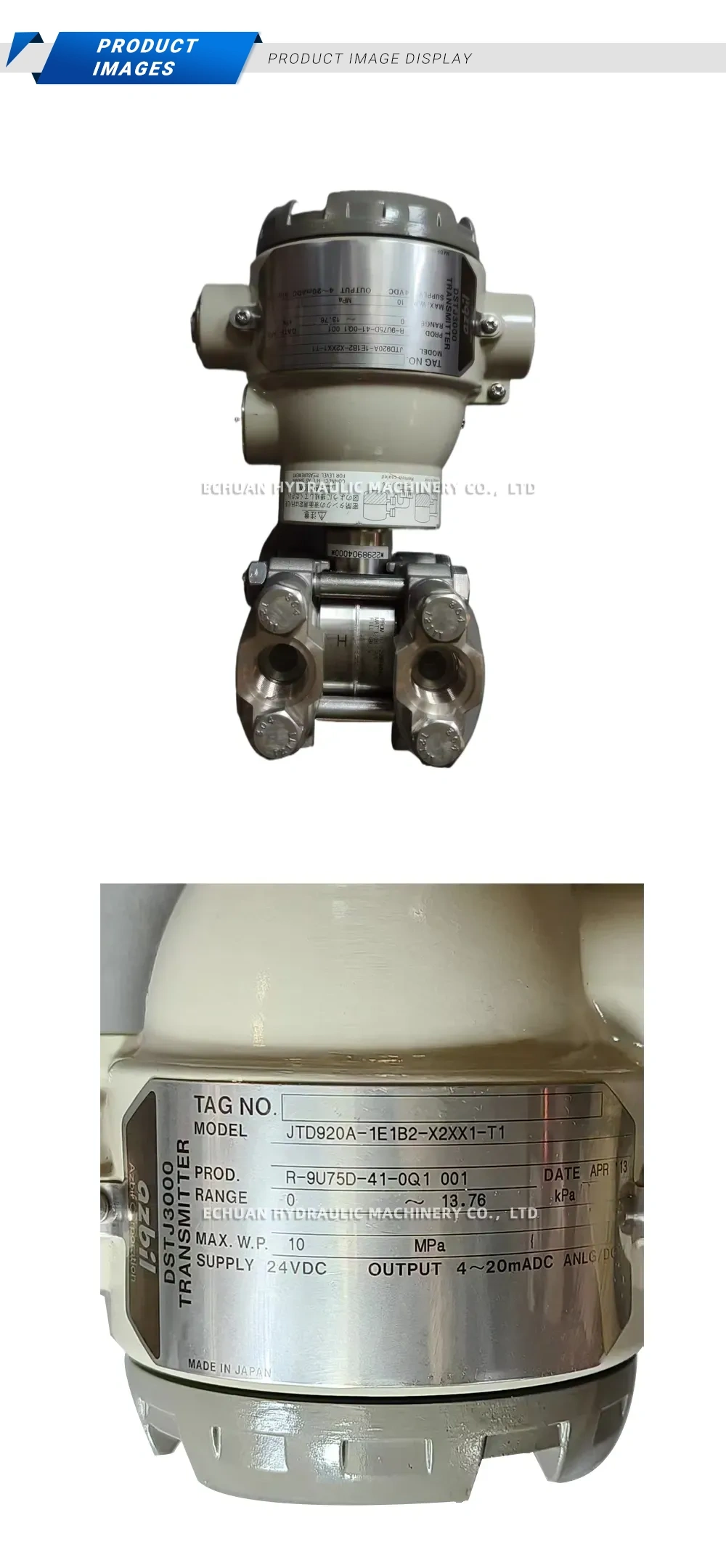

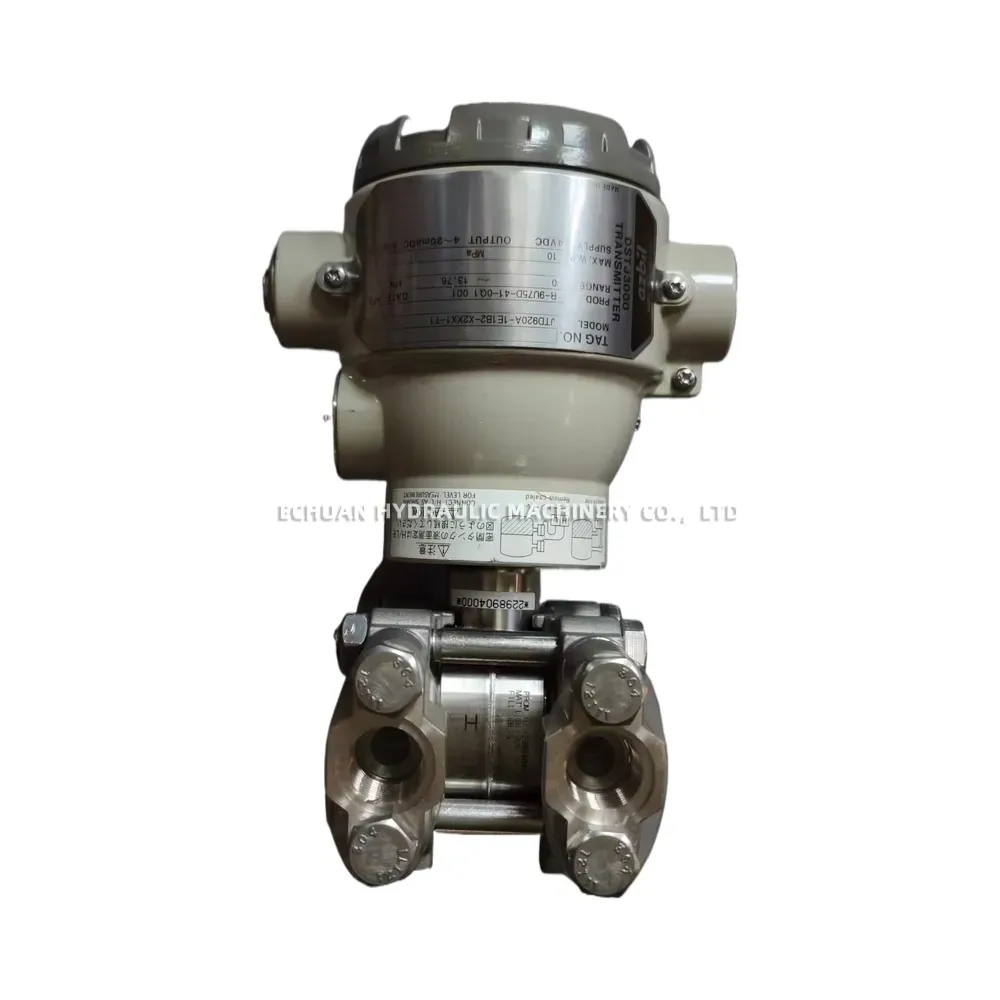

Azbil JTD920A-1E1B2-X2XX1-T1 Differential Pressure Transmitter
The Azbil JTD920A-1E1B2-X2XX1-T1 is a highly accurate and reliable differential pressure transmitter belonging to the advanced DSTJ3000 series. Engineered for rigorous industrial applications, it is expertly designed to measure differential pressure, flow, and liquid levels, making it particularly well-suited for level measurement in closed tanks. This Japanese-made transmitter offers a precise measurement range of 0 to 13.76 kPa and safely operates under a maximum working pressure of 10 MPa. Operating on a 24 VDC power supply, it provides a standard 4-20 mA DC analog output for seamless integration into existing industrial control and monitoring systems.
Technical Specifications:
- Brand: Azbil
- Model: JTD920A-1E1B2-X2XX1-T1
- Product Series: DSTJ3000
- Measurement Range: 0 to 13.76 kPa
- Maximum Working Pressure: 10 MPa
- Power Supply: 24 VDC
- Output Signal: 4 to 20 mA DC (Analog/Digital)
- Process Connections: Flanged with manifold block
- Country of Origin: Made in Japan
Azbil JTD920A-1E1B2-X2XX1-T1 Differential Pressure Transmitter
Shop the Azbil JTD920A-1E1B2-X2XX1-T1 Differential Pressure Transmitter (DSTJ3000 Series). Features a 0-13.76 kPa range, 4-20 mA DC output, and 10 MPa max working pressure. Reliable Japanese engineering ideal for industrial pressure and closed-tank liquid level measurement.
| Brand | Azbil |
|---|---|
| Model | JTD920A-1E1B2-X2XX1-T1 |
| Part No. | 1057504155774 |
| Category | Electrical |
