Product Description

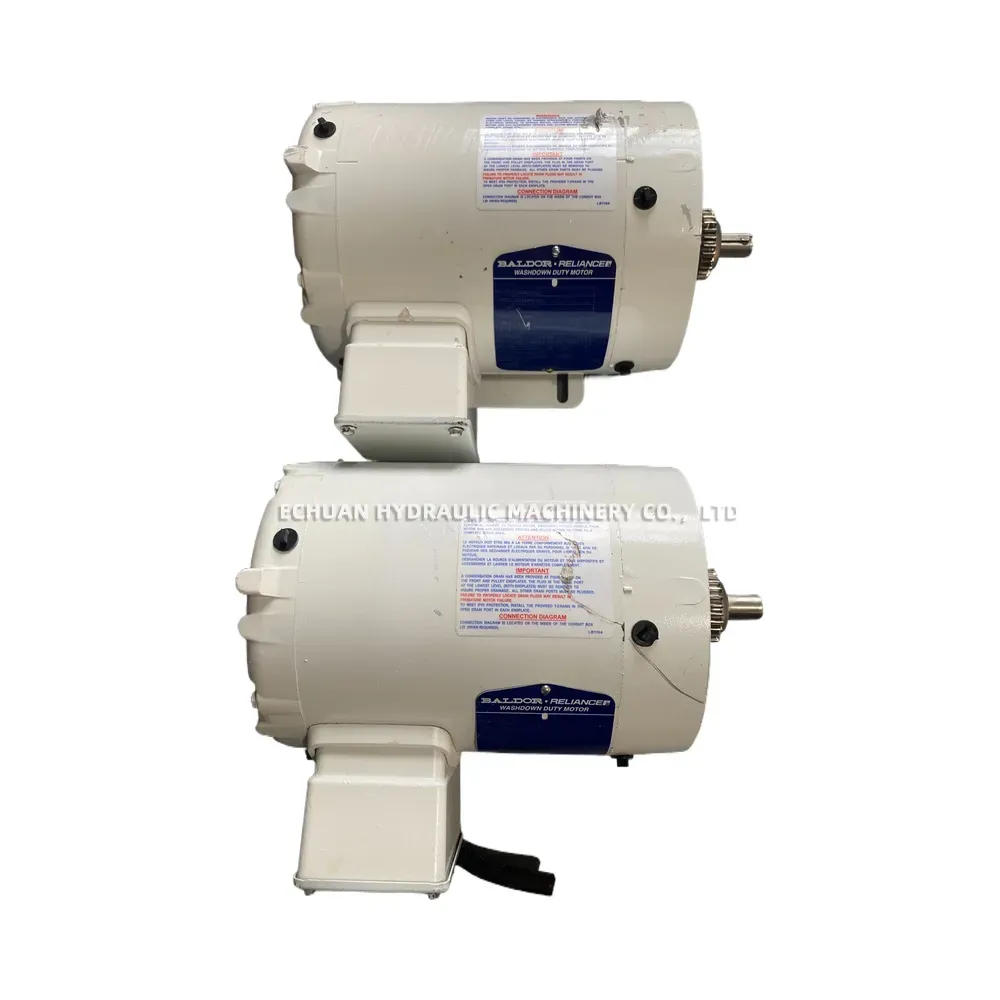

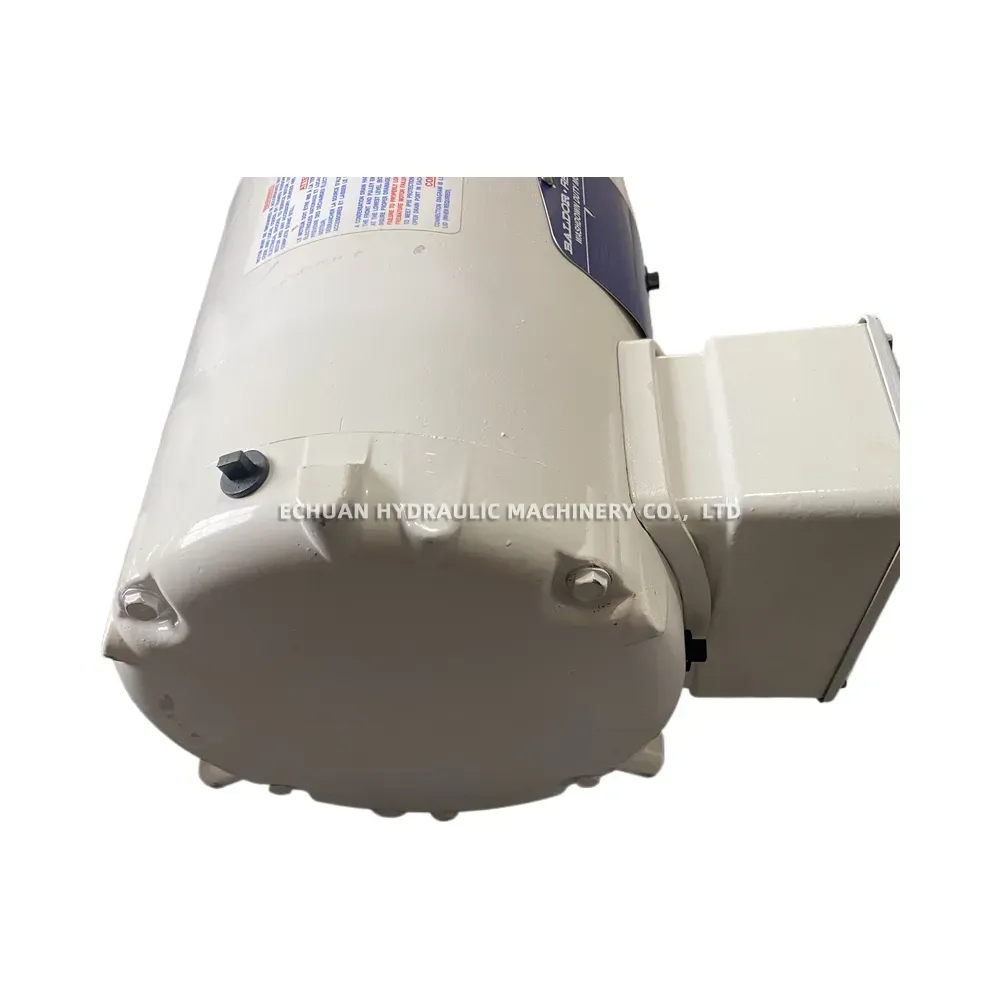

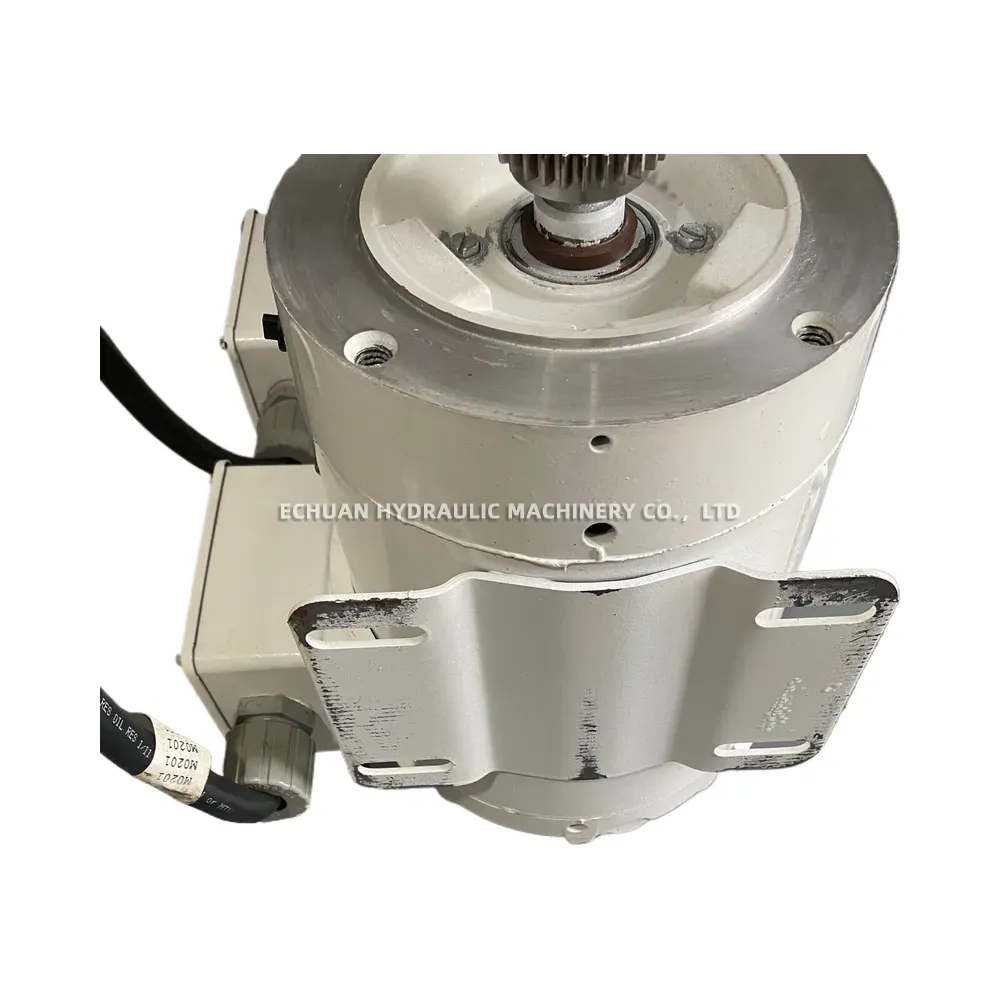

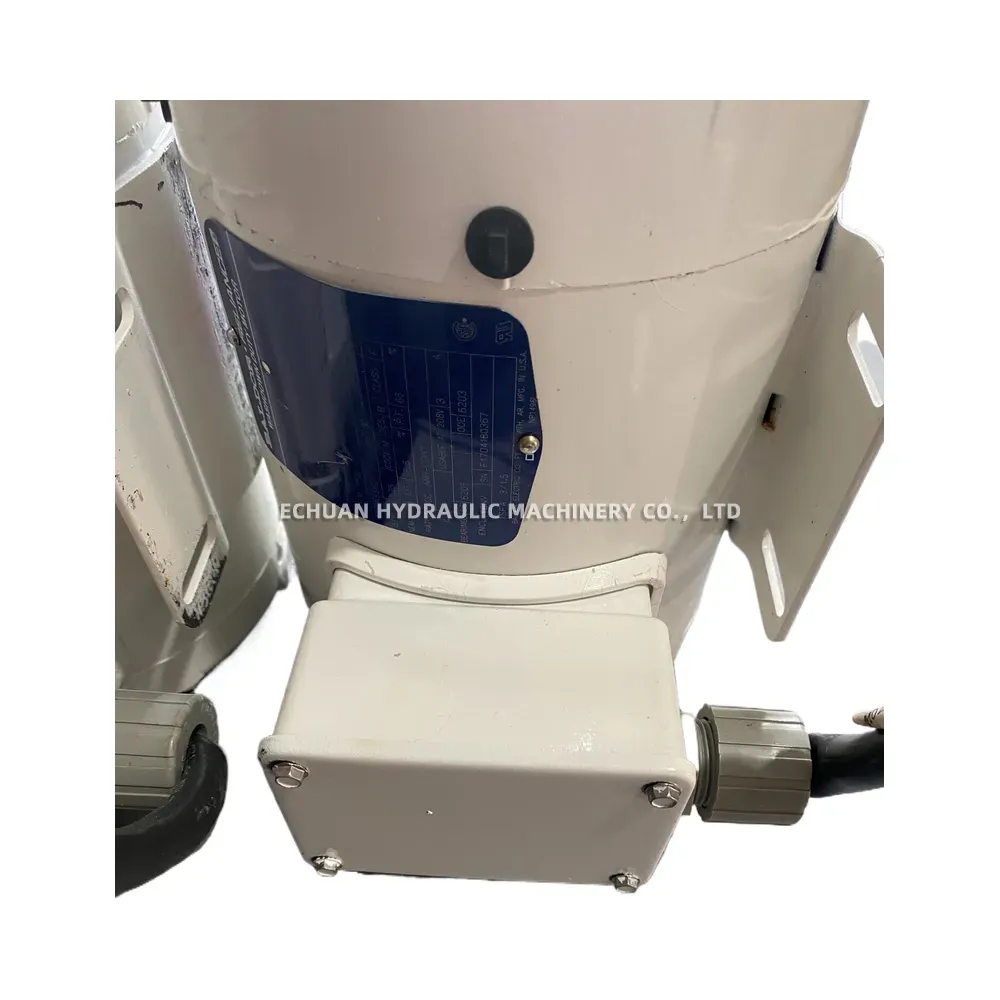

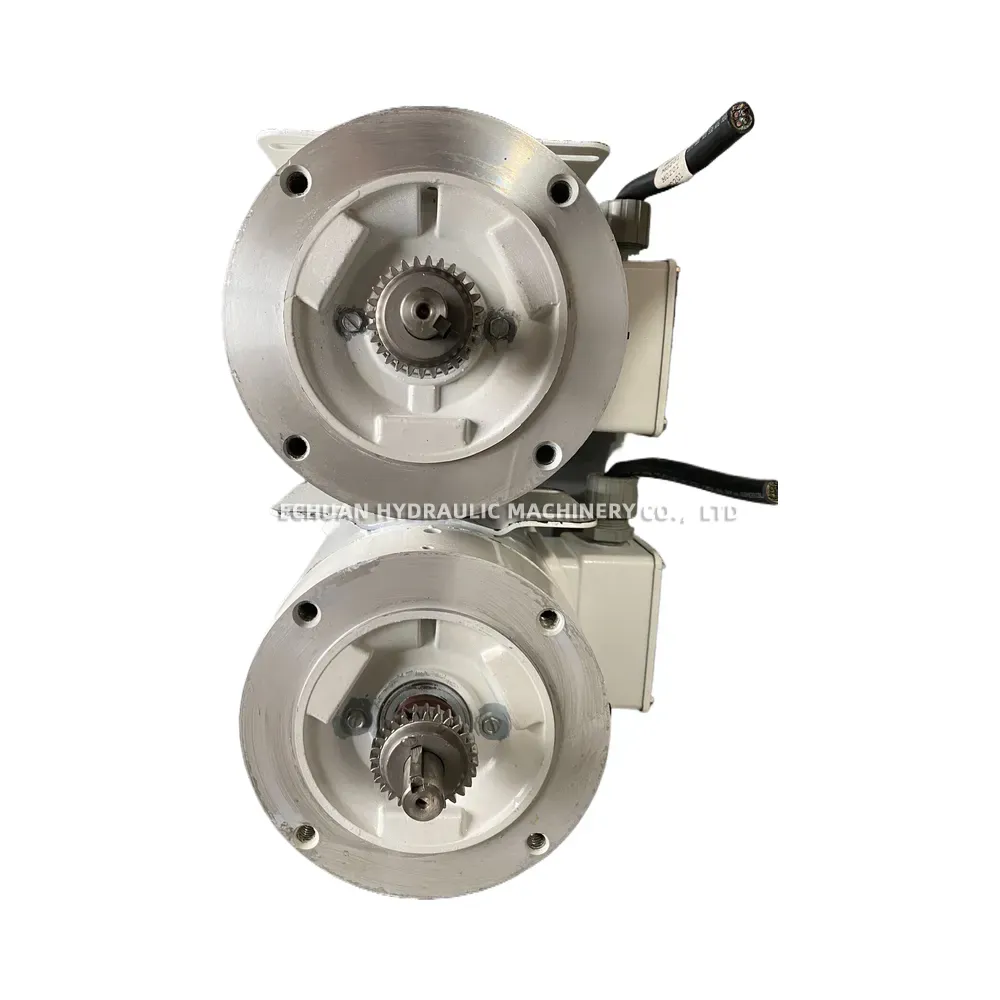

Baldor-Reliance CWDM3542 Washdown Duty Motor
The Baldor-Reliance CWDM3542 is a rugged, high-performance Washdown Duty Motor specifically engineered for demanding industrial environments where exposure to water, chemicals, and rigorous high-pressure cleaning is common. Ideal for food processing, pharmaceutical, and beverage applications, this 0.75 HP, 3-phase motor features a Totally Enclosed Non-Ventilated (TENV) enclosure to effectively prevent the ingress of moisture and contaminants. Built on a standard 56C frame, it operates efficiently at 1750 RPM with dual voltage capabilities (230/460V) and boasts a 1.25 service factor alongside Class F insulation for extended durability and reliable operation under heavy continuous workloads.

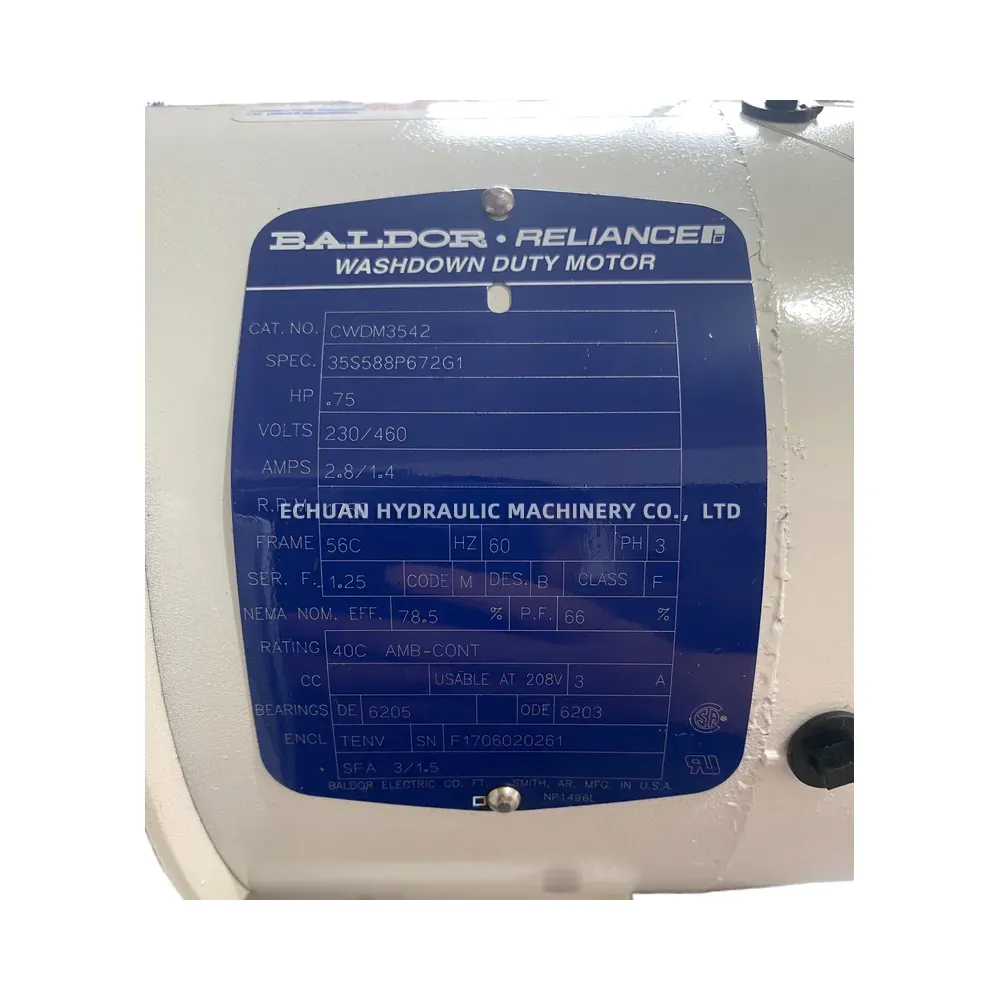

Technical Specifications:
- Brand: Baldor-Reliance
- Catalog Number: CWDM3542
- Horsepower (HP): 0.75
- Voltage: 230/460 Volts (Usable at 208V, 3A)
- Amperage: 2.8/1.4 Amps (SFA: 3/1.5)
- Speed: 1750 RPM
- Frame Size: 56C
- Frequency / Phase: 60 Hz / 3 Phase
- Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
- Service Factor: 1.25
- Insulation Class: F (Design B)
- NEMA Nominal Efficiency: 78.5% (Power Factor: 66%)
- Bearings: DE 6205 / ODE 6203

Baldor-Reliance CWDM3542 Washdown Duty Motor
Shop the Baldor-Reliance CWDM3542 Washdown Duty Motor. Featuring 0.75 HP, 1750 RPM, 3-phase power, and a moisture-resistant TENV 56C enclosure, this durable motor delivers reliable, continuous performance for food processing and demanding wet environments.
