Product Description

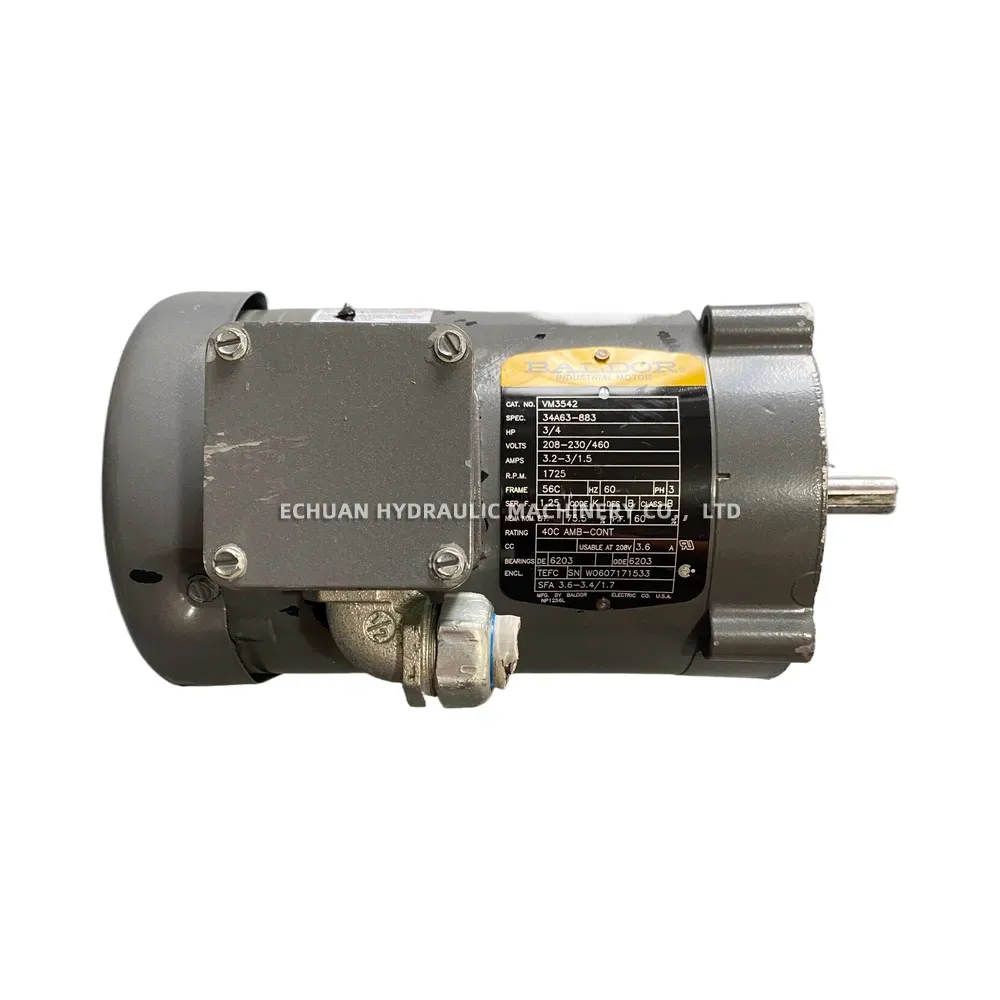

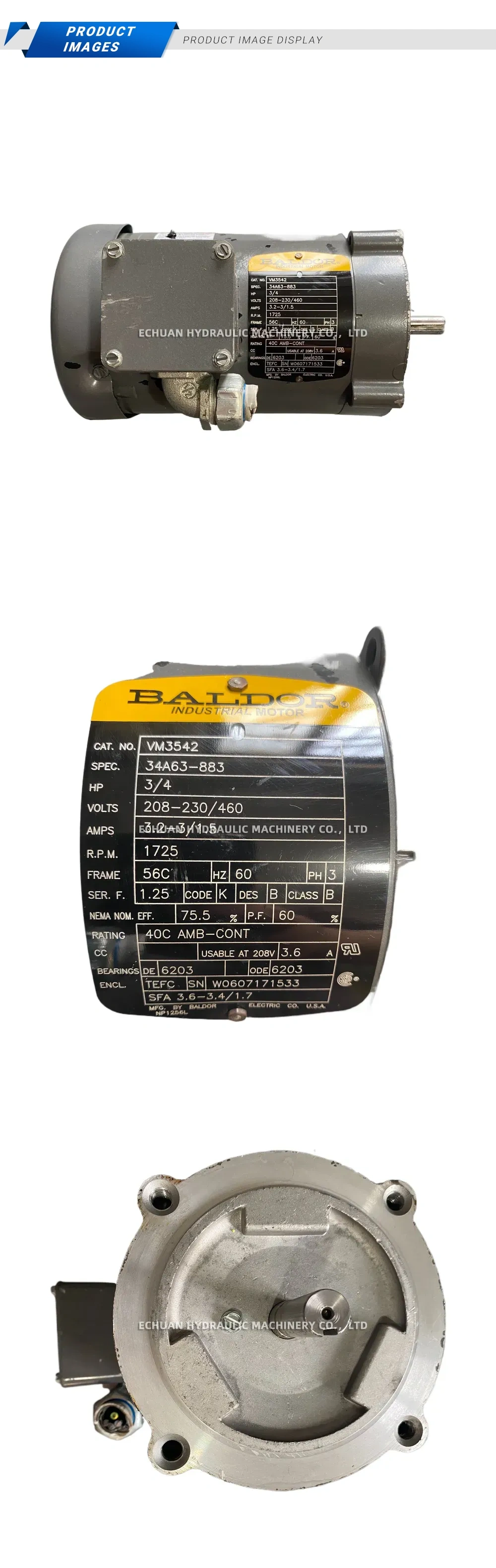

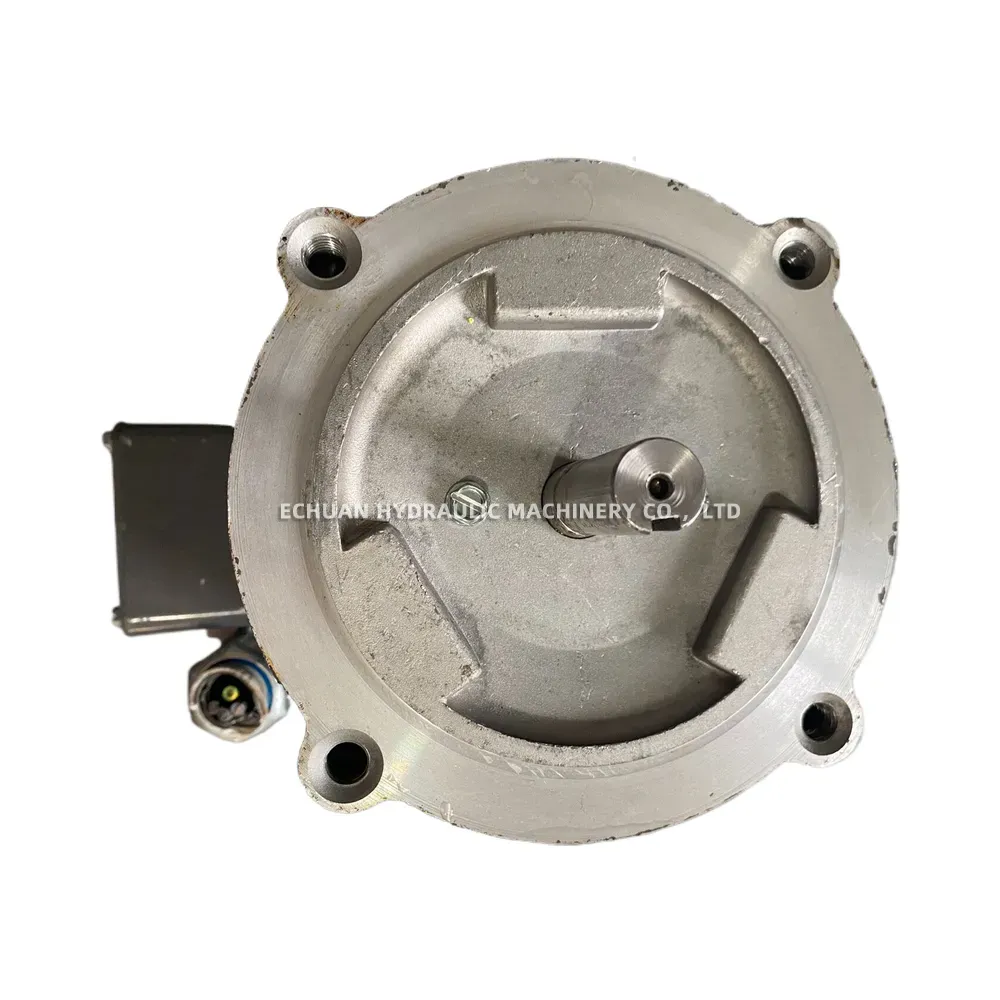

BALDOR VM3542 Industrial Motor
The BALDOR VM3542 is a rugged and highly reliable 3/4 HP industrial motor engineered for demanding commercial and industrial applications. Operating at 1725 RPM, this 3-phase, 60 Hz motor delivers consistent performance with a NEMA nominal efficiency of 75.5%. It features a durable Totally Enclosed Fan Cooled (TEFC) enclosure to protect internal components from dust and moisture, making it suitable for harsh environments. Built on a standard 56C frame and designed for continuous duty at 40°C ambient temperature, the VM3542 ensures long-lasting operational stability and optimal power transmission efficiency.

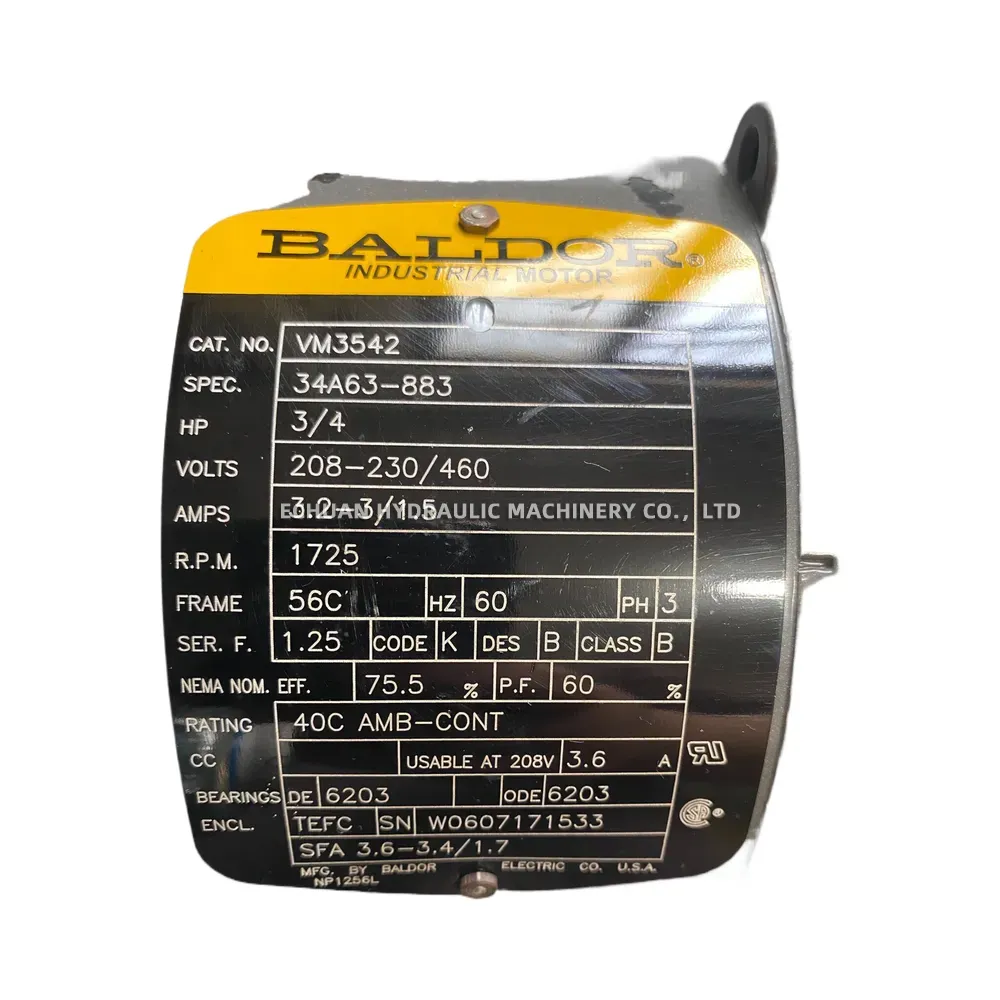

Technical Specifications:
- Brand: BALDOR
- Catalog Number: VM3542 (Spec: 34A63-883)
- Horsepower: 3/4 HP
- Speed: 1725 R.P.M.
- Voltage: 208-230/460V
- Amperage: 3.2-3/1.5A
- Phase / Frequency: 3 Phase / 60 Hz
- Frame Size: 56C
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Service Factor: 1.25
- NEMA Nominal Efficiency: 75.5% (Power Factor 60%)
- Bearings: DE 6203 / ODE 6203
BALDOR VM3542 Industrial Motor
Upgrade your industrial equipment with the BALDOR VM3542 Industrial Motor. Featuring 3/4 HP, 1725 RPM, 3-phase power, and a durable TEFC 56C frame, this motor delivers reliable, continuous-duty performance for your toughest applications.
