Product Description

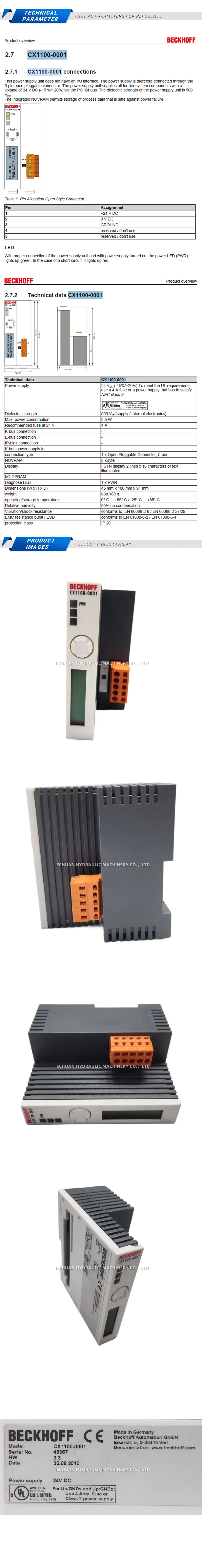

Beckhoff CX1100-0001
The Beckhoff CX1100-0001 is a fundamental component for the CX1010, CX1020, and CX1030 Embedded PC series, serving as the system’s power supply unit. It mounts directly onto the DIN rail and provides power to the main CPU module and subsequent I/O terminals through the integrated PC/104 bus. This unit accepts a standard 24 V DC input and efficiently distributes power throughout the system. In addition to its primary power supply function, the CX1100-0001 features an integrated interface for either Beckhoff Bus Terminals (K-bus) or EtherCAT Terminals (E-bus), enabling direct connection and communication with a wide range of I/O modules. This specific “-0001” variant also includes an interface that allows for the connection of an optional fieldbus slave module, enhancing its connectivity and flexibility within diverse automation architectures.
Technical Specifications:
- Model: CX1100-0001
- Input Voltage: 24 V DC (-15 %/+20 %)
- Output Power: Supplies CPU module and provides up to 2 A for K-bus/E-bus terminals
- System Connection: PC/104 bus (16 bit) for connection to CX-series CPU
- I/O Connection: Integrated K-bus or E-bus interface
- Fieldbus Interface: Connection for one optional fieldbus slave interface (e.g., PROFIBUS, CANopen, DeviceNet)
- Diagnostics: Status LEDs for power, I/O run/error, and fieldbus status
- Mounting: 35 mm DIN rail
Beckhoff CX1100-0001
The Beckhoff CX1100-0001 is a compact DIN rail power supply unit for the CX1010, CX1020, and CX1030 Embedded PC series, providing system power, an integrated I/O bus interface, and a connection for an optional fieldbus slave module.
