Product Description

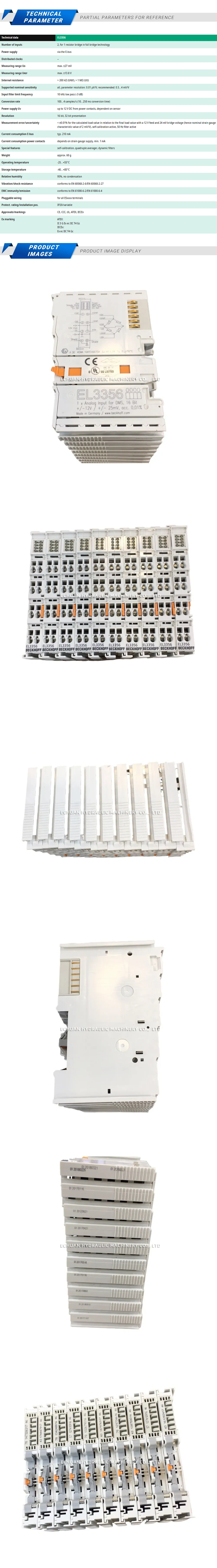

Beckhoff EL3356 EtherCAT Terminal
The Beckhoff EL3356 is a high-precision, 1-channel EtherCAT Terminal designed for the direct connection of a resistor bridge or load cell in a 4-wire or 6-wire configuration. This terminal offers exceptional accuracy with a 24-bit resolution, making it ideal for demanding weighing and force measurement applications in industrial automation. The EL3356 digitizes the signal from the connected load cell and transmits it, electrically isolated, to the higher-level automation device. It supports various measuring ranges and features integrated functions such as tare, calibration, and dynamic filters to ensure stable and reliable measurements even in challenging environments.
Technical Specifications:
- Number of inputs: 1
- Technology: Resistor bridge analysis (strain gauge)
- Resolution: 24 bit (including sign)
- Measurement range: ±2.5, ±5, ±10, ±20, ±40 mV/V (selectable)
- Conversion time: ~10 ms (default, adjustable)
- Measurement error: < 0.01 % of the full scale value
- Connection method: 4-wire or 6-wire connection
Beckhoff EL3356
The Beckhoff EL3356 is a high-precision 1-channel EtherCAT Terminal for accurate load cell and strain gauge analysis. With 24-bit resolution, it’s ideal for demanding weighing and force measurement applications.
