Product Description
Beckhoff EL4002 EtherCAT Terminal
The Beckhoff EL4002 is an EtherCAT Terminal designed for high-precision analog output applications in industrial automation systems. It features two channels that generate analog voltage signals in the range of 0 to 10 V. The terminal converts a 12-bit digital value from the EtherCAT network into a stable, electrically isolated analog signal, making it ideal for controlling actuators, drives, and other analog devices. The output stages are powered by a 24 V DC supply, and the two output channels share a common ground potential. Its compact design and fast conversion time ensure efficient and reliable performance within a Beckhoff control system.

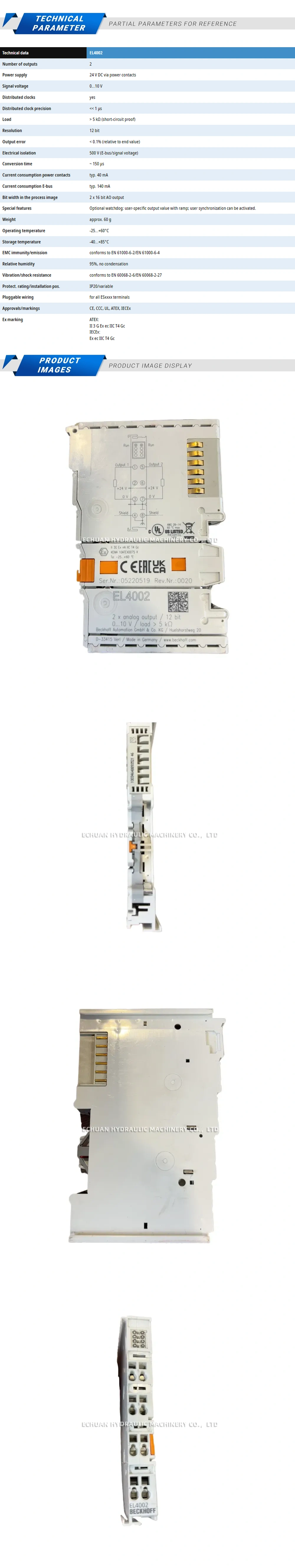

Technical Specifications:
- Technology: Analog output
- Number of outputs: 2
- Signal voltage: 0…10 V
- Resolution: 12 bit
- Conversion time: ~10 µs
- Output error: < ±0.1 % (relative to full scale value)
- Connection technology: 2-wire
Beckhoff EL4002
The Beckhoff EL4002 is a 2-channel analog output EtherCAT Terminal that provides precise 0-10V voltage signals with 12-bit resolution, designed for reliable control in industrial automation applications.
| Brand | BECKHOFF |
|---|---|
| Model | EL4002 |
| Category | Electrical |
