Product Description
Beckhoff EP2316-0008 EtherCAT Digital Input/Output Module
The Beckhoff EP2316-0008 is a highly efficient and robust EtherCAT Box module designed for advanced industrial automation applications. This versatile digital input/output module features 8 digital inputs and 8 digital outputs, operating at 24V DC with an ultra-fast 10µs input filter time for precise signal processing. Each output channel supports up to 0.5A, with a maximum total sum current of 4A. Engineered for demanding industrial environments, the module is equipped with secure M12 connectors for EtherCAT bus and power supply connections, alongside a high-density 25-pin D-Sub connector for streamlined I/O wiring. Manufactured in Germany and compliant with CE and UL standards, the EP2316-0008 ensures reliable, high-speed communication and control for your automated systems.
Technical Specifications:
- Brand: Beckhoff
- Model: EP2316-0008
- Input Channels: 8 x Digital Inputs (24V DC, 10µs filter time)
- Output Channels: 8 x Digital Outputs (24V DC, 0.5A per channel, Total Σ = 4A)
- Bus Interface: EtherCAT IN/OUT (M12 connectors)
- Power Supply Interface: Power Supply IN/OUT (M12 connectors, Class 2)
- I/O Connection: 25-pin D-Sub connector
- Certifications: CE, cULus Listed

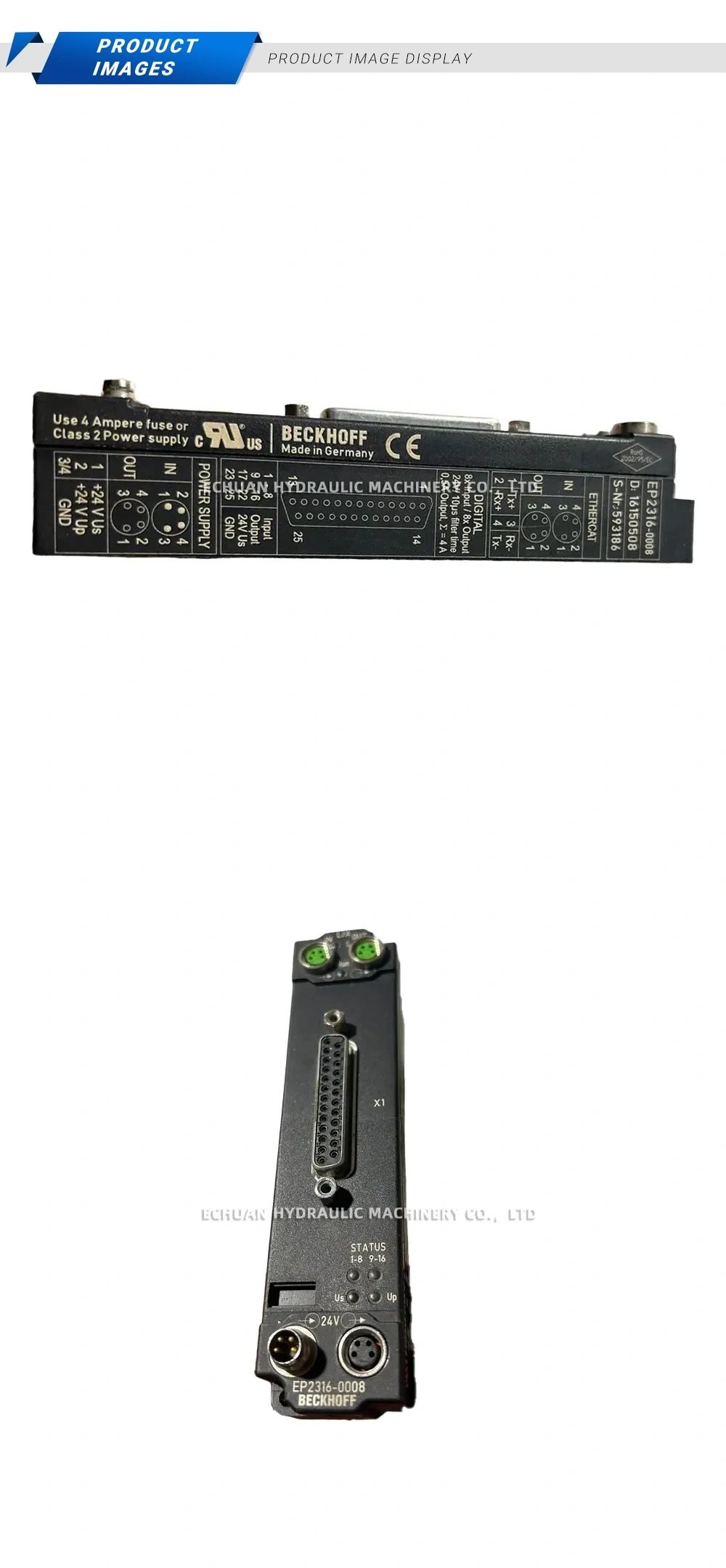

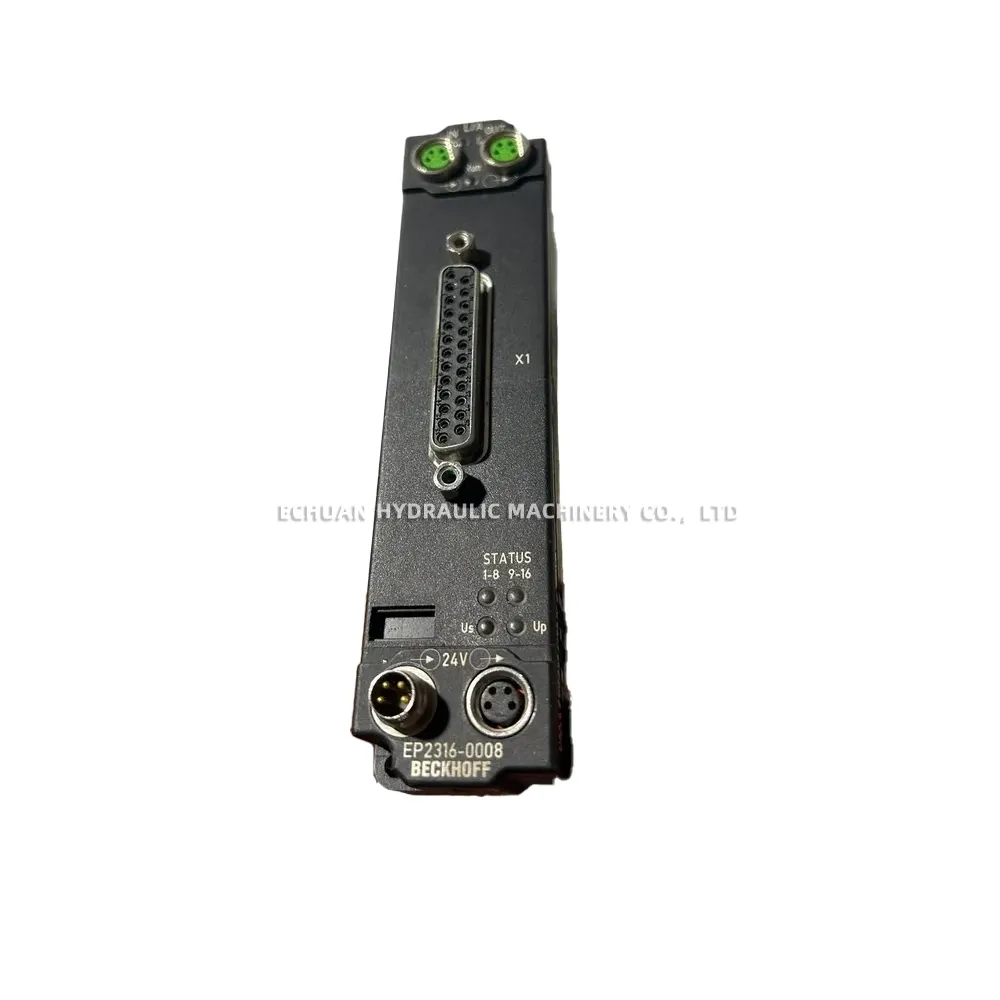

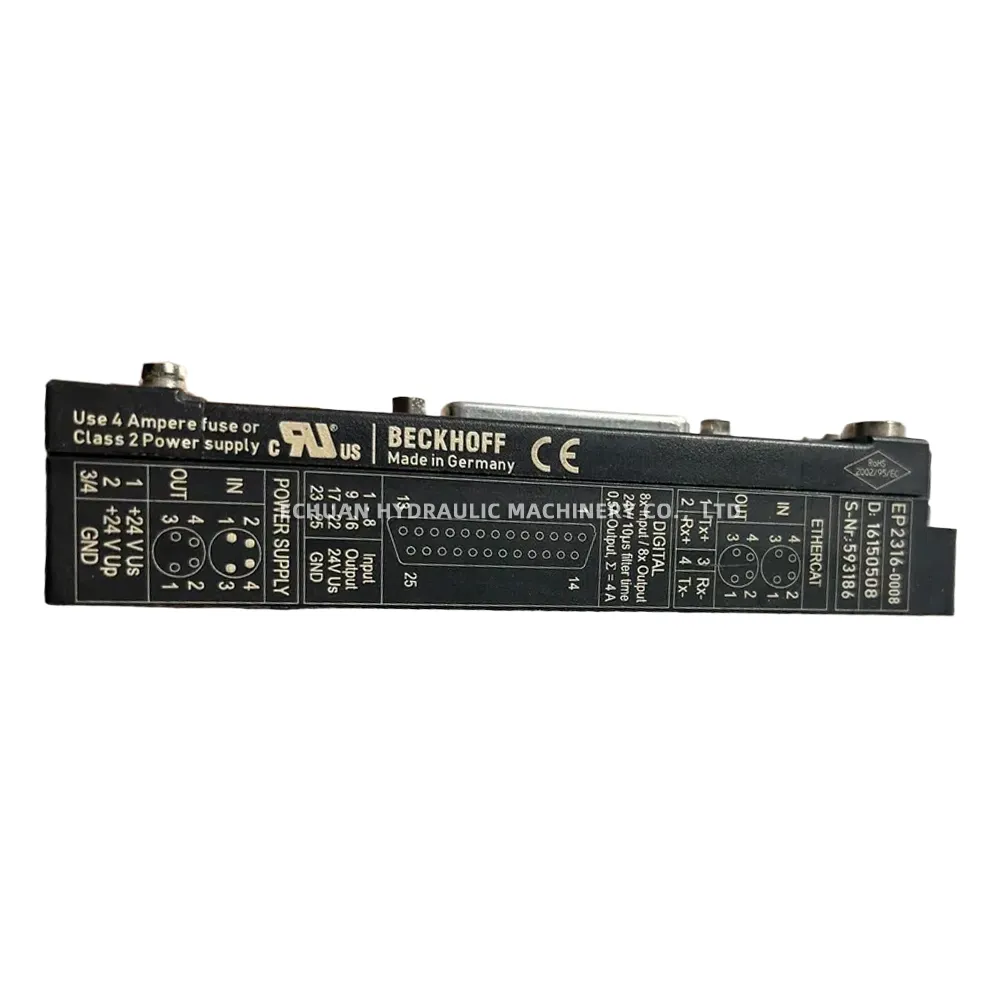

Beckhoff EP2316-0008 EtherCAT Digital Input/Output Module
Optimize your industrial automation network with the Beckhoff EP2316-0008 EtherCAT Digital I/O Module. This robust unit features 8 digital inputs, 8 digital outputs (0.5A/ch), 24V DC operation, and reliable M12/D-Sub connectivity for high-speed, precision machine control.
