Product Description

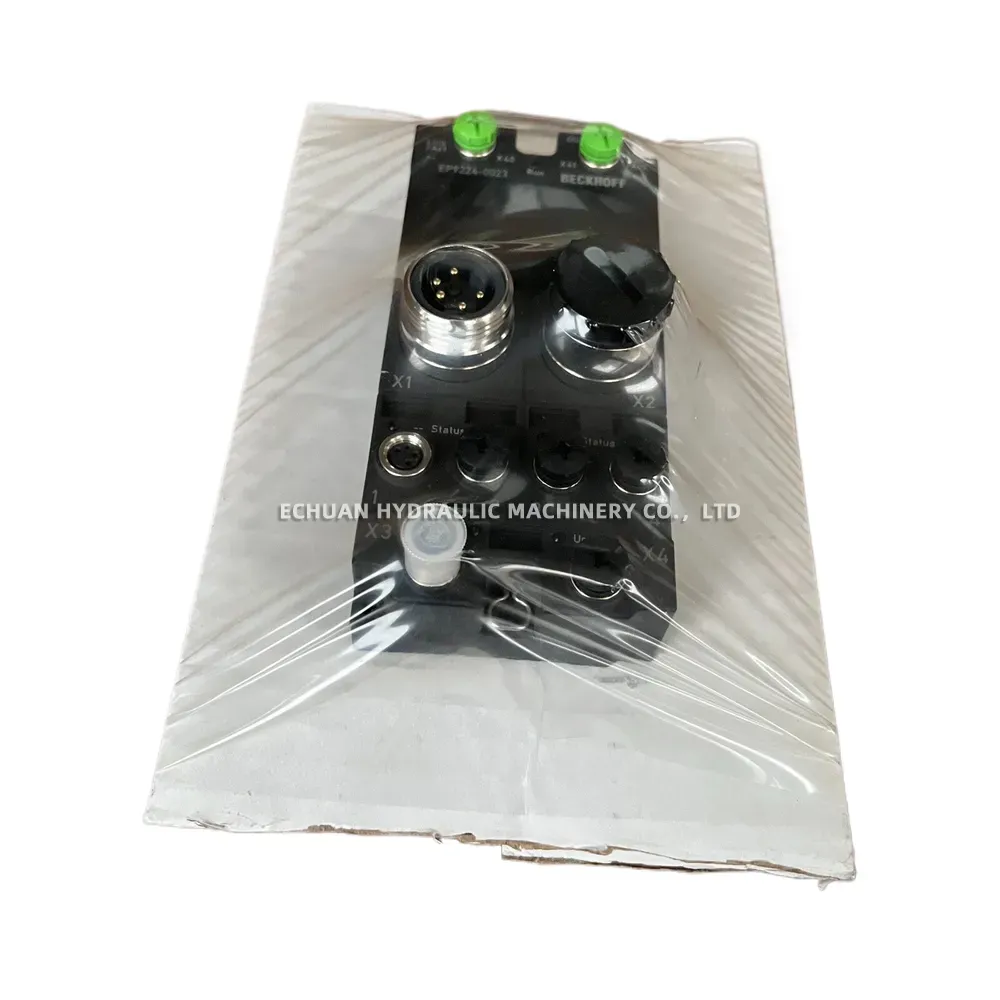

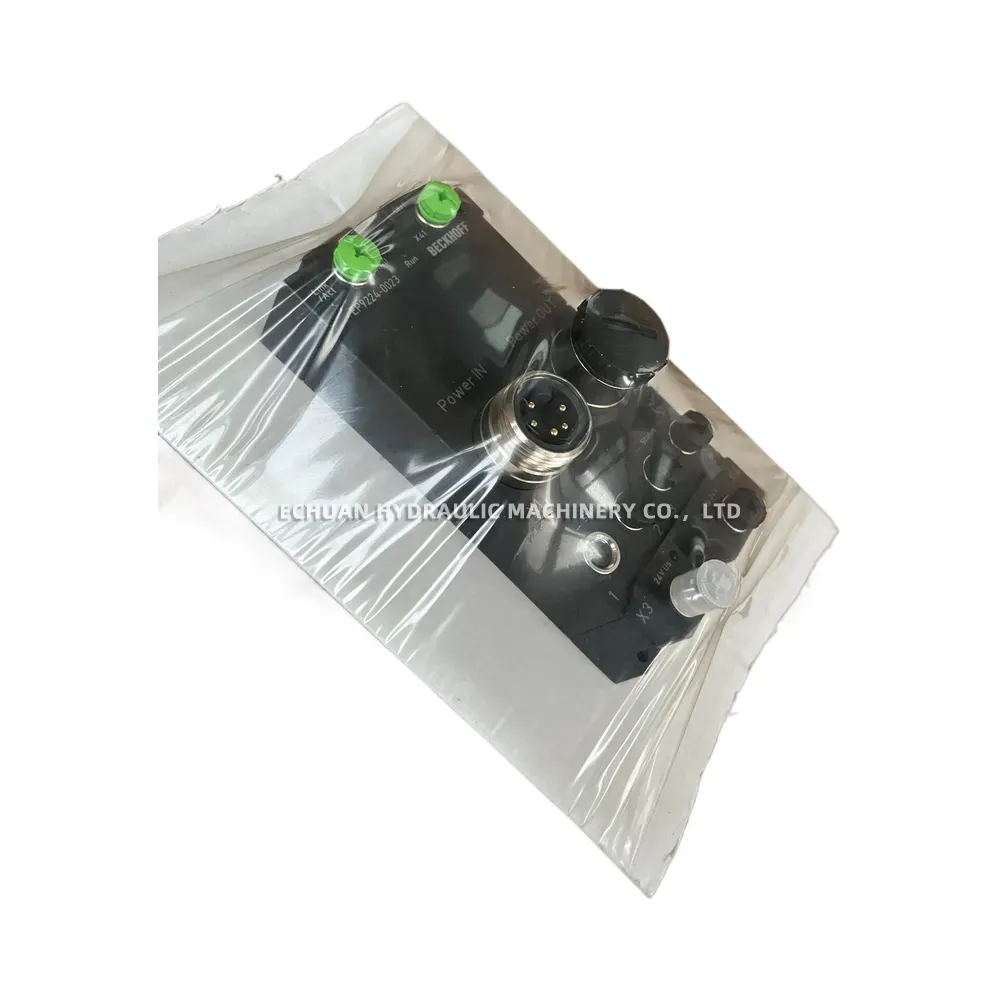

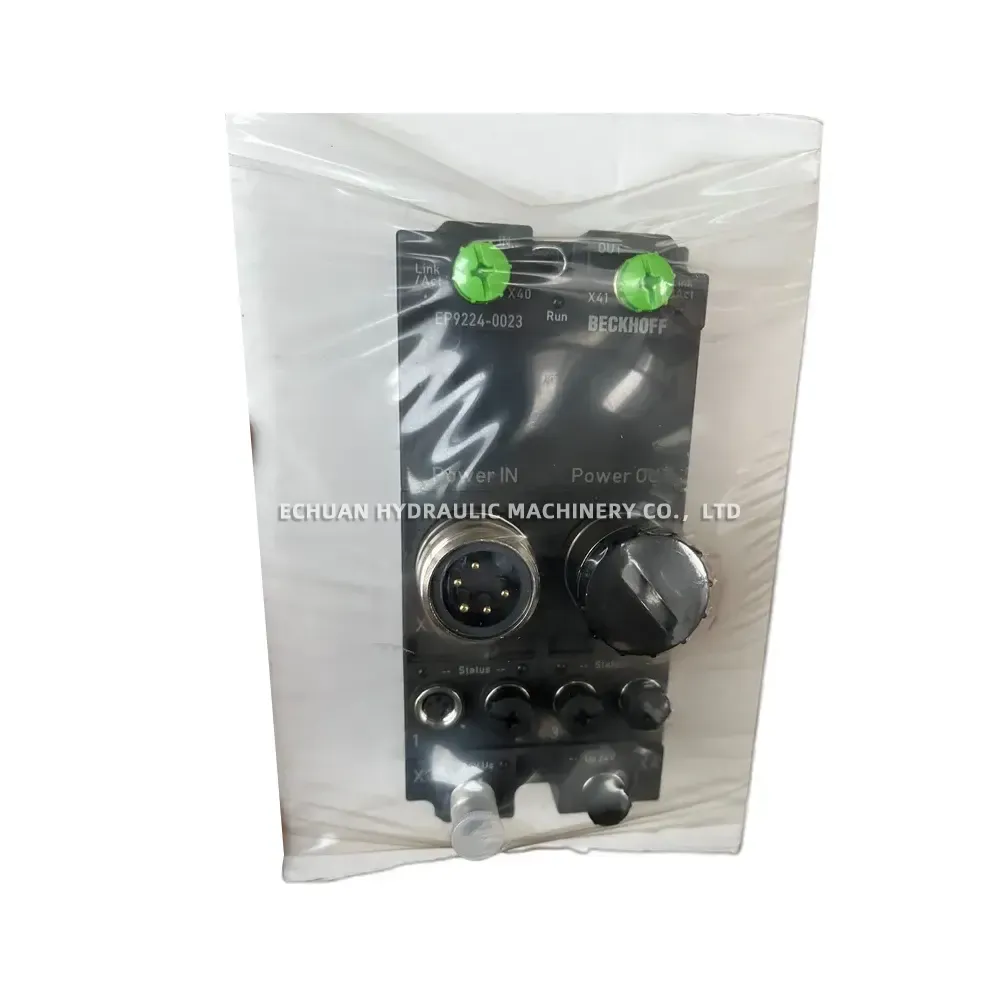

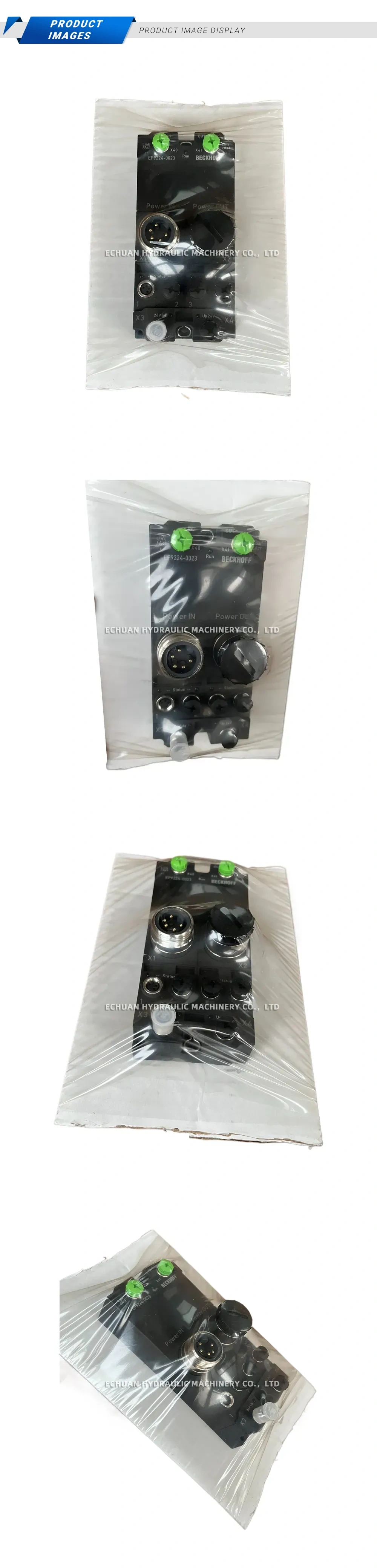

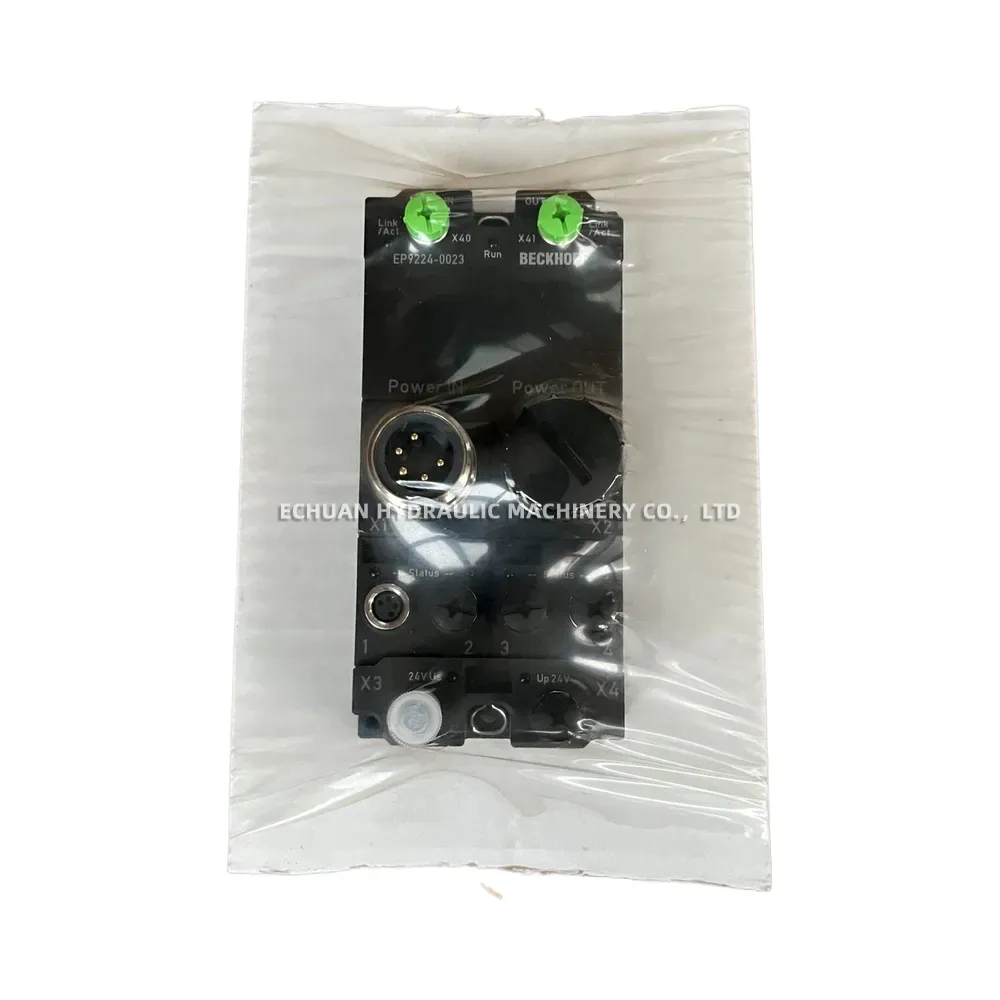

BECKHOFF EP9224-0023 EtherCAT Power Distribution Terminal
The BECKHOFF EP9224-0023 is a highly reliable 4-channel power distribution terminal designed specifically for EtherCAT networks in industrial automation environments. This robust module facilitates the efficient routing and distribution of power through its standardized M23 Power IN and Power OUT connections (X1, X2). It effectively manages both the 24V DC system voltage (Us) and the peripheral voltage (Up), ensuring stable power delivery to connected field devices. Equipped with comprehensive diagnostic capabilities, the EP9224-0023 features clear status LEDs for Link/Act, Run, and individual channel statuses, enabling quick troubleshooting and seamless integration into modern machine control systems.
Technical Specifications:
- Brand: BECKHOFF
- Model: EP9224-0023
- Product Type: EtherCAT Power Distribution Terminal
- Number of Channels: 4-channel power distribution
- Power Connections: M23 connectors (Power IN X1, Power OUT X2)
- Operating Voltage: 24 V DC (System voltage Us, Peripheral voltage Up)
- Diagnostics & Indicators: Status LEDs for Link/Act, Run, and Channel Status (1-4)
- Network Protocol: EtherCAT
BECKHOFF EP9224-0023 EtherCAT Power Distribution Terminal
Optimize your industrial automation network with the BECKHOFF EP9224-0023 4-channel EtherCAT power distribution terminal. Featuring robust M23 connectors and reliable 24V DC management for both system (Us) and peripheral (Up) voltages, this module ensures seamless power delivery and easy diagnostics for your field devices.
