Product Description

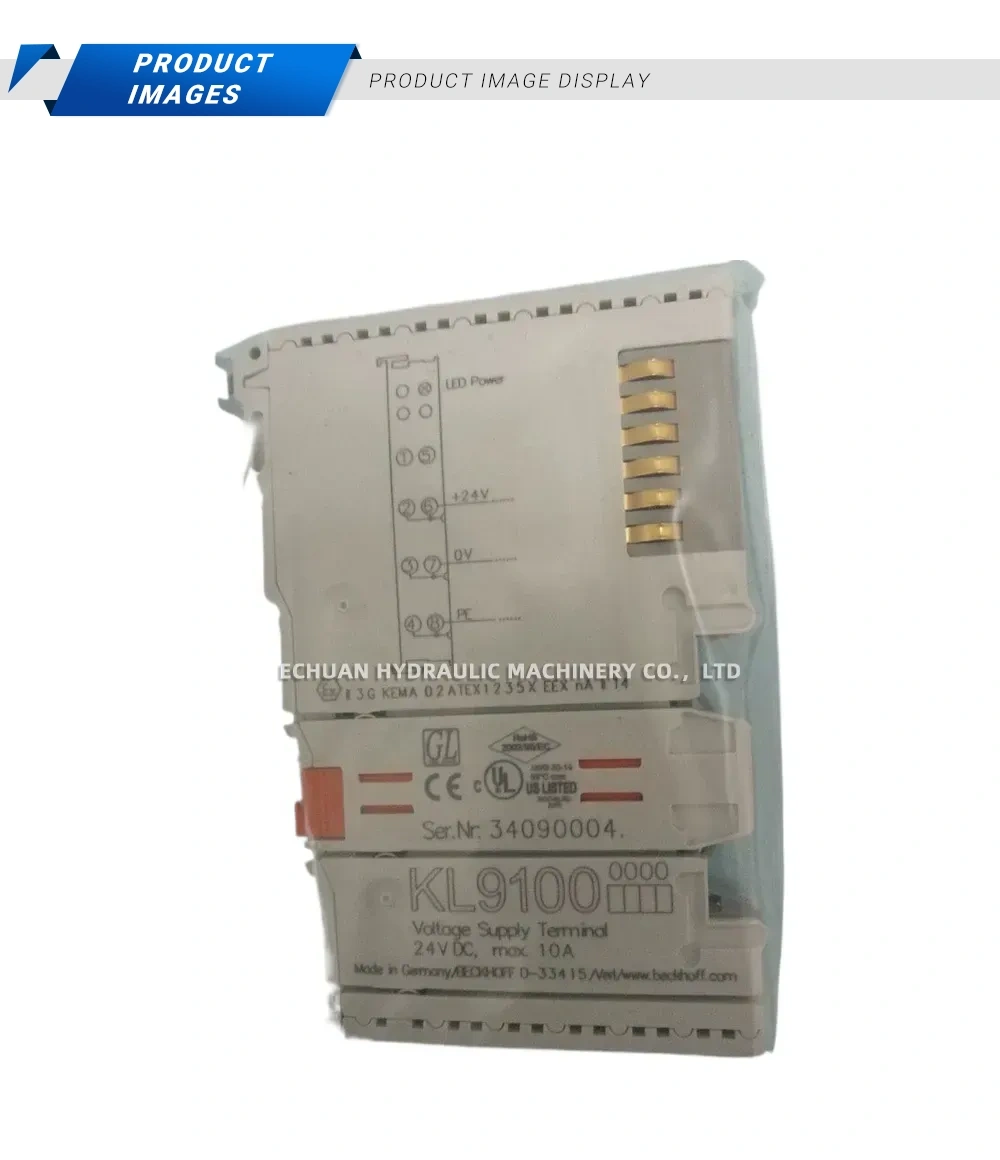

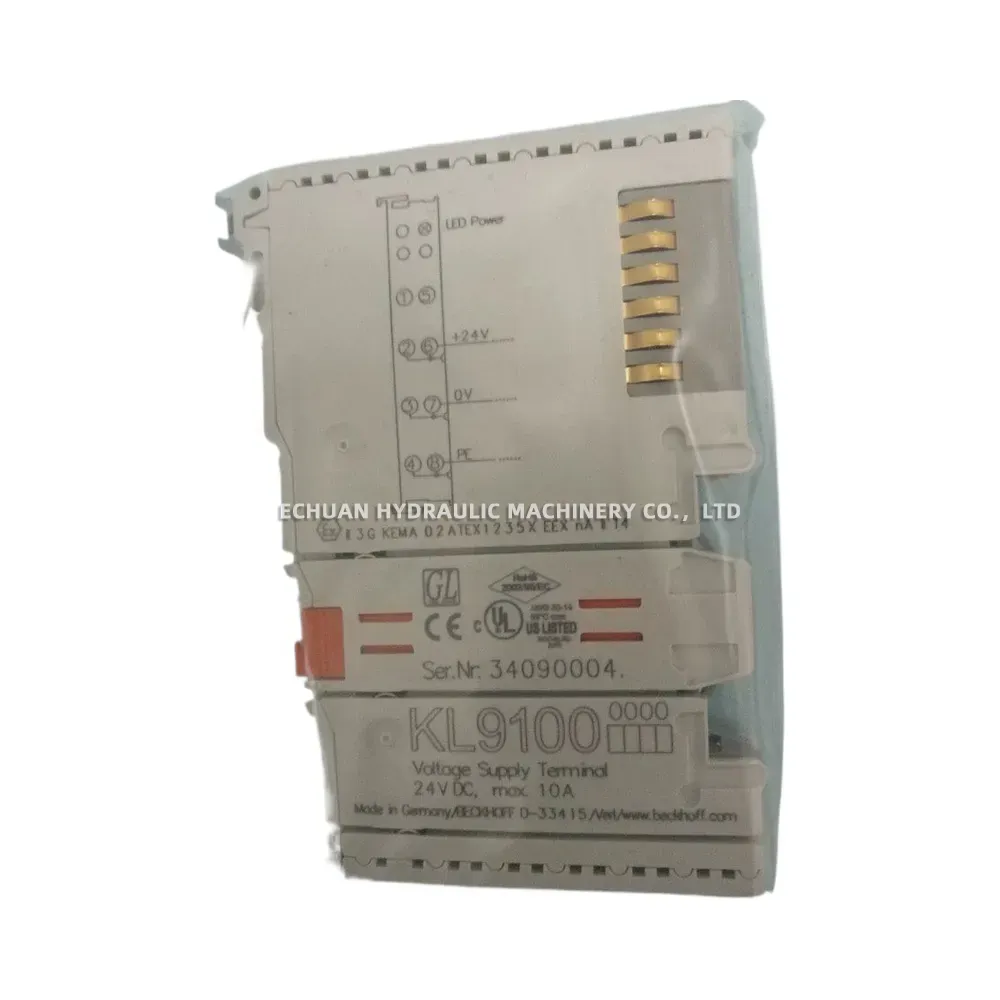

Beckhoff KL9100 Voltage Supply Terminal
The Beckhoff KL9100 is a power supply terminal designed for the Beckhoff Bus Terminal I/O system. It is used to introduce power for a group of I/O terminals, allowing for the creation of separate and isolated potential groups. This terminal feeds the 24 V DC supply voltage into the power contacts, ensuring reliable power distribution to downstream terminals. It includes connections for +24V, 0V, and a protective earth (PE) contact. An integrated LED provides a clear visual indication of the power supply status, simplifying diagnostics and maintenance.
Technical Specifications:
- Model: KL9100
- Function: Voltage Supply Terminal for potential groups
- Nominal Voltage: 24 V DC
- Max. Current Load: 10 A
- Indicators: Power LED
- Explosion Protection (ATEX): II 3 G KEMA 02 ATEX 1235X EEx nA II T4
- Approvals: CE, cULus LISTED, GL
Beckhoff KL9100 Voltage Supply Terminal
Shop the Beckhoff KL9100 Voltage Supply Terminal, a 24V DC, 10A power feed module for the Beckhoff Bus Terminal system. Ideal for creating isolated potential groups and featuring an ATEX rating for hazardous environments.
