Product Description

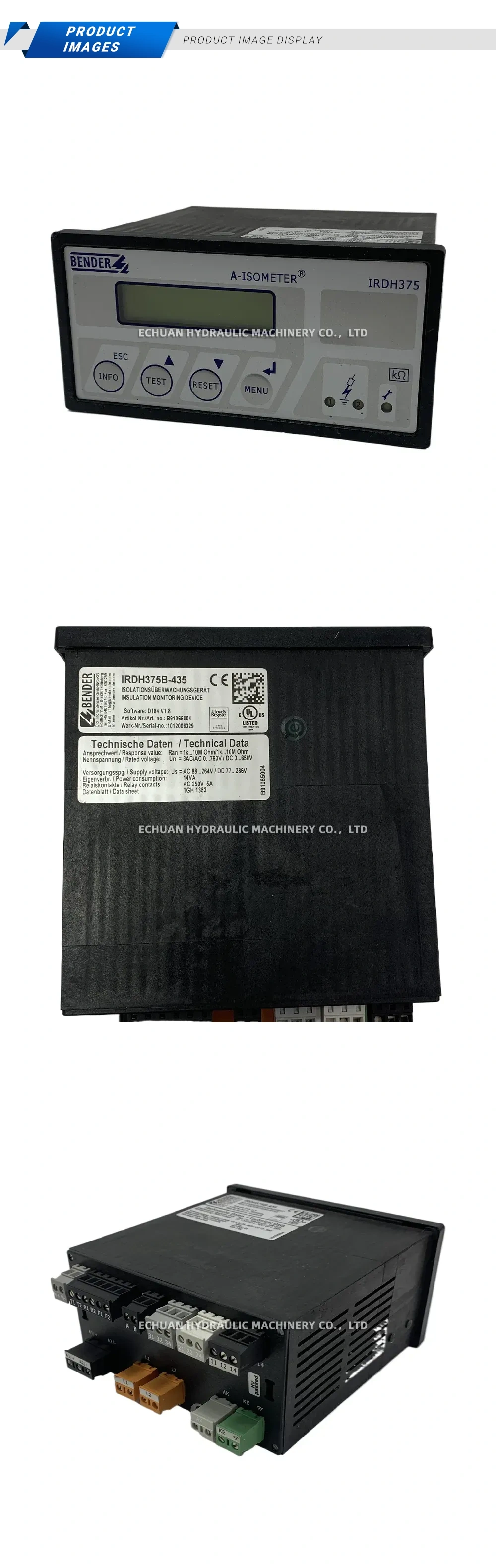

Bender IRDH375B-435 Insulation Monitoring Device
The Bender ISOMETER® IRDH375B-435 is a high-performance insulation monitoring device designed for unearthed AC, AC/DC, and DC power systems (IT systems). It is universally applicable in systems containing rectifiers, converters, and variable-speed drives. Utilizing Bender’s patented AMP Plus measurement principle, this device provides reliable and precise monitoring even in complex installations with high leakage capacitances. The IRDH375B-435 continuously monitors the insulation resistance, providing early warnings for insulation faults, which helps to prevent system downtime, reduce fire hazards, and ensure electrical safety. Its high-resolution graphical display allows for easy configuration and clear visualization of system status and measured values.
Technical Specifications:
- Nominal System Voltage (Un): AC/3(N)AC 0…793 V; DC 0…650 V
- Frequency Range (fn): DC, 0.1…460 Hz
- Supply Voltage (Us): AC 100…240 V (50…60 Hz); DC 100…240 V
- Response Value Range (R an1/R an2): 1 kΩ…10 MΩ
- Measurement Principle: AMP Plus (Adapted Measuring Pulse)
- Operating Temperature: -40 °C … +70 °C (-40 °F … +158 °F)
- Standards Compliance: DIN EN 61557-8, IEC 61557-8
Bender IRDH375B-435 Insulation Monitoring Device
Bender IRDH375B-435 ISOMETER® for advanced insulation monitoring in AC, DC, and AC/DC IT systems. Ensures operational safety, fault detection, and system reliability.
