Product Description

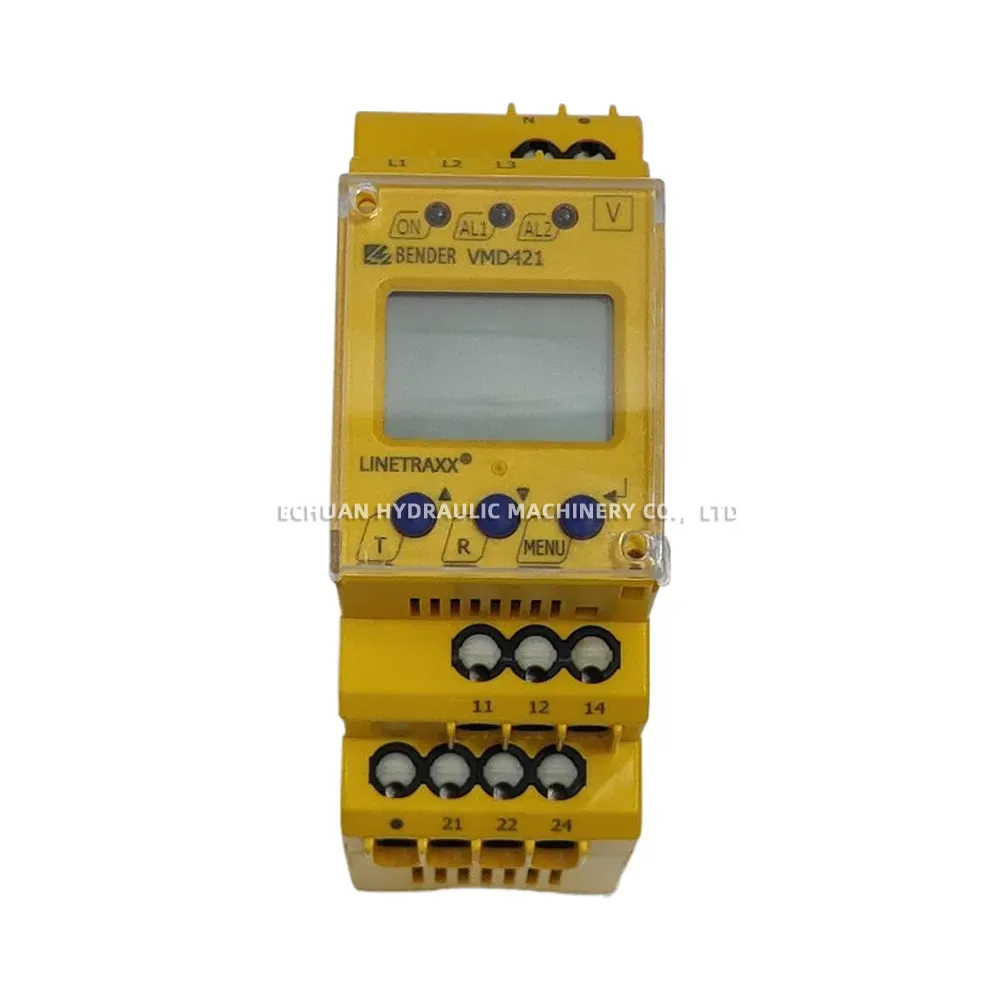

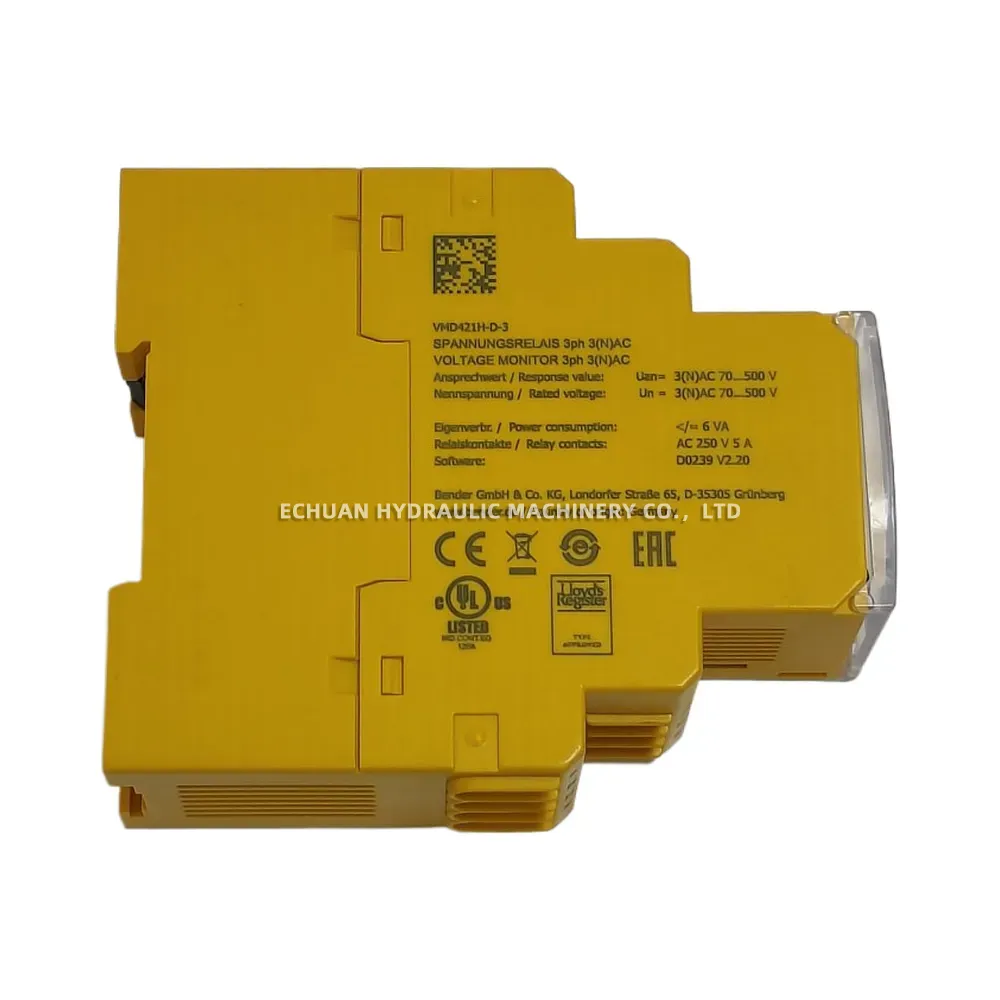

Bender VMD421H-D-3 ISOMETER® Insulation Monitoring Device
The Bender VMD421H-D-3 is a versatile and advanced ISOMETER® designed for insulation monitoring in unearthed AC, DC, and AC/DC systems (IT systems). It is particularly suited for complex applications involving variable-frequency drives, DC components, and battery systems, such as in electric vehicle charging stations (Mode 3 and Mode 4), industrial control circuits, and renewable energy installations. This device continuously monitors the insulation resistance to ground, providing early warnings of developing faults. It features two separately adjustable response values, an LC display for easy reading of measured values and device status, and an integrated data logger. The VMD421H-D-3 enhances operational safety and system availability by detecting insulation deterioration before it can lead to critical failures or downtime.
Technical Specifications:
- Nominal system voltage (Un): AC 0…793 V; DC 0…650 V
- Supply voltage (Us): AC 100…240 V (50…60 Hz); DC 100…240 V
- Frequency range of system voltage: DC, 1…460 Hz
- Response value range (R_an1, R_an2): 1 kΩ…10 MΩ
- Operating temperature: -40 °C … +70 °C
- Mounting: DIN rail mounting
- Standard compliance: IEC 61557-8
Bender VMD421H-D-3
Bender VMD421H-D-3 ISOMETER® for continuous insulation monitoring in unearthed AC/DC IT systems. Ideal for EV charging, industrial, and solar applications, ensuring electrical safety and system reliability.
