Product Description

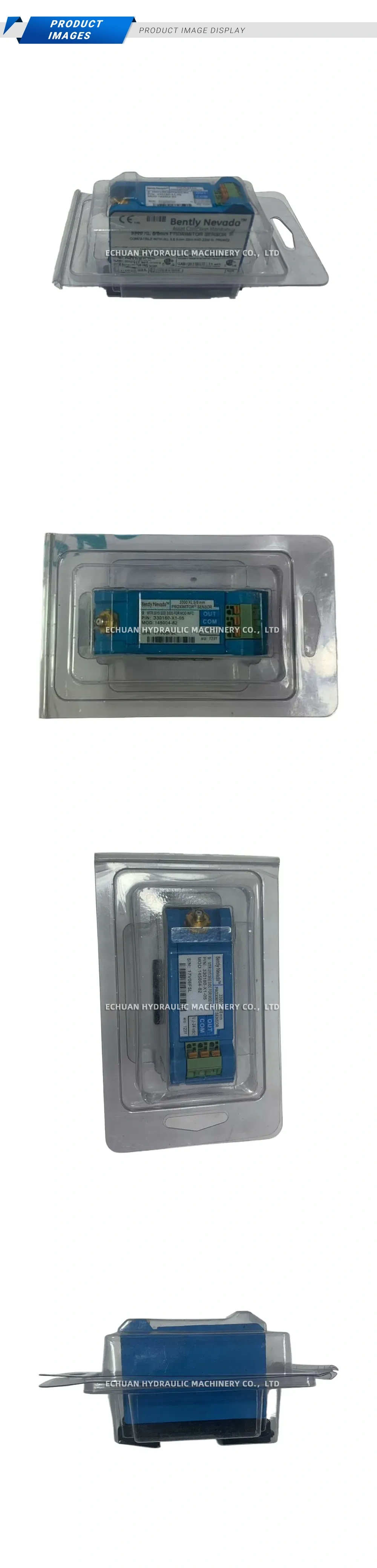

Bently 330180-X1-05
The Bently Nevada 330180-X1-05 is a 3300 XL Proximitor Sensor, a key component of the Bently Nevada 3300 XL Proximity Transducer System. This high-performance, eddy current sensor is engineered to measure vibration and position on critical rotating machinery. It processes the signal from a 3300 XL 5mm or 8mm probe and provides a precise voltage output directly proportional to the distance between the probe tip and the observed conductive surface. The 330180-X1-05 is designed for exceptional reliability in harsh industrial environments, offering superior RFI/EMI immunity to prevent signal interference. It is an essential device for machinery protection systems in industries such as power generation, oil and gas, and petrochemicals, enabling predictive maintenance and preventing catastrophic equipment failure.
Technical Specifications:
- Model: 3300 XL Proximitor Sensor
- Input Power: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption
- Sensitivity: 7.87 V/mm (200 mV/mil) ±6.5%
- Linear Range: 2 mm (80 mils)
- Frequency Response: 0 to 10 kHz (-3 dB)
- Operating Temperature: -35 °C to +85 °C (-31 °F to +185 °F)
- Agency Approvals (-05 Suffix): Multiple approvals including CSA, ATEX, and IECEx for hazardous area installations
Bently 330180-X1-05
Bently Nevada 330180-X1-05 is a 3300 XL Proximitor Sensor for high-performance vibration and position monitoring. Ideal for machinery protection systems in demanding industrial applications.
