Product Description
Bosch Rexroth AZPNF-11-032/011RDC0720KB-S0081 / 0510765065 Hydraulic Gear Pump

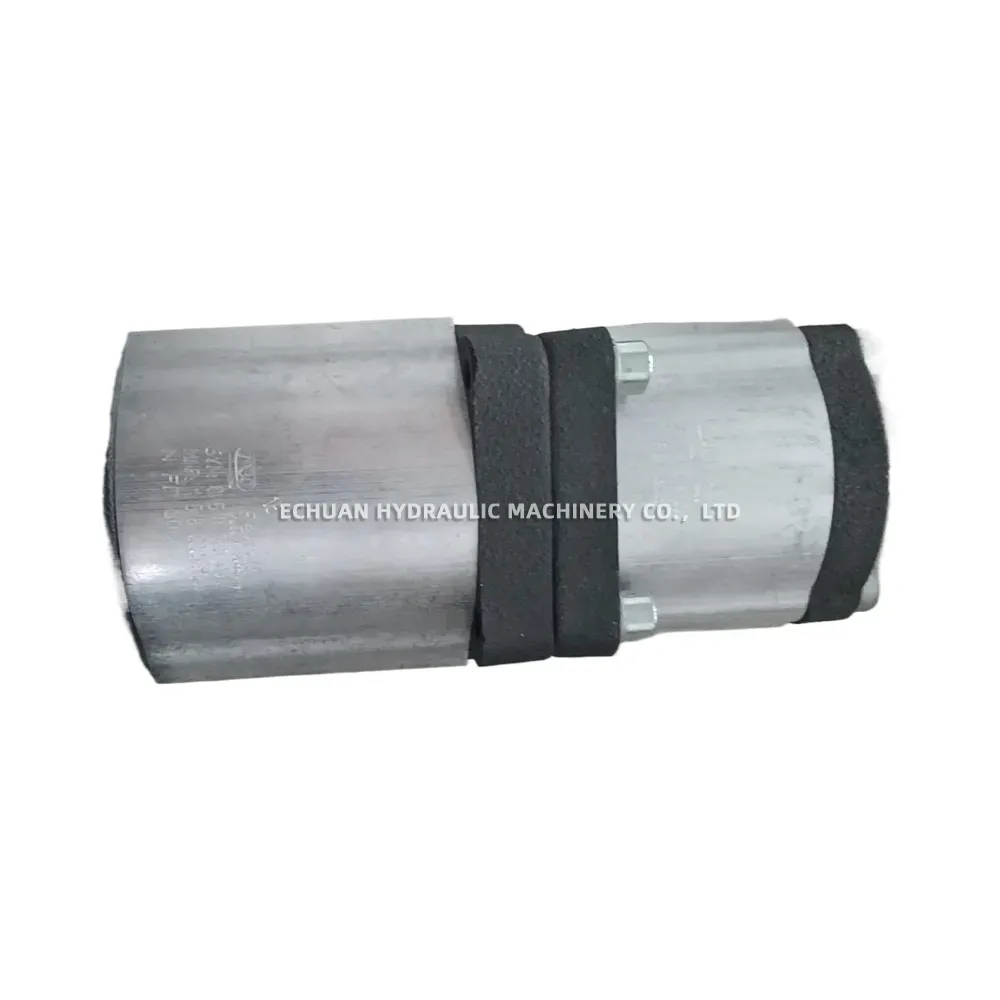

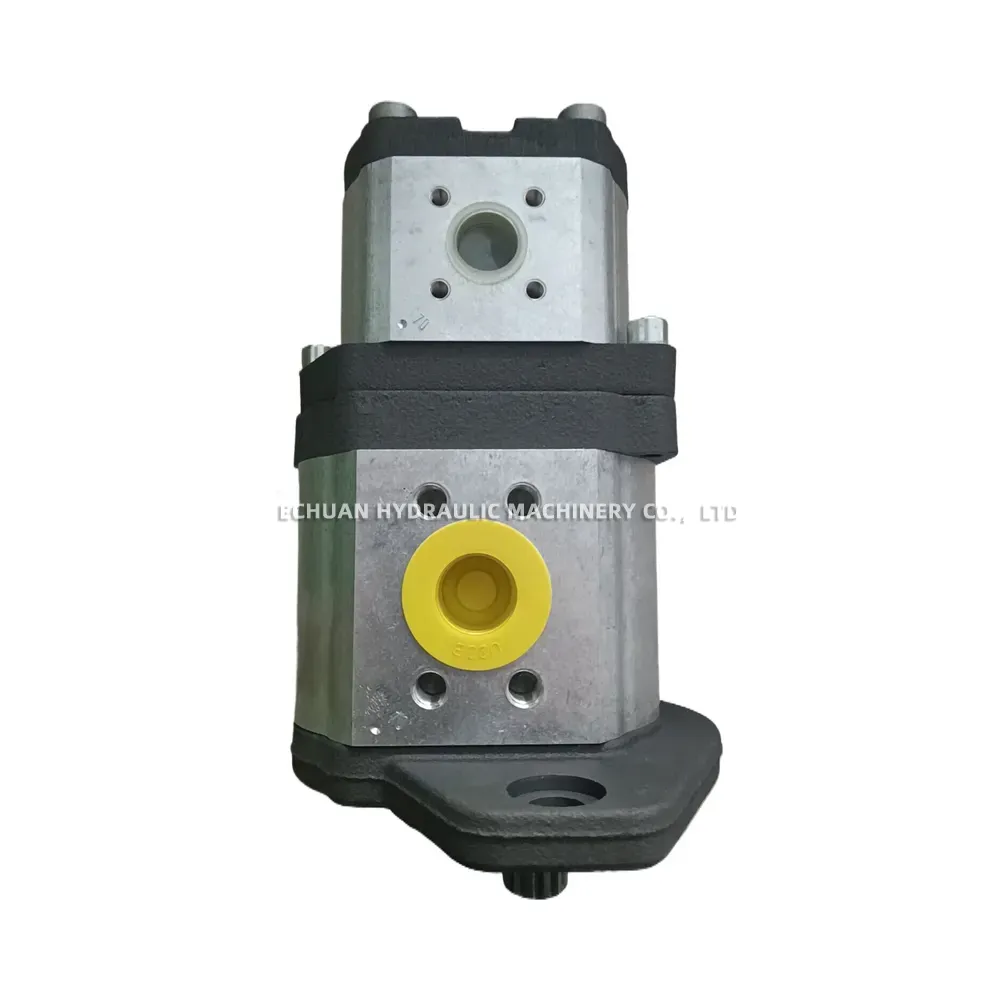

The Bosch Rexroth AZPNF-11-032/011RDC0720KB-S0081 (Part Number: 0510765065 / R918C02393) is a high-performance double-section (tandem) external gear pump engineered for medium-pressure hydraulic oil systems. Constructed with a lightweight yet durable aluminum alloy housing and reinforced with robust cast iron end covers, this pump is built to withstand rigorous industrial environments. It provides a fixed displacement of 32 cm³/rev on the primary stage and 11 cm³/rev on the secondary stage. Designed for seamless integration, it features a splined drive shaft, through-hole flange mounting, and side suction and pressure ports equipped with O-ring sealing and threaded mounting holes to guarantee a secure, leak-free connection.
Technical Specifications:
- Brand: Bosch Rexroth
- Model Number: AZPNF-11-032/011RDC0720KB-S0081
- Part Number: 0510765065 (Ref: R918C02393)
- Pump Type: Double-section (Tandem) External Gear Pump
- Displacement: 32 cm³/rev (Front Section) / 11 cm³/rev (Rear Section)
- Material Construction: Aluminum alloy housing with cast iron end covers
- Drive Shaft Type: Splined drive shaft
- Mounting Style: Flange mounting with through-hole
- Port Configuration: Side suction and pressure ports with O-ring sealing and threaded mounting holes
- System Compatibility: Medium-pressure hydraulic oil systems
Bosch Rexroth AZPNF-11-032/011RDC0720KB-S0081 / 0510765065 Hydraulic Gear Pump (Tandem/Double Gear Pump)
Optimize your medium-pressure hydraulic systems with the Bosch Rexroth AZPNF-11-032/011RDC0720KB-S0081 (0510765065) tandem external gear pump. Delivering a fixed displacement of 32/11 cm³/rev, this durable aluminum and cast iron pump features a splined shaft, secure flange mounting, and O-ring sealed ports for reliable, leak-free industrial performance.
