Product Description
B&R X20IF1063-1
The B&R X20IF1063-1 is a high-performance interface module designed for the modular B&R X20 I/O system. It functions as a POWERLINK bus controller, enabling the seamless integration of decentralized X20 I/O modules into a POWERLINK network. This module acts as a controlled node, receiving commands from a managing node and controlling the connected I/O slice cards via the high-speed X2X Link. Featuring two integrated RJ45 ports that function as a hub, it simplifies network wiring and supports daisy-chaining configurations. Its compact design and robust performance make it an ideal solution for sophisticated machine control and factory automation applications requiring reliable, real-time communication.

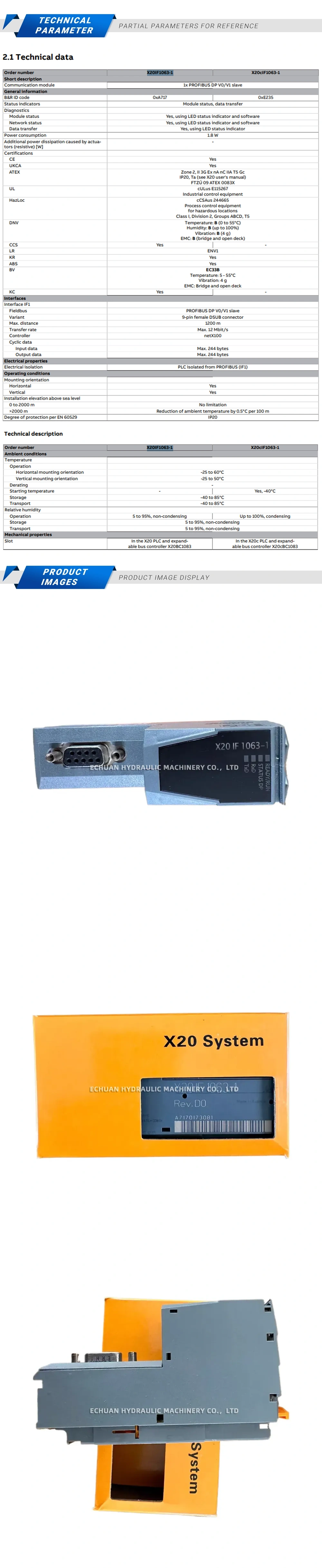

Technical Specifications:
- Model: X20IF1063-1
- Product Type: POWERLINK Interface Module (Controlled Node)
- Fieldbus Protocol: POWERLINK V2
- Interfaces: 1x POWERLINK (2x RJ45 with integrated hub), 1x X2X Link
- Cycle Time: Minimum 400 µs
- Maximum I/O Modules: Up to 253 X20 modules
- Power Consumption: 1.3 W (from bus), 0.7 W (from internal I/O supply)
B&R X20IF1063-1
Discover the B&R X20IF1063-1, a compact and efficient POWERLINK interface module. This X20 bus controller seamlessly connects I/O modules via X2X Link, serving as a reliable controlled node for demanding industrial automation systems.
