Product Description

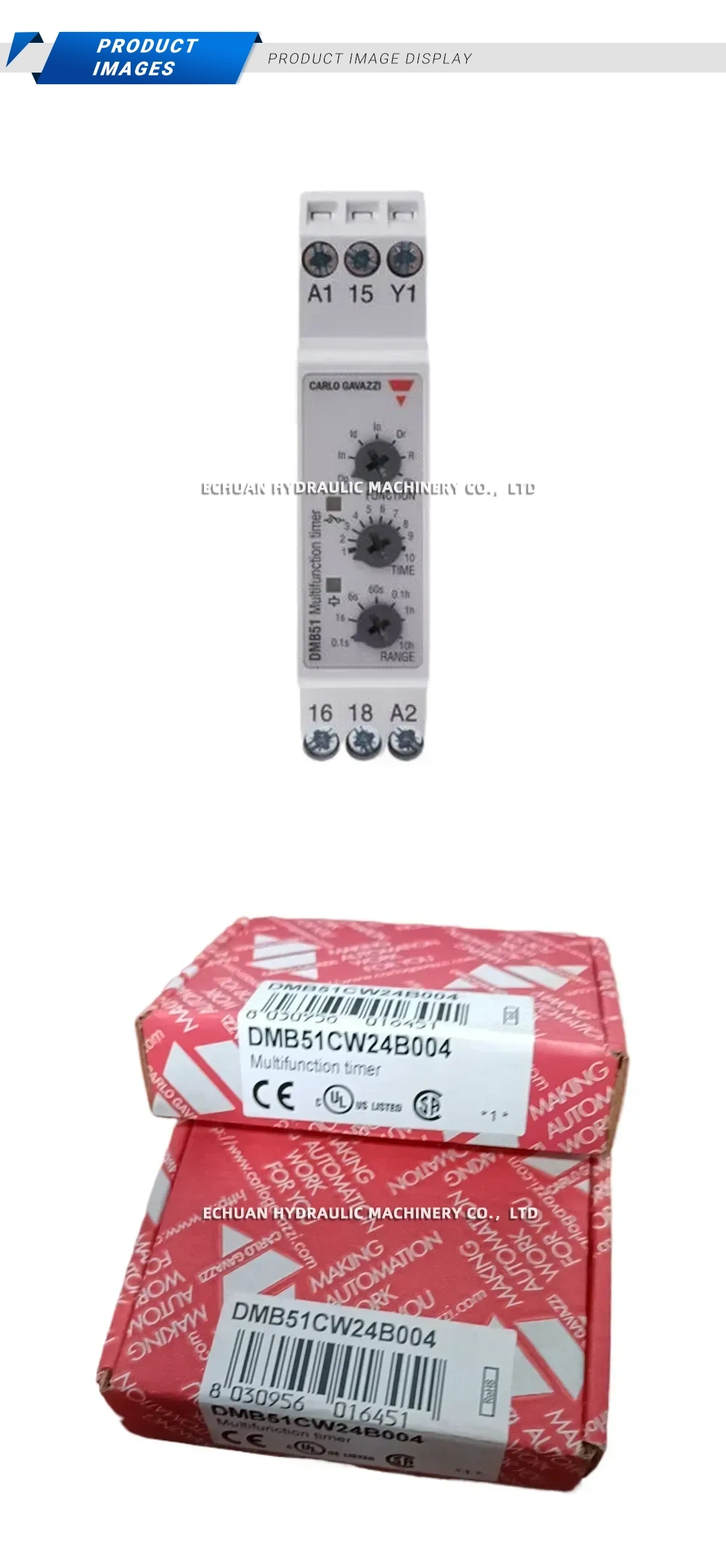

Carlo Gavazzi DMB51CW24B004
The Carlo Gavazzi DMB51CW24B004 is a versatile and compact multi-function timer relay designed for a wide range of industrial automation applications. Housed in a slim 17.5 mm DIN-rail mountable case, it offers seven different timing functions, including delay on operate, interval, and recycler modes. This timer features a broad time range from 0.1 seconds to 100 hours, easily configured via a rotary switch. Its multi-voltage input (24 VDC and 24-240 VAC) provides excellent flexibility for various control systems. An SPDT relay output and clear LED indicators for power and output status make it a reliable and user-friendly choice for controlling loads in timing-critical processes.
Technical Specifications:
- Type: Multi-function Timer Relay
- Time Range: 0.1 seconds to 100 hours
- Supply Voltage: 24 VDC and 24 to 240 VAC
- Output: 1 x SPDT relay (8 A @ 250 VAC)
- Functions: 7 selectable timing functions
- Mounting: DIN-rail mount
- Housing Width: 17.5 mm
Carlo Gavazzi DMB51CW24B004
Shop the Carlo Gavazzi DMB51CW24B004, a compact 17.5mm multi-function timer relay with a 0.1s-100h time range, 24-240V AC/DC supply, and SPDT relay output. Ideal for industrial automation and control panels.
