Product Description

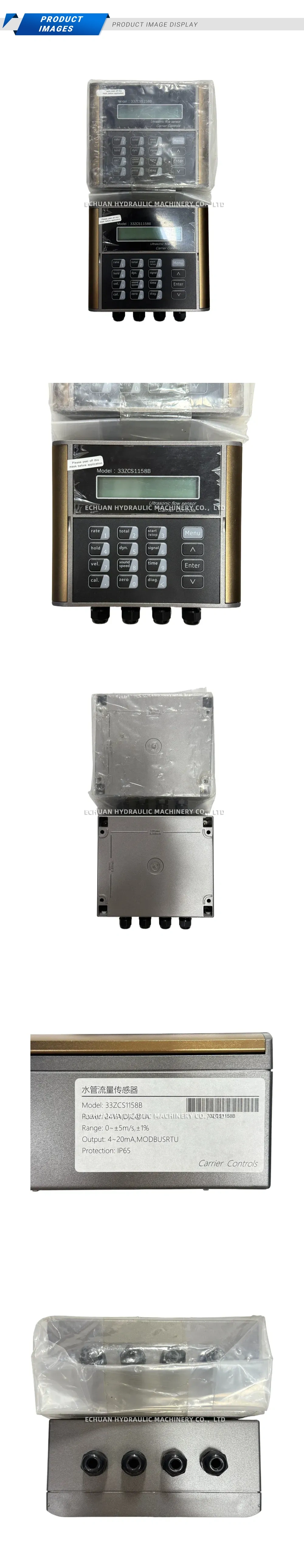

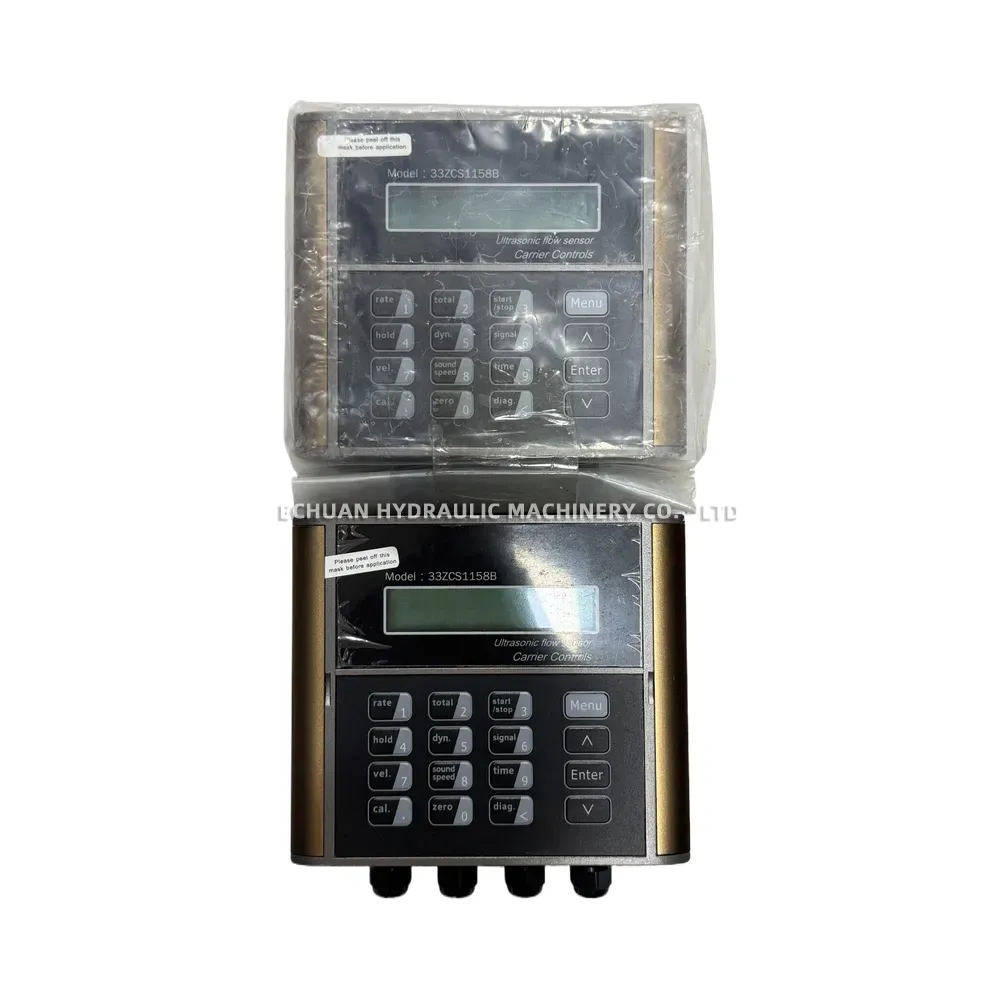

Carrier Controls 33ZCS1158B Ultrasonic Flow Sensor

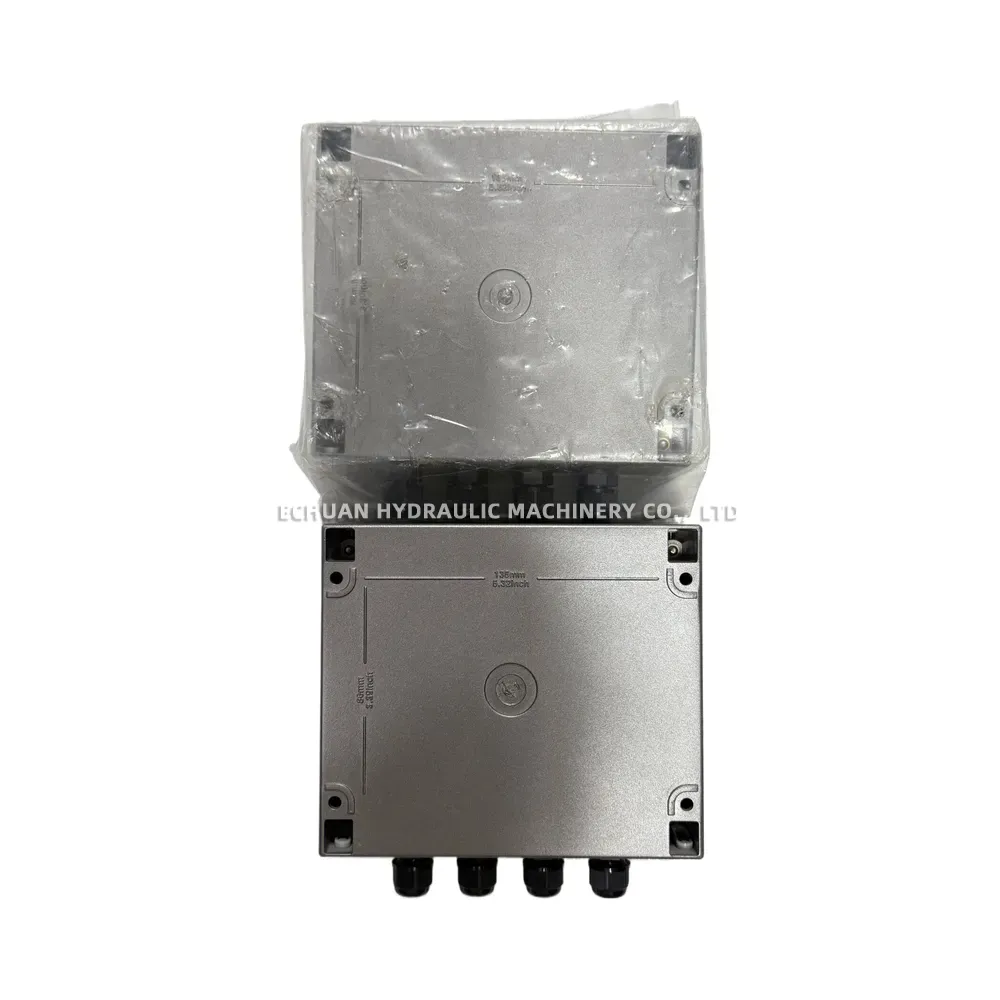

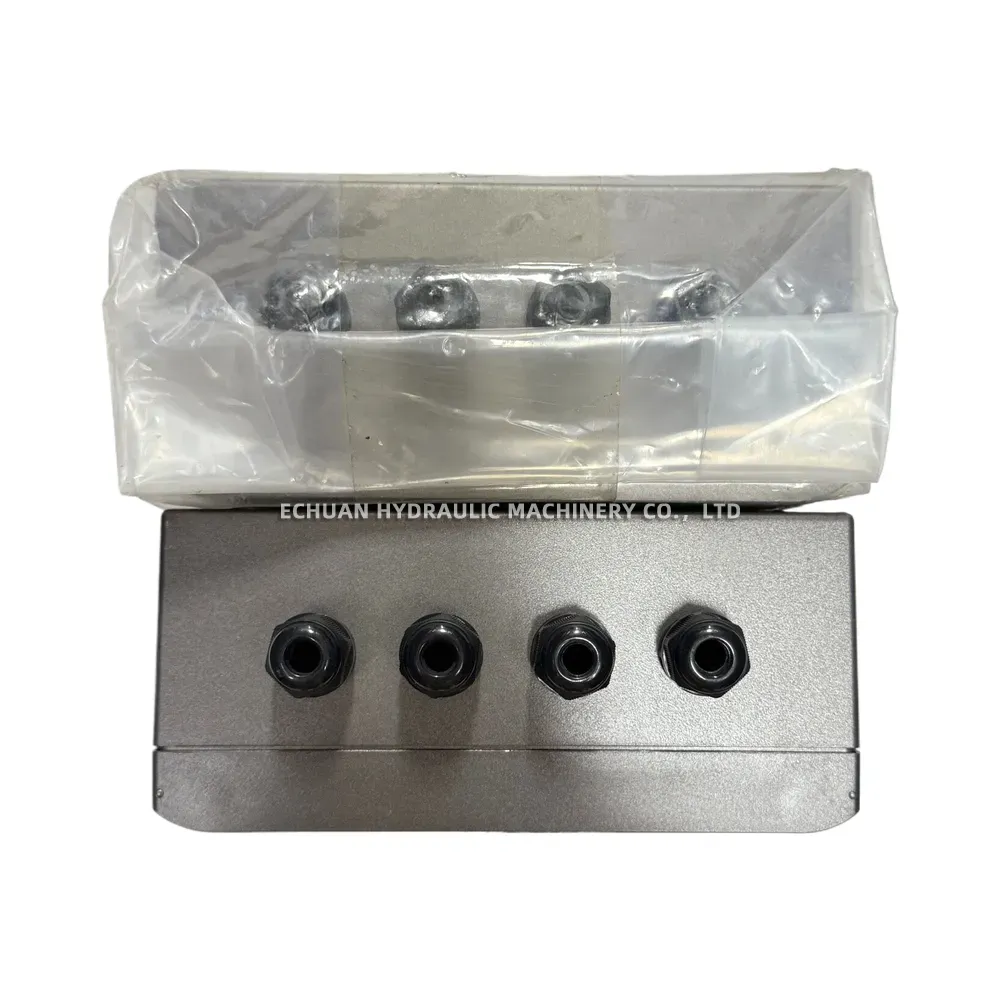

The Carrier Controls 33ZCS1158B is a high-performance ultrasonic flow sensor specifically designed for accurate water pipe flow measurement in commercial and industrial HVAC applications. This advanced sensor features a built-in LCD display and a user-friendly keypad, allowing for seamless local operation, monitoring, and configuration. Engineered for reliability in demanding environments, it offers precise flow tracking with versatile output options, including standard 4~20mA analog and MODBUS RTU digital communication. Its robust IP65-rated enclosure ensures excellent protection against dust and water ingress, while the bottom-mounted cable glands provide secure and organized wiring connections.

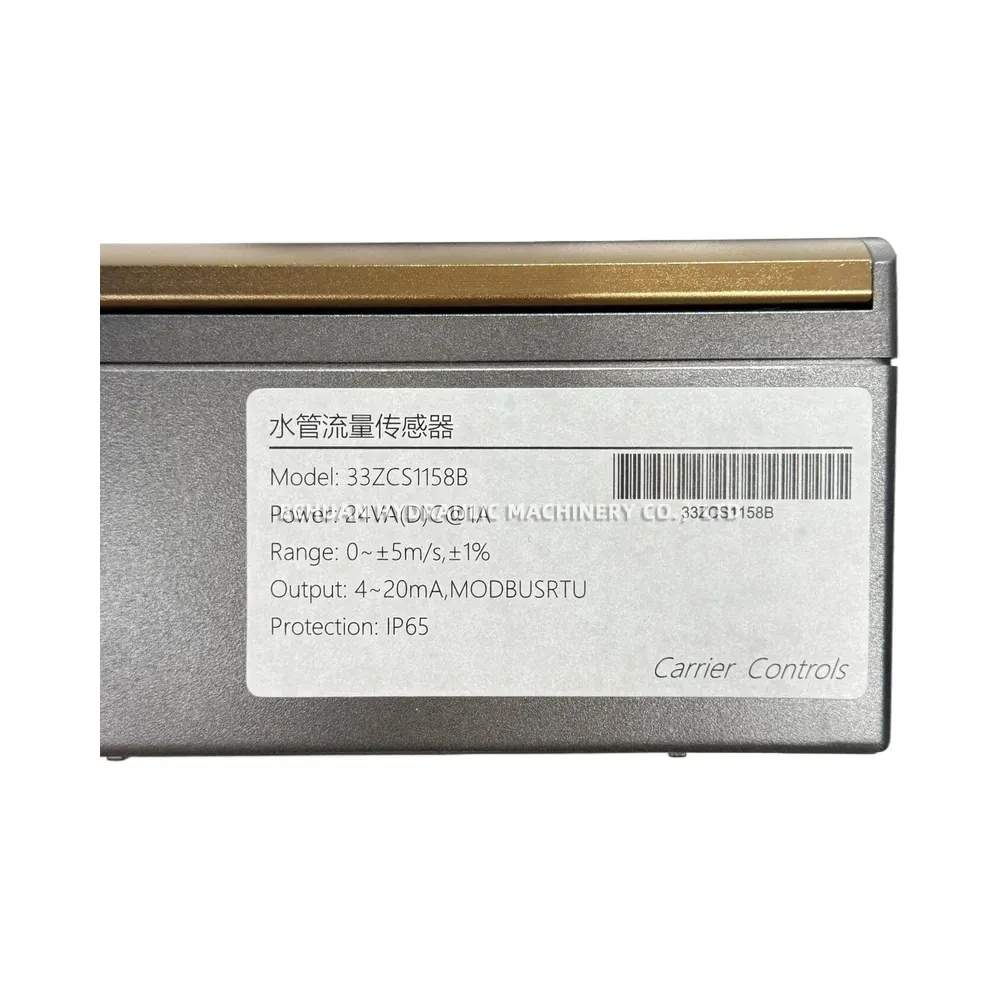

Technical Specifications:
- Brand: Carrier Controls
- Model: 33ZCS1158B
- Power Supply: 24 VAC/VDC @ 1A
- Measurement Range: 0 ~ ±5m/s
- Accuracy: ±1%
- Output Options: 4~20mA, MODBUS RTU
- Protection Rating: IP65 Enclosure

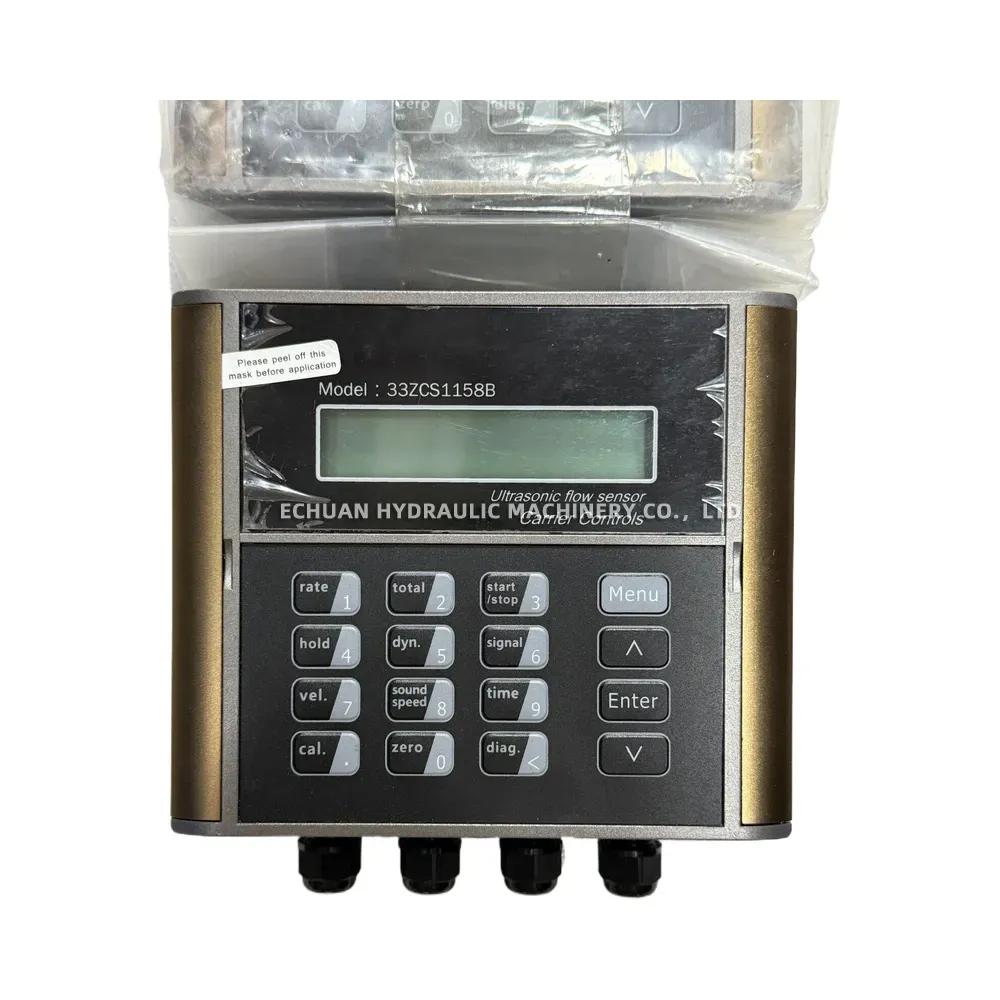

- User Interface: Integrated LCD display with keypad
Carrier Controls 33ZCS1158B Ultrasonic Flow Sensor
Optimize your water system monitoring with the Carrier Controls 33ZCS1158B Ultrasonic Flow Sensor. Featuring an IP65 rating, local LCD display, and 4-20mA/MODBUS RTU outputs, this sensor delivers highly accurate (±1%) flow measurements for commercial water pipe applications.
