Product Description

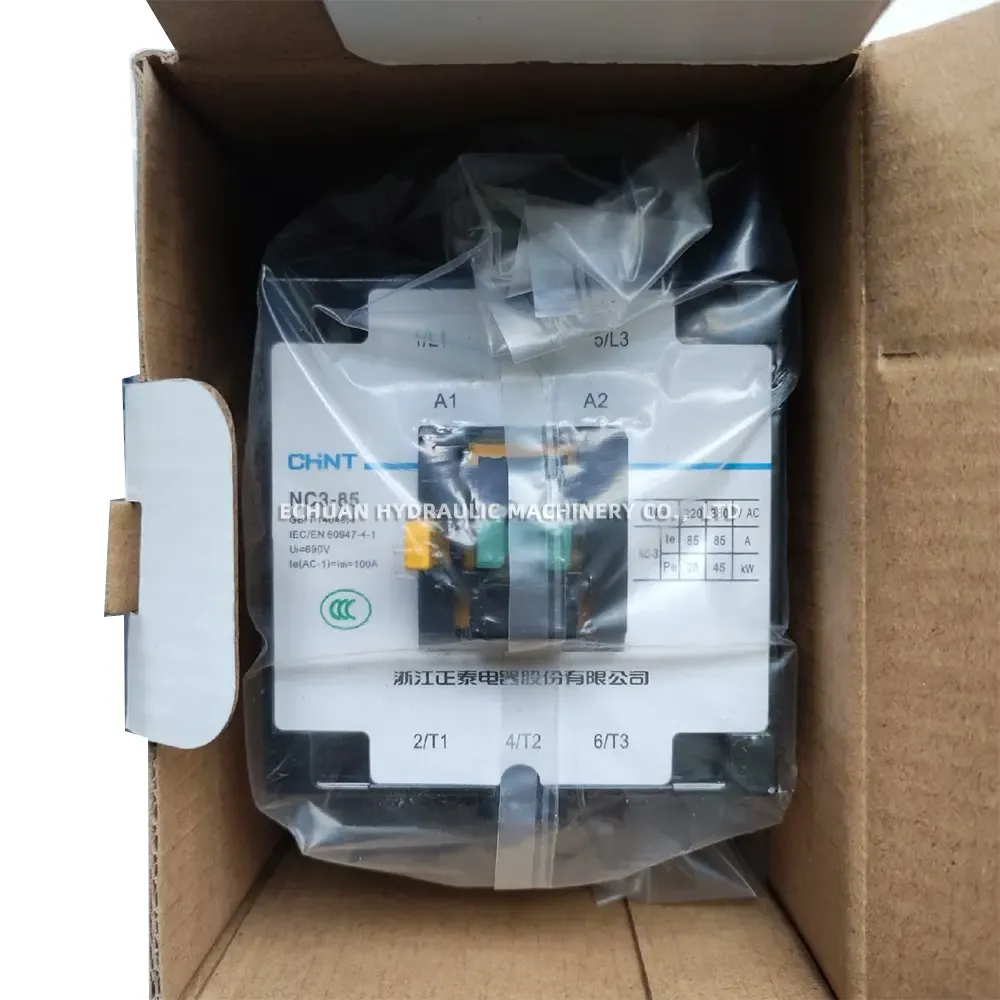

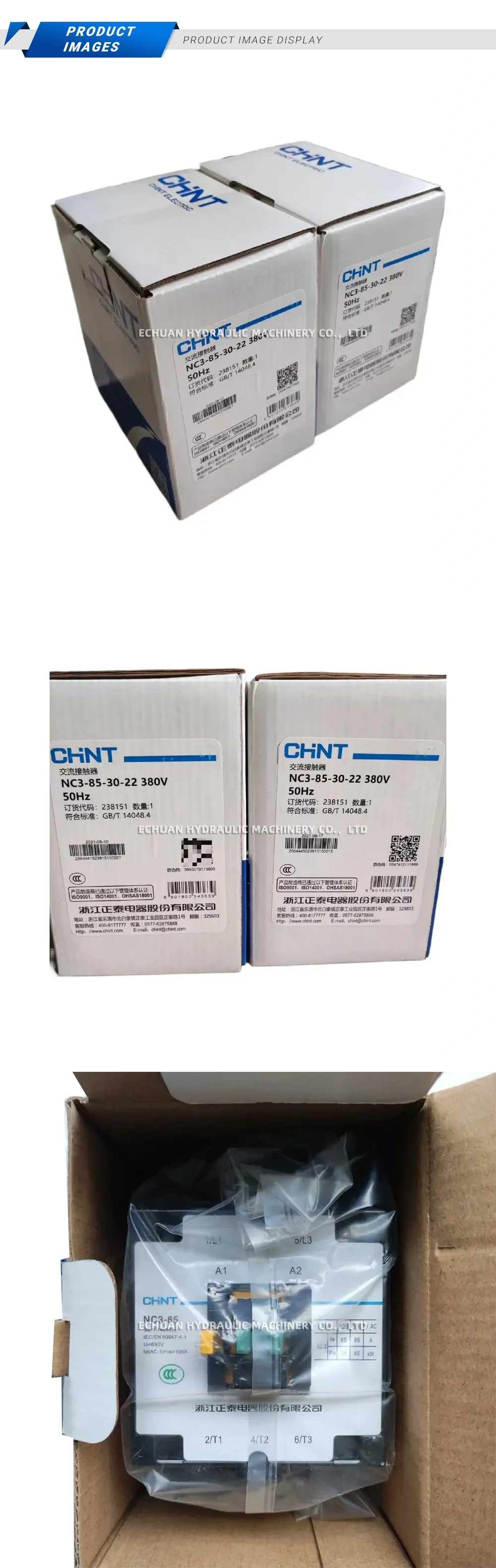

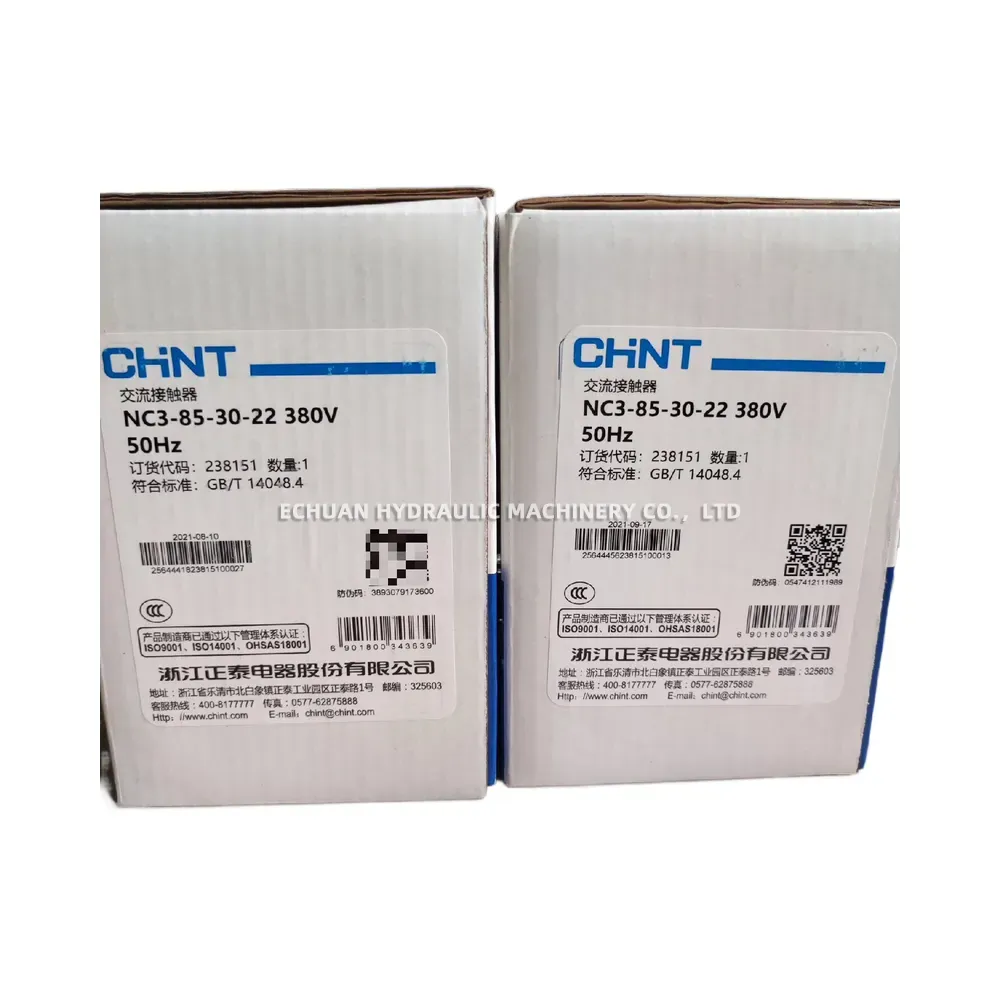

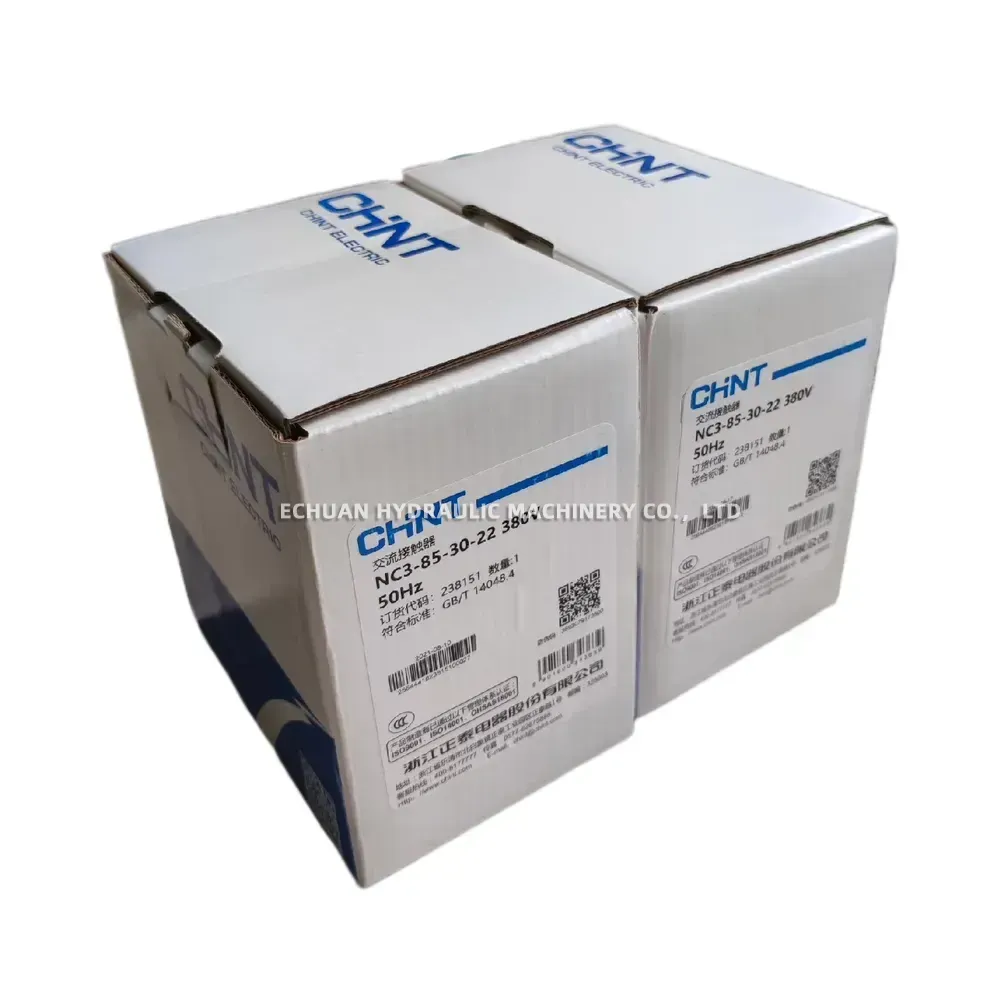

CHINT NC3-85-30-22 380V AC Contactor
The CHINT NC3-85-30-22 is a highly reliable and durable AC contactor engineered for making and breaking electrical circuits, as well as for the frequent starting and controlling of AC motors. Featuring a coil rated voltage of 380V AC (50Hz), this robust device is equipped with 3 main poles and includes 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts for versatile control configurations. It delivers a rated operational current of 85A under the AC-3 utilization category (220V/380V) and can handle a rated control power of up to 45kW at 380V. Manufactured by Zhejiang Chint Electrics Co., Ltd., this contactor meets rigorous international standards, including GB/T 14048.4 and IEC/EN 60947-4-1, and carries CCC certification to guarantee maximum safety and performance in demanding industrial environments.
Technical Specifications:
- Brand: CHINT
- Model: NC3-85-30-22
- Coil Rated Voltage: 380V AC, 50Hz
- Rated Operational Current (Ie): 85A (AC-3 at 220V/380V)
- Rated Control Power (Pe): 22kW at 220V / 45kW at 380V (AC-3)
- Conventional Thermal Current (Ith): 100A (AC-1)
- Rated Operational Voltage (Ue): Up to 690V
- Contact Configuration: 3 Main Poles + 2NO & 2NC Auxiliary Contacts
- Standards & Compliance: GB/T 14048.4, IEC/EN 60947-4-1, CCC Certified
CHINT NC3-85-30-22 380V AC Contactor
Shop the CHINT NC3-85-30-22 380V AC Contactor. This high-performance 85A, 45kW industrial contactor features 3 main poles, 2NO+2NC auxiliary contacts, and IEC/EN 60947-4-1 compliance for safe, reliable motor control and heavy-duty circuit switching.
| Brand | CHINT |
|---|---|
| Model | NC3-85-30-22 380V |
| Part No. | 843598368441 |
| Category | Electrical |
