Product Description

CHNT NVF2G-2.2/PS4 Variable Frequency Drive

The CHNT NVF2G-2.2/PS4 is a high-performance variable frequency drive (VFD) from the reliable NVF2G series, specifically engineered for variable torque applications. This 2.2kW inverter is ideal for controlling the speed of AC induction motors in systems like pumps, fans, and blowers, leading to significant energy savings and improved process control. It operates on a standard 3-phase 380V input and provides a stable, adjustable output to precisely match motor speed with load demands. With its IP20 protection rating and robust design, the NVF2G-2.2/PS4 ensures dependable performance in various industrial environments.

Technical Specifications:

  • Brand: CHNT

  • Model: NVF2G-2.2/PS4

  • Type: Variable Torque VFD

  • Rated Power: 2.2kW

  • Input Voltage: 3-Phase AC 380V

  • Input Frequency: 50Hz / 60Hz

  • Output Voltage: 3-Phase 0V ~ 380V

  • Output Current: 5.0A

  • Output Frequency Range: 0Hz ~ 120Hz

  • Protection Class: IP20

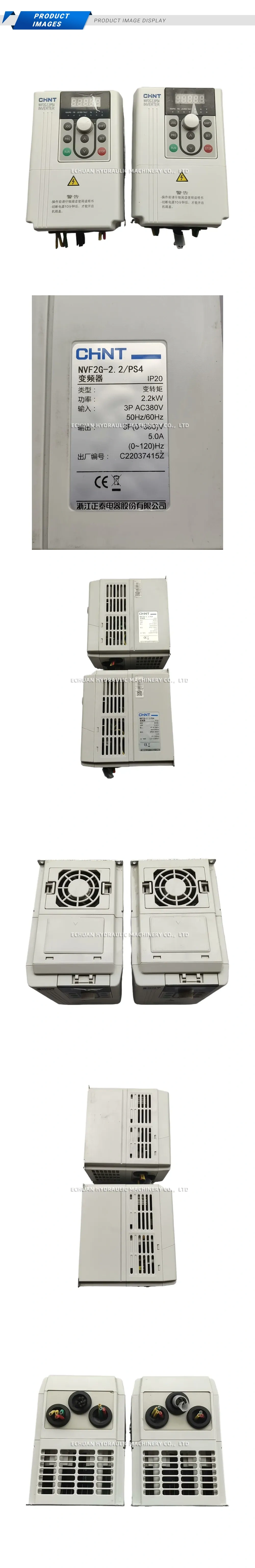

CHNT NVF2G-2.2/PS4 Inverter Description

CHNT NVF2G-2.2/PS4 Inverter

Shop the CHNT NVF2G-2.2/PS4, a 2.2kW variable frequency drive for 3-phase 380V motors. This VFD offers efficient variable torque control for pumps and fans, ensuring energy savings and optimal performance.
