Product Description

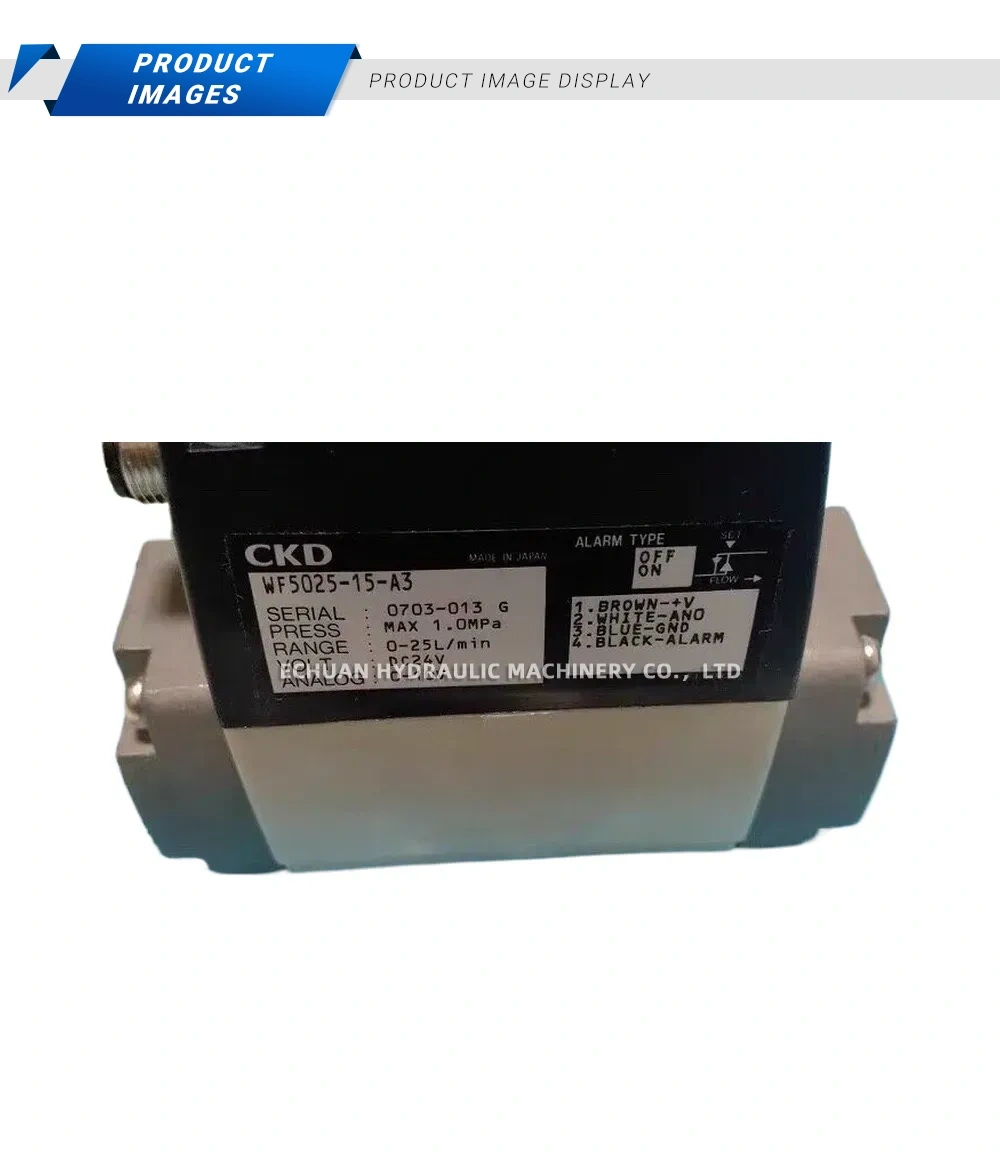

CKD WF5025-15-A3 Flow Sensor
The CKD WF5025-15-A3 is a highly reliable industrial flow sensor designed for precise fluid monitoring and control applications. Manufactured in Japan by industry leader CKD, this sensor offers an accurate measurement range of 0 to 25 L/min and can safely withstand a maximum operating pressure of 1.0 MPa. It operates efficiently on a DC24V power supply and provides a standard 0-10V analog output for seamless integration with PLCs and automated industrial control systems. Additionally, it features a configurable ON/OFF alarm function to ensure optimal system safety, backed by a straightforward 4-wire connection setup.
Technical Specifications:
- Brand: CKD
- Model: WF5025-15-A3
- Flow Range: 0 – 25 L/min
- Maximum Pressure: 1.0 MPa
- Operating Voltage: DC24V
- Analog Output: 0 – 10V
- Alarm Function: Configurable OFF/ON Type
- Wiring Configuration: 1. Brown (+V) | 2. White (Analog Output) | 3. Blue (GND) | 4. Black (Alarm)
- Country of Origin: Made in Japan
CKD WF5025-15-A3 Flow Sensor
Genuine CKD WF5025-15-A3 industrial flow sensor. Features a 0-25 L/min measurement range, 1.0 MPa max pressure, DC24V operation, 0-10V analog output, and built-in alarm capabilities. Made in Japan for precise and reliable fluid control.
