Product Description

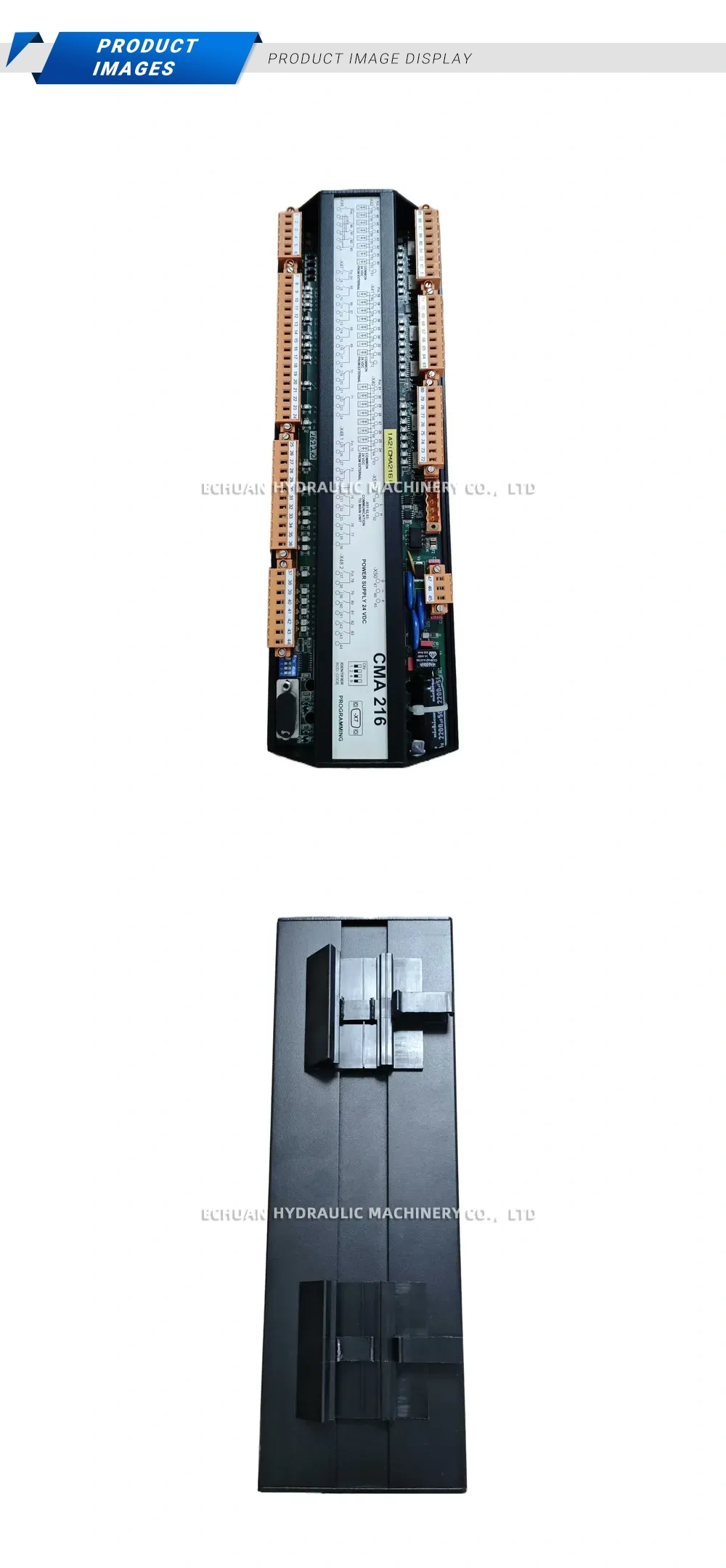

CMA 216 Module
The Bachmann CMA 216 is a high-performance analog input module designed for the M1 automation system. It provides 16 single-ended channels for the precise acquisition of standard analog signals, such as voltage (±10 V) and current (0/4 to 20 mA). With its high 16-bit resolution and rapid conversion time, the CMA 216 is ideal for demanding industrial applications requiring accurate and reliable data measurement. Its robust design ensures stable operation in harsh environments, making it a trusted component in sectors like renewable energy, machine building, and process control.
Technical Specifications:
- Module Type: 16-channel Analog Input Module (single-ended)
- Input Signal Ranges: Voltage (±10 V, 0 to 10 V), Current (0 to 20 mA, 4 to 20 mA via external shunt)
- Resolution: 16 bit
- System Compatibility: Bachmann M1 Controller System
- Operating Temperature: -30 °C to +70 °C
CMA 216 Module
Purchase the Bachmann CMA 216, a reliable 16-channel analog input module with 16-bit resolution for the M1 controller system. Ideal for high-precision voltage and current measurement in industrial automation.
| Brand | CMA |
|---|---|
| Model | 216 Module |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/cma-216-module |
