Product Description

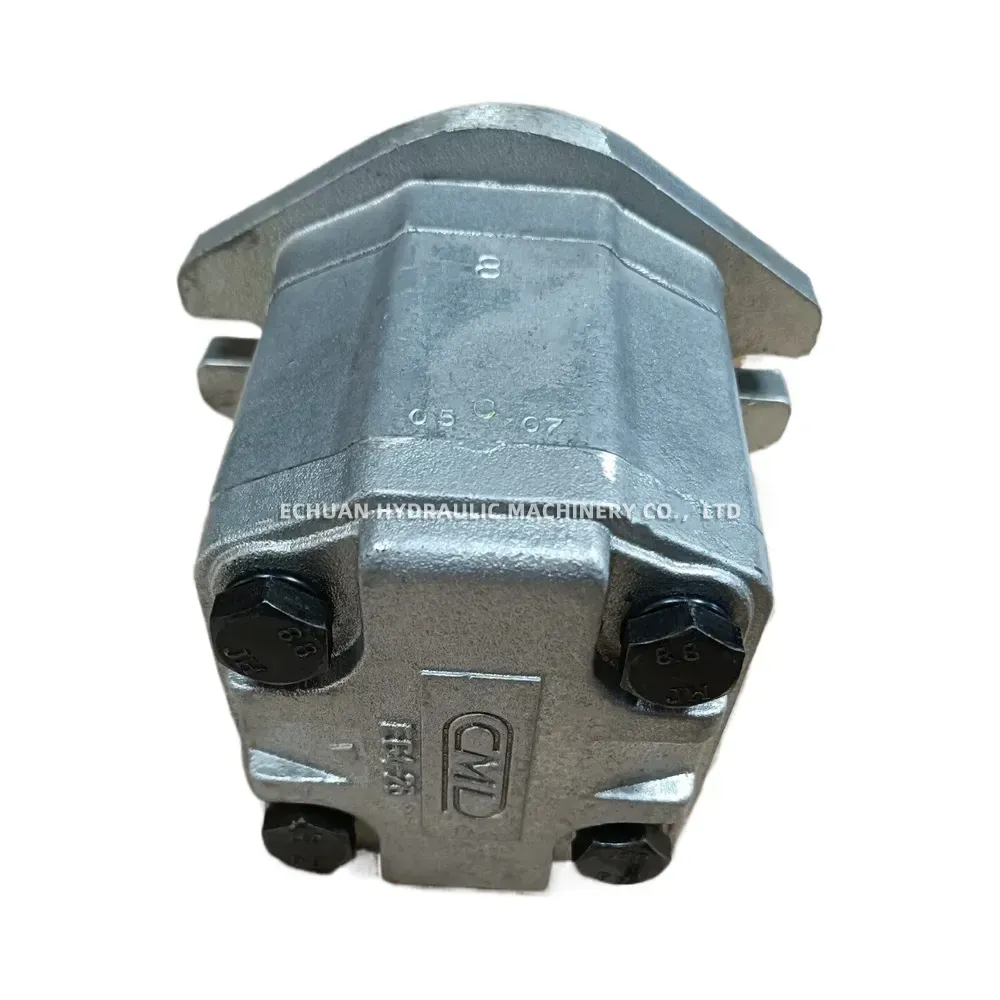

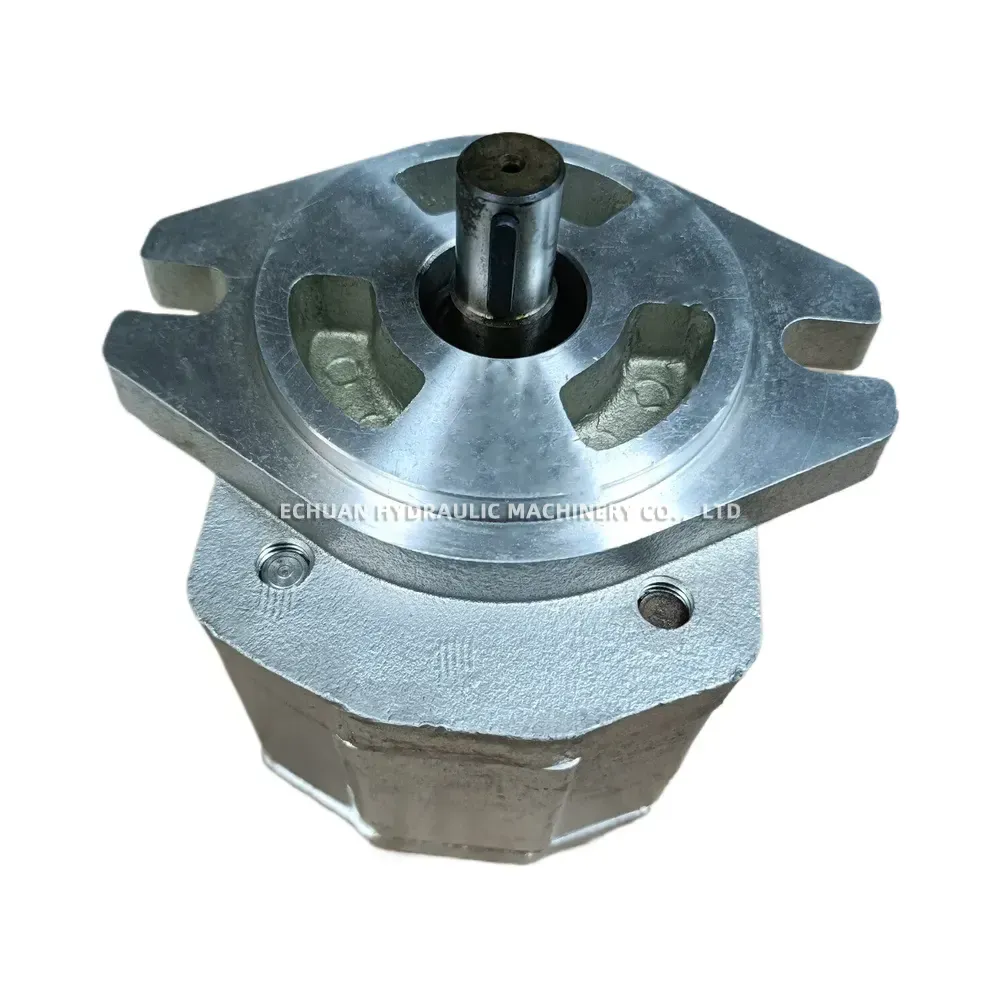

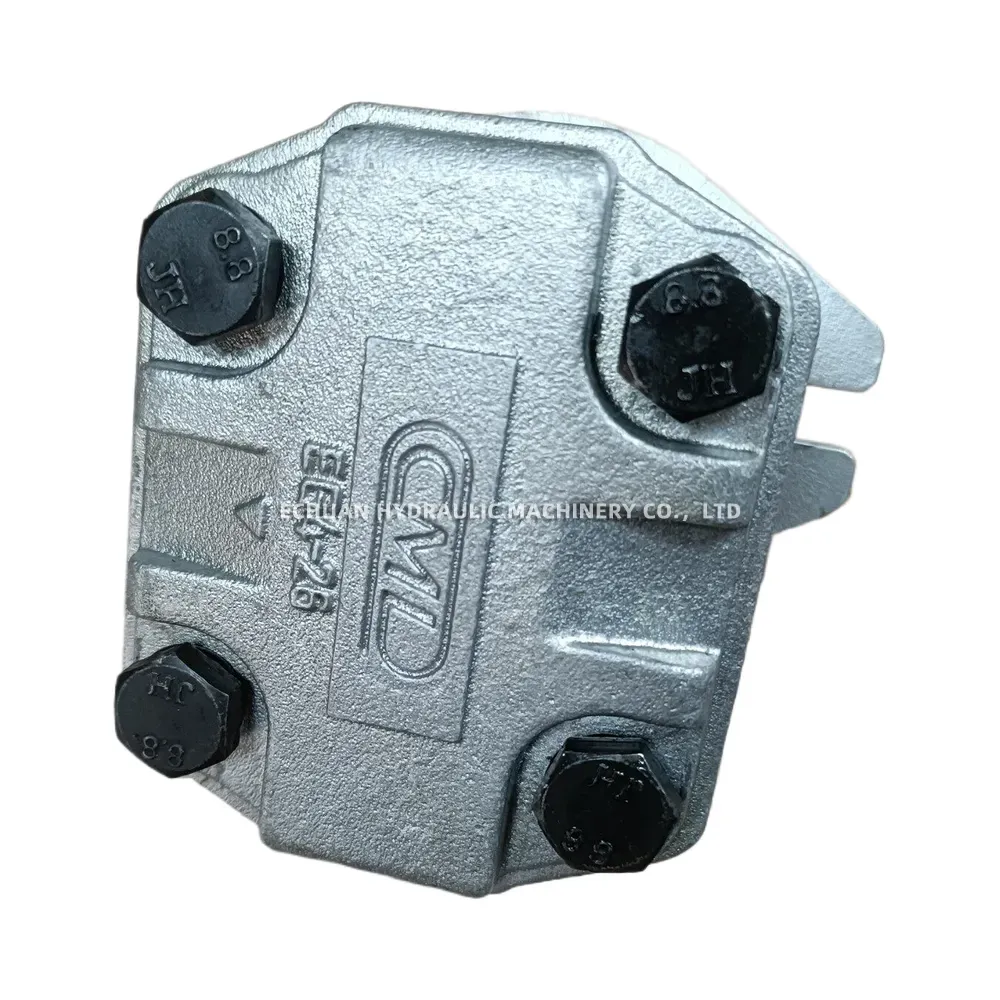

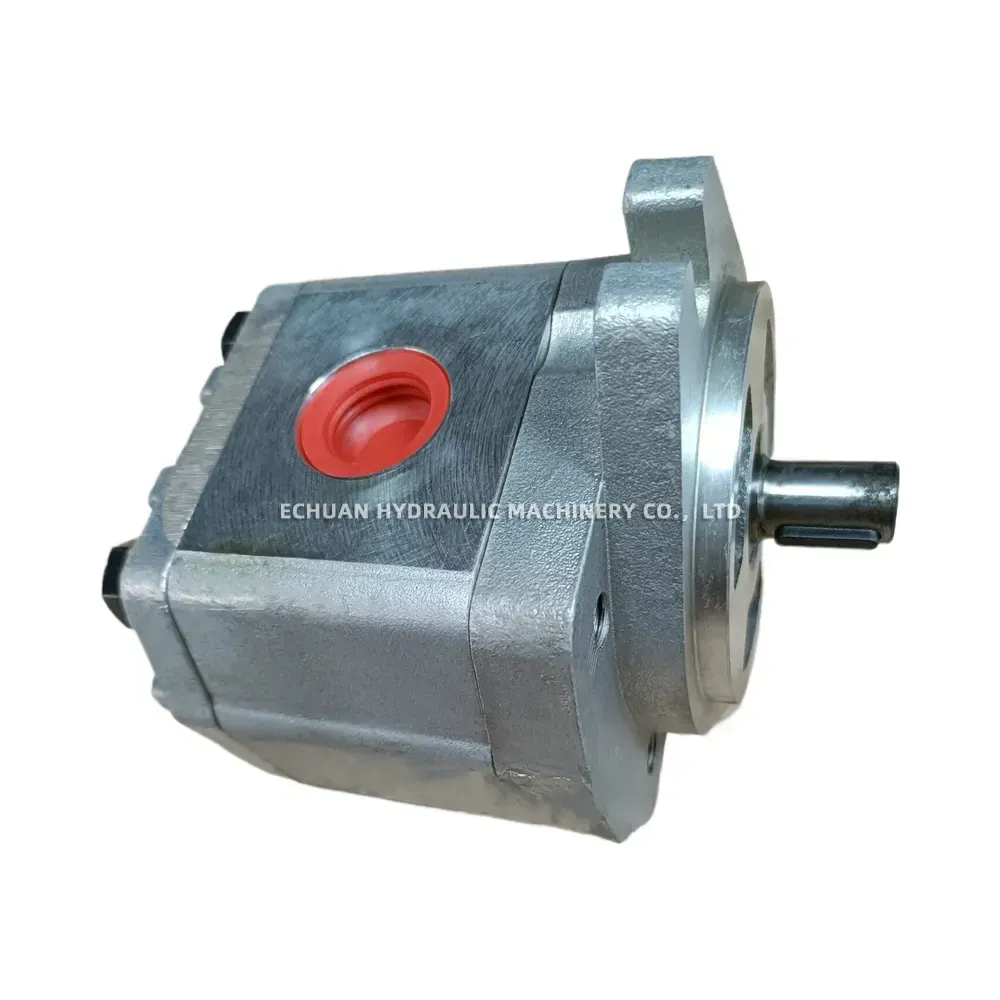

CML EG4-26 Hydraulic Gear Pump

The CML EG4-26 is a high-performance, high-pressure external hydraulic gear pump engineered for reliability and efficiency in demanding industrial applications. Constructed with a durable cast aluminum alloy housing, this pump offers excellent heat dissipation and a remarkable power-to-weight ratio. It features a standard two-bolt mounting flange and a precision-machined keyed drive shaft, ensuring secure installation and seamless power transmission. Designed for robust versatility, the EG4-26 is an ideal fluid power component for hydraulic power units, heavy machinery lubrication, and comprehensive oil supply systems, delivering consistent flow and a long operational service life.

Technical Specifications:

  • Brand: CML
  • Model: EG4-26
  • Pump Type: High-pressure hydraulic external gear pump
  • Housing Material: Cast aluminum alloy
  • Mounting Flange: Two-bolt mounting flange
  • Spigot (Pilot) Diameter: 82.55 mm
  • Drive Shaft: Keyed drive shaft, 15.88 mm diameter
  • Mounting Hole Center Spacing: 106 mm
  • Port Configuration: Side ports (supplied with protective plastic caps)
  • End Cover: Bolted end cover secured by four hex bolts
  • Primary Applications: Hydraulic power units, machinery lubrication, and oil supply systems

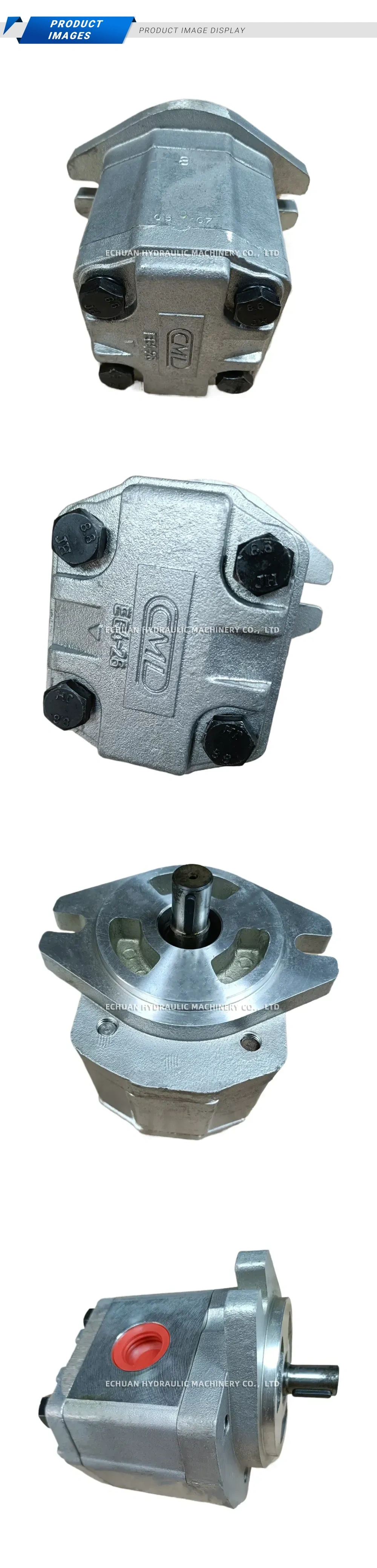

CML EG4-26 Hydraulic Gear Pump Description

CML EG4-26 Hydraulic Gear Pump

Optimize your industrial fluid systems with the CML EG4-26 High-Pressure Hydraulic Gear Pump. Built with a durable cast aluminum housing, a 15.88mm keyed shaft, and a standard two-bolt flange (82.55mm pilot), this efficient gear pump is the perfect solution for hydraulic power units and machinery lubrication. Ensure reliable oil supply and peak performance for your equipment.

BrandCML
ModelEG4-26
Part No.1002395474447
CategoryHydraulic pumps
