Product Description

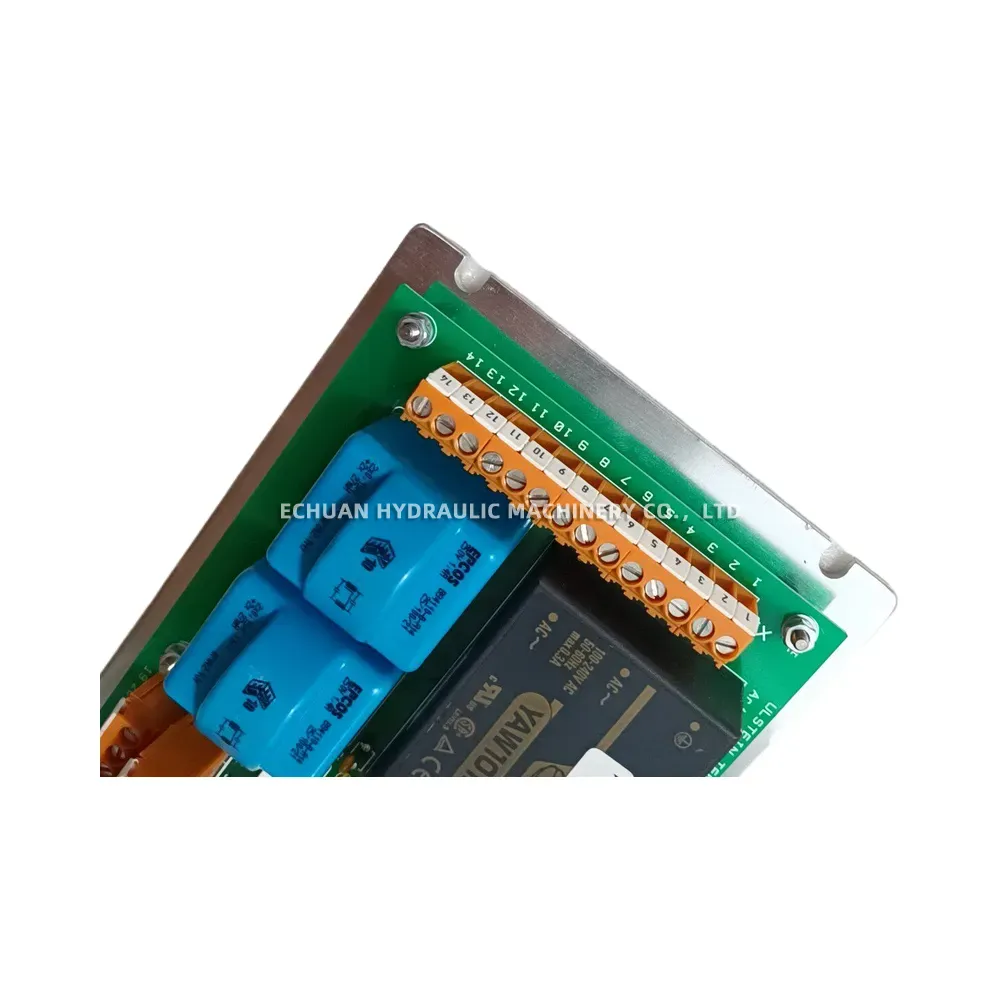

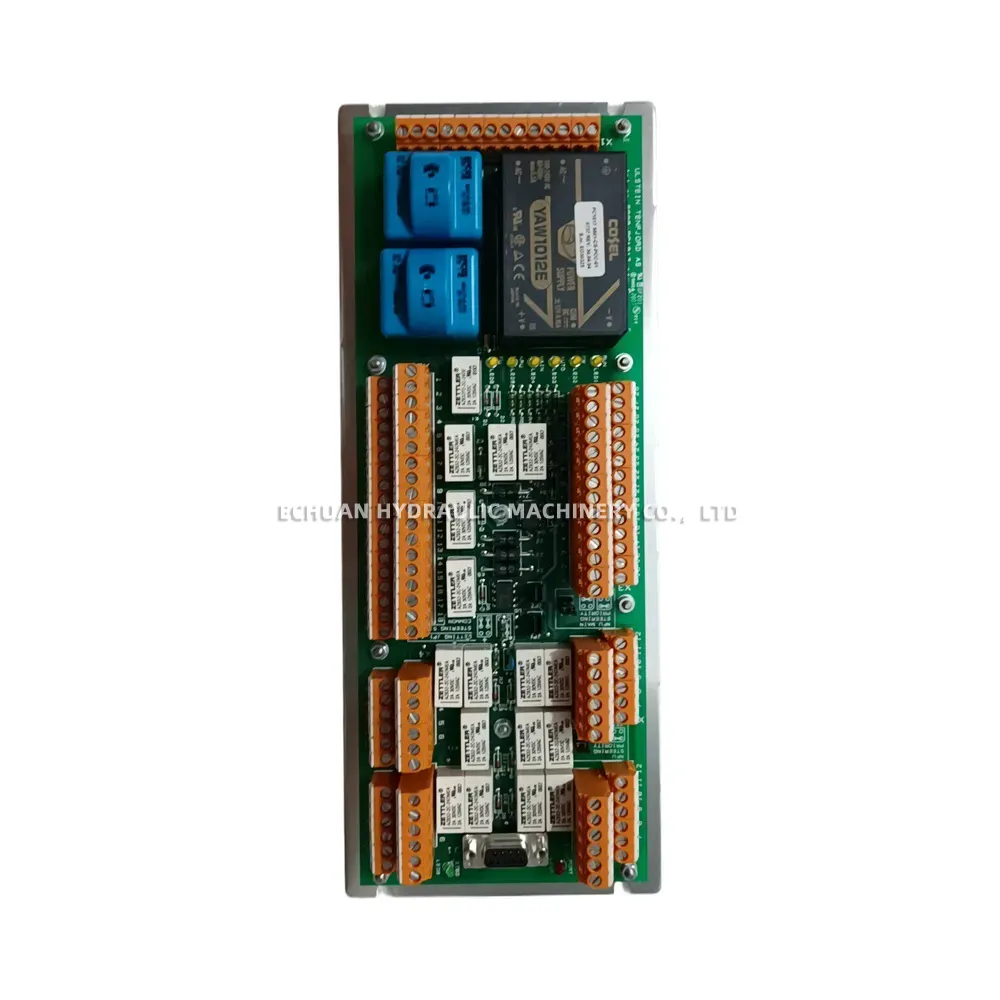

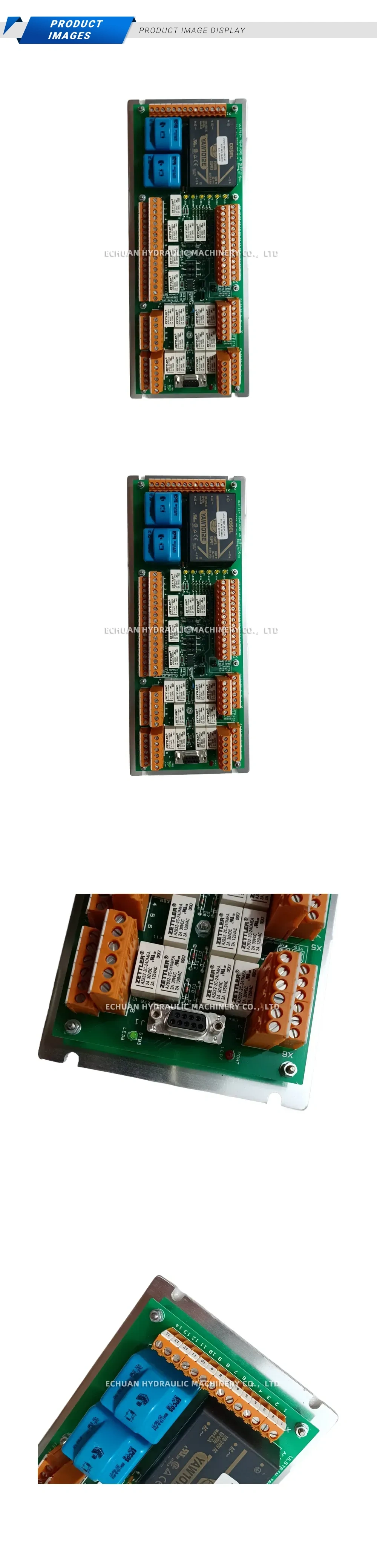

Cofel UL5TFIN Industrial Control Board / PCB Assembly
The Cofel UL5TFIN is a robust industrial control board assembly designed for demanding automation and control applications, commonly found in elevator systems. This PCB is engineered for reliability, featuring high-quality components such as ZETTLER relays and EPCOS capacitors. It includes an integrated YAWTOISE/COFEL switch-mode power supply, allowing for a wide input voltage range of 100-240V AC and providing a stable 24V DC output to power the board’s logic and connected devices. With extensive connectivity options via multiple orange screw terminal blocks and a standard DB9 serial port, the UL5TFIN offers versatile integration possibilities for complex control tasks.
Technical Specifications:
- Model: UL5TFIN REV:09D
- Brand: Cofel
- Input Power: 100-240V AC, 50/60Hz, 0.8A
- Onboard Power Supply Output: 24V DC, 3.0A

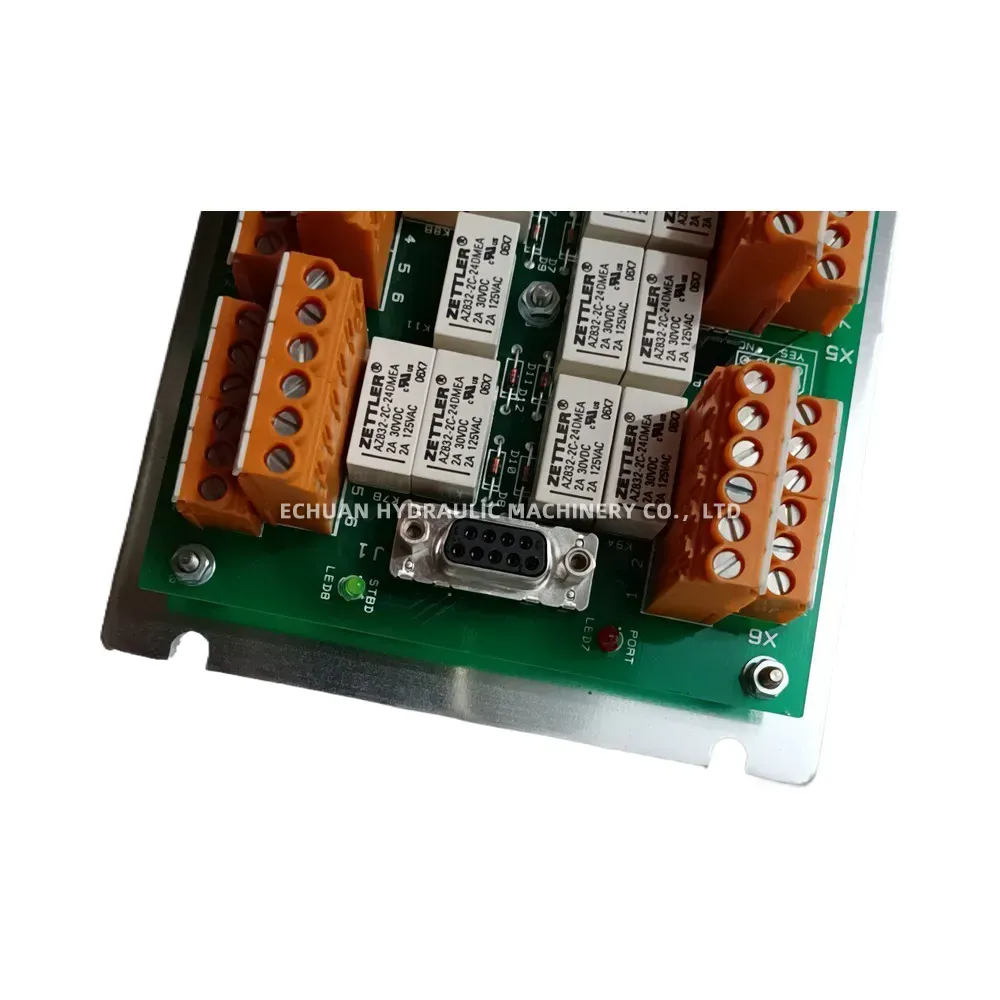

- Relays: ZETTLER AZ832-2C-24DMEA (Rated 2A 30VDC / 2A 125VAC)
- Connectivity: Multiple screw terminal blocks (X1, X5, X6, etc.), 1x DB9 serial port
- Application: Industrial Control, Elevator Systems
Cofel UL5TFIN Industrial Control Board / PCB Assembly
Buy the genuine Cofel UL5TFIN REV:09D industrial control board. This PCB assembly features an integrated 100-240V AC to 24V DC power supply, ZETTLER relays, and DB9 port, making it an ideal replacement for elevator and automation systems.
