Product Description

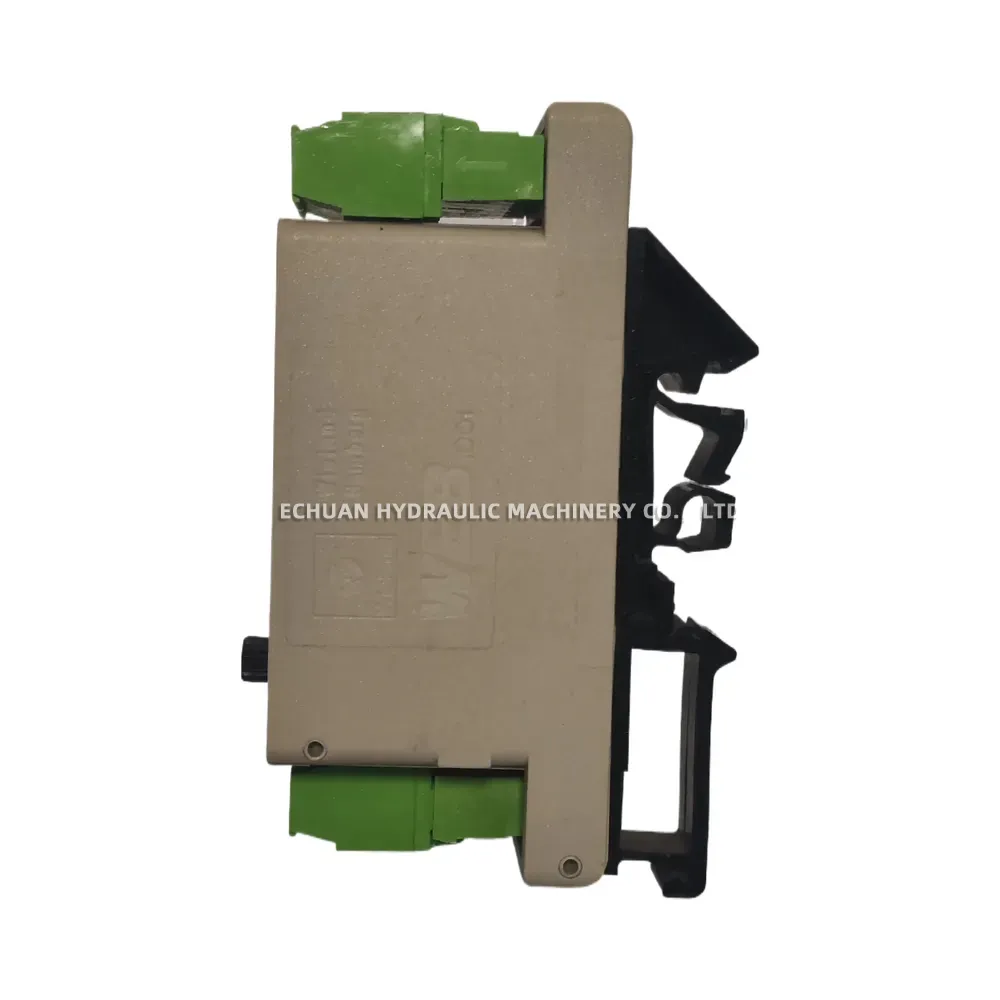

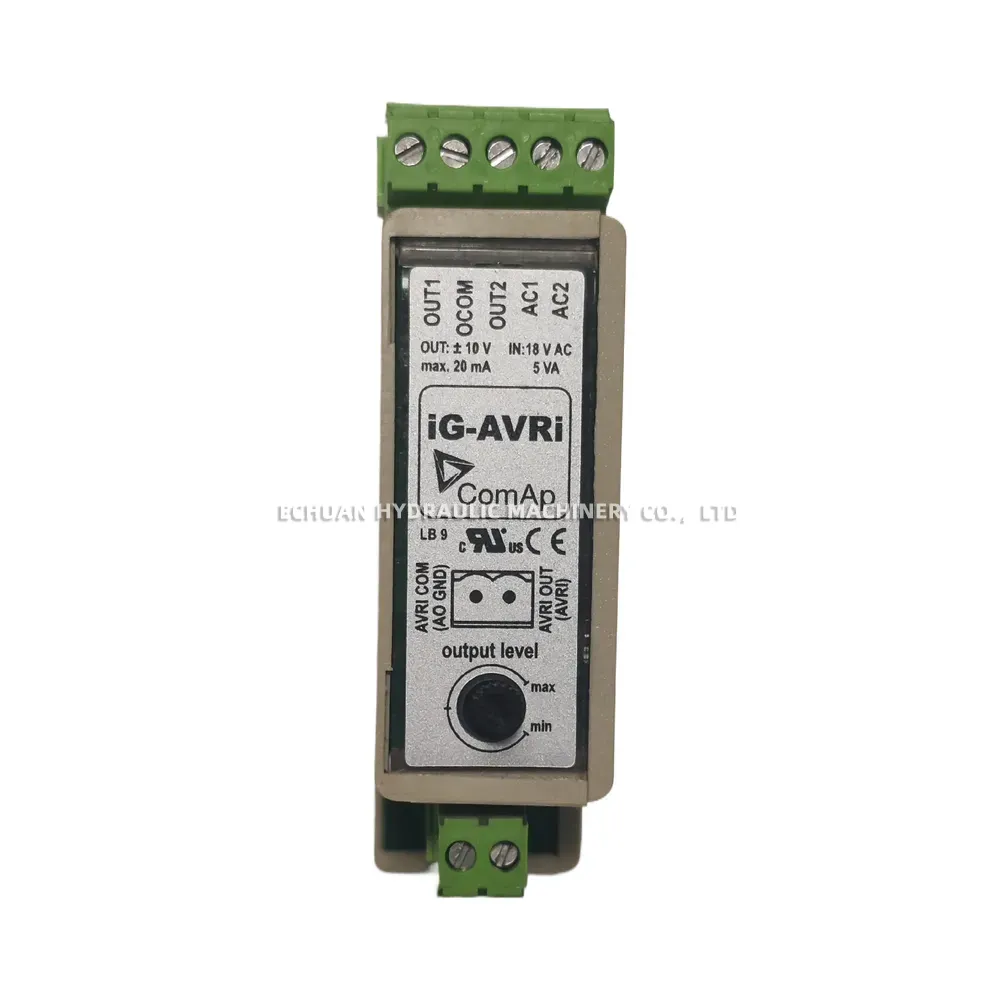

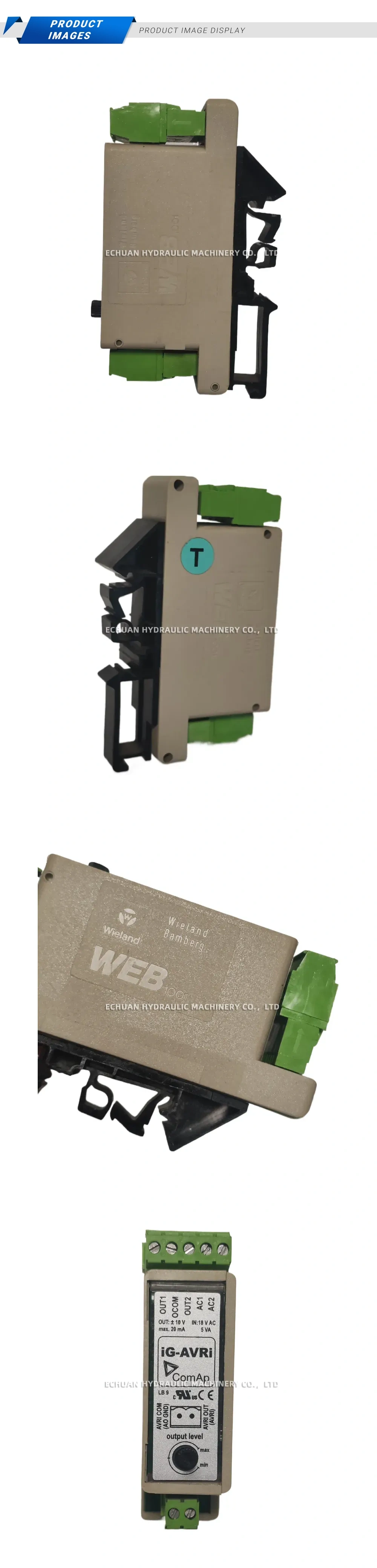

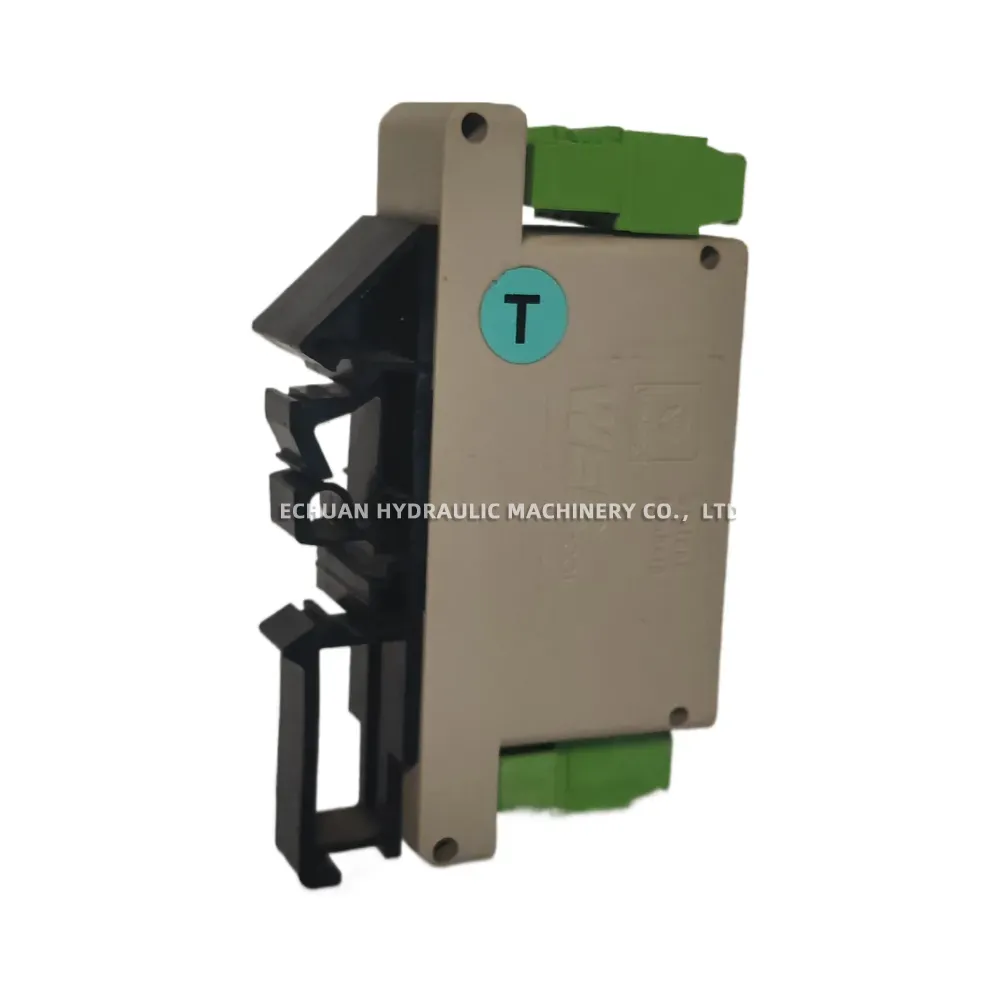

ComAp iG-AVRi Automatic Voltage Regulator Module
The ComAp iG-AVRi is a highly reliable automatic voltage regulator (AVR) interface module designed for seamless integration with industrial generator control systems. Housed in a durable Wieland WEB 1001 DIN rail enclosure with secure green screw terminals, it ensures straightforward installation and maintenance in control panels. The module provides precise voltage regulation capabilities, featuring a built-in adjustable output level potentiometer for fine-tuning. It operates efficiently with an input of 18 V AC (5 VA) and delivers a controlled output of ± 10 V (max. 20 mA). Backed by CE and cRUus certifications, the iG-AVRi guarantees safe, industrial-grade performance for advanced power generation and mains paralleling applications.
Technical Specifications:
- Brand & Model: ComAp iG-AVRi
- Output Voltage / Current: ± 10 V DC / max. 20 mA
- Input Voltage / Power: 18 V AC / 5 VA
- Adjustment: Integrated output level potentiometer (max/min)

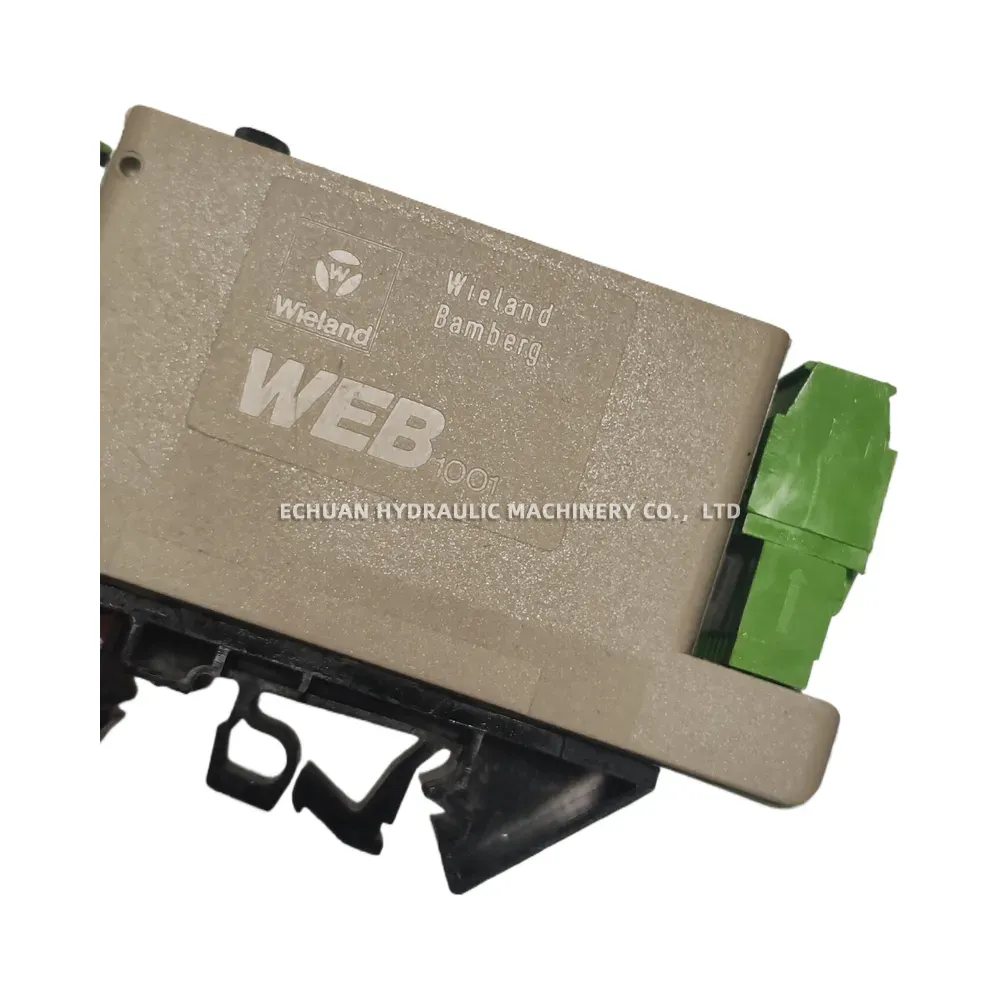

- Enclosure: Wieland WEB 1001 DIN rail mount
- Terminals: Green screw terminal blocks (OUT1, OCOM, OUT2, AC1, AC2)
- Certifications: CE, cRUus
ComAp iG-AVRi Automatic Voltage Regulator Module
Optimize your generator control system with the ComAp iG-AVRi Automatic Voltage Regulator Interface Module. Featuring an adjustable ±10V output, 18VAC input, DIN rail mounting, and CE/cRUus certifications, this module ensures precise and reliable voltage control for industrial power generation applications.
| Brand | ComAp |
|---|---|
| Model | iG-AVRi |
| Part No. | 848811851510 |
| Category | Electrical |
