Product Description

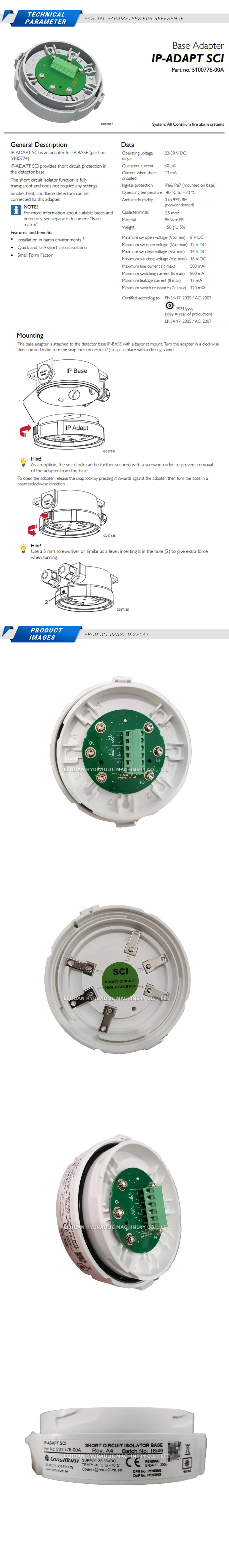

Consilium IP-ADAPT SCI
The Consilium IP-ADAPT SCI is a specialized interface unit designed to seamlessly integrate conventional fire detection zones into a modern Salwico addressable fire alarm system. Housed in a durable IP67-rated enclosure, this adapter is built to withstand harsh environmental conditions, making it ideal for marine and industrial applications. It features a built-in short-circuit isolator (SCI) that enhances system integrity by isolating faults on the conventional zone, preventing them from affecting the main addressable loop. The IP-ADAPT SCI provides a reliable and cost-effective solution for upgrading or extending existing fire detection systems by allowing the use of conventional detectors within an addressable framework.
Technical Specifications:
- Part Number: 5200021-00A
- Operating Voltage: 20-38 VDC (from loop)
- Supervisory Current: 1.5 mA
- Ingress Protection: IP67
- Ambient Temperature: -25°C to +70°C
- Dimensions (W x H x D): 100 x 100 x 50 mm
- Approvals: MED, CPR (EN54-17 & EN54-18)
Consilium IP-ADAPT SCI
The Consilium IP-ADAPT SCI is a robust IP67-rated adapter for integrating conventional fire detection zones into Salwico addressable fire alarm systems, featuring a built-in short-circuit isolator for enhanced system reliability.
