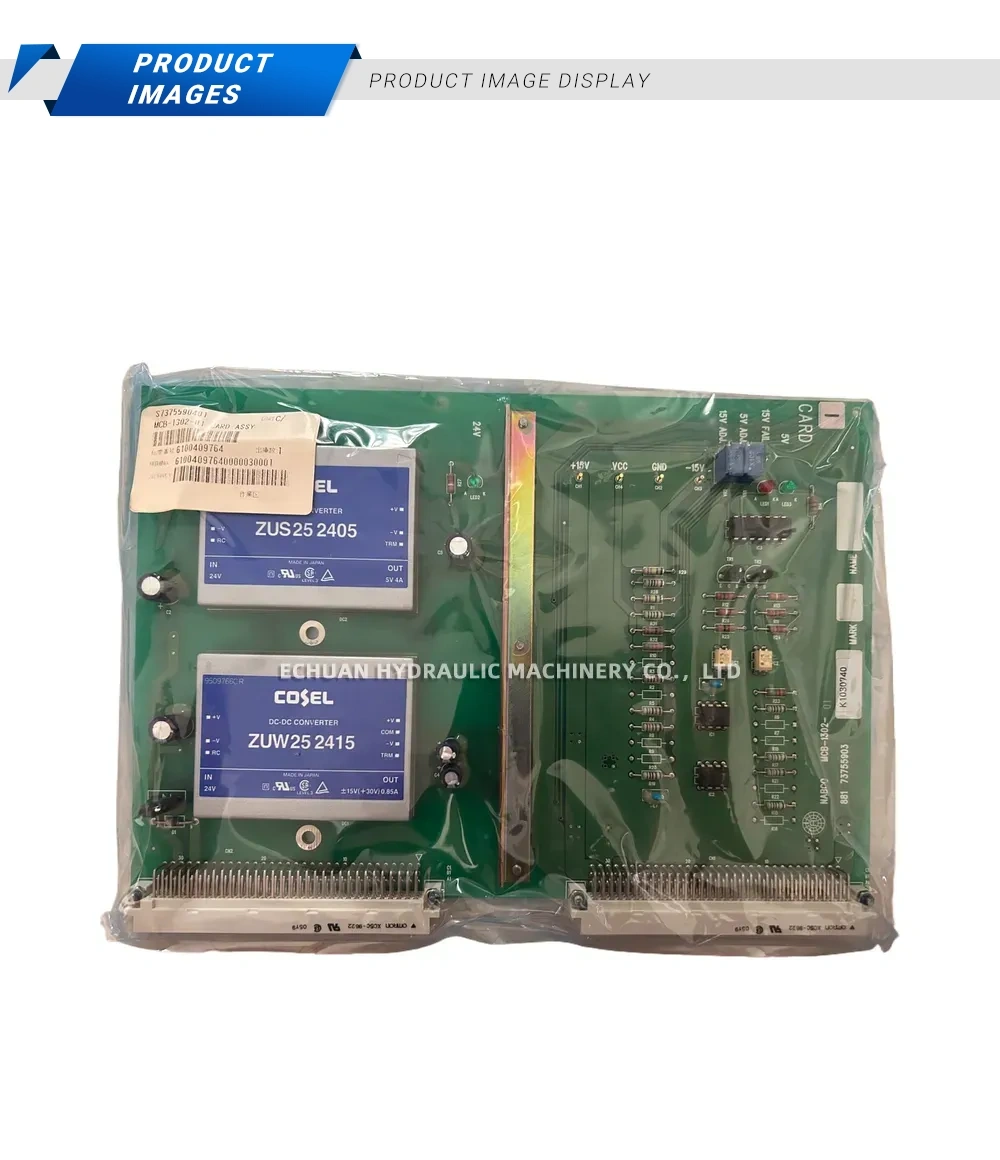

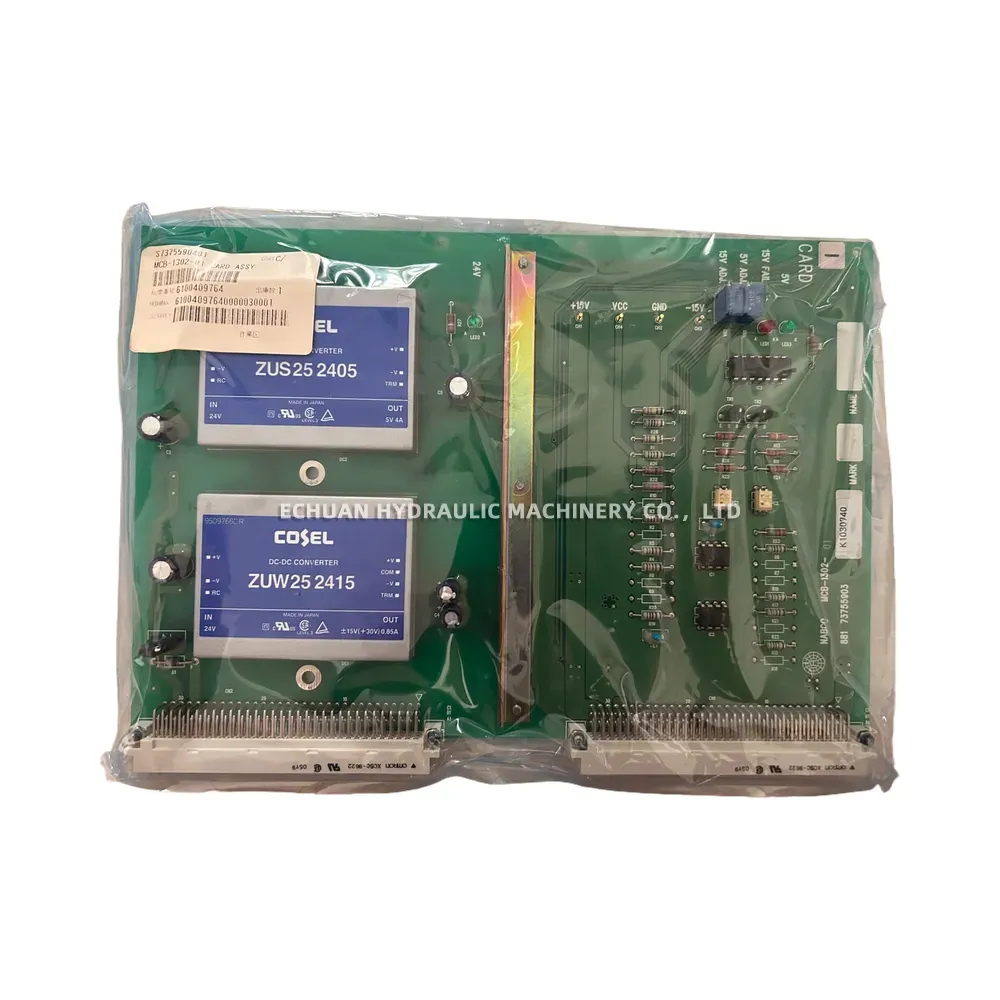

Cosel S1375590-01 / MCB-1202 PCB Assembly with DC-DC Converters

This is the Cosel S1375590-01 / MCB-1202, a specialized printed circuit board assembly designed for industrial power applications. The board is expertly engineered to provide multiple, regulated DC outputs from a single input source. It prominently features two high-quality Cosel DC-DC converter modules: the ZUS25 2405, which converts a 24V input to a stable 5V output at 4A, and the ZUW25 2415, which provides a dual +/-15V output at 0.85A from the same 24V input. The board is equipped with dual edge connectors for robust system integration, a terminal block for power input, DIP switches for configuration, and status LEDs for diagnostics. On-board silk screen markings clearly indicate voltage test points and adjustment potentiometers for fine-tuning outputs, making it a versatile and user-friendly component for complex electronic systems.

Technical Specifications:

  • Board Model: S1375590-01 / MCB-1202

  • Brand: Cosel

  • Type: PCB Assembly / Power Supply Board

  • DC-DC Converter 1 (Model ZUS25 2405): Input: 24V DC / Output: 5V DC, 4A

  • DC-DC Converter 2 (Model ZUW25 2415): Input: 24V DC / Output: +/-15V DC, 0.85A

  • Connectors: Dual Edge Connectors (DIN 41612 Style), Blue Terminal Block

  • PCB Identifier: 2025-PCB, REV B01
