Product Description

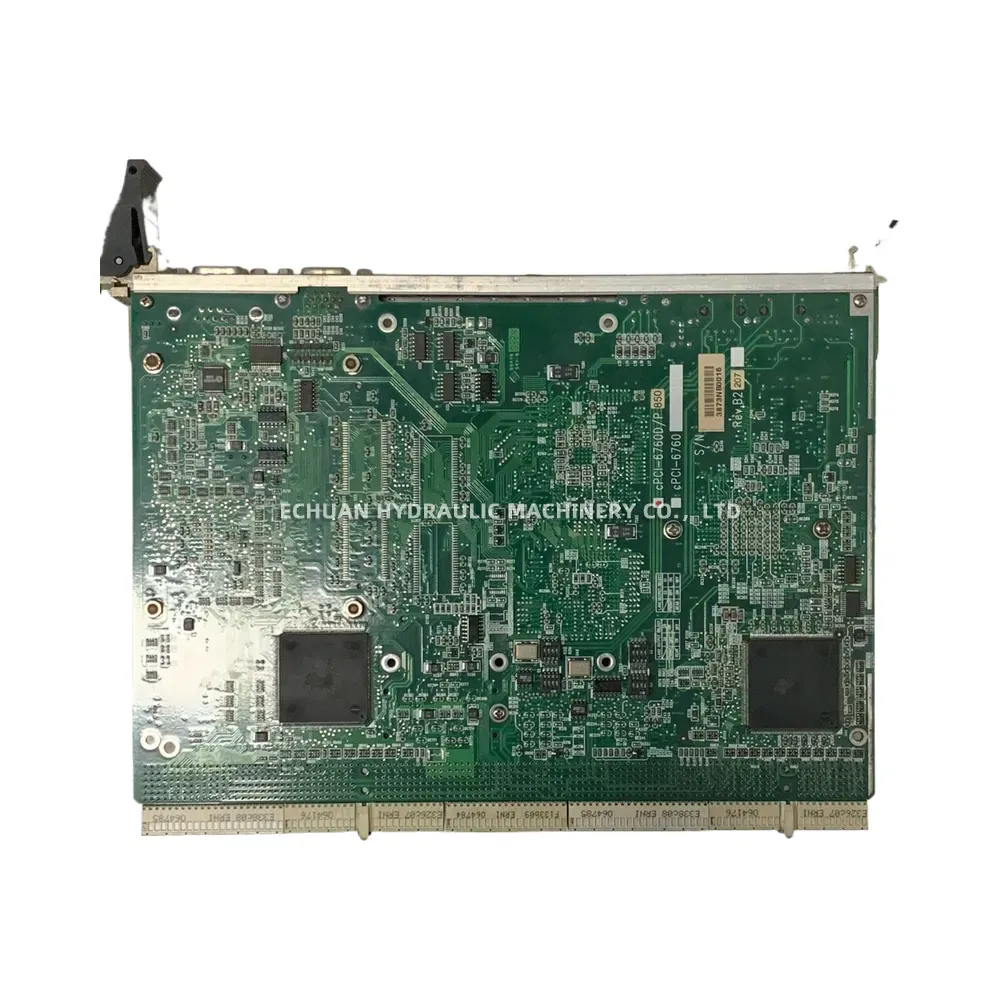

cPCI-6760D/P8-206 CompactPCI Single Board Computer

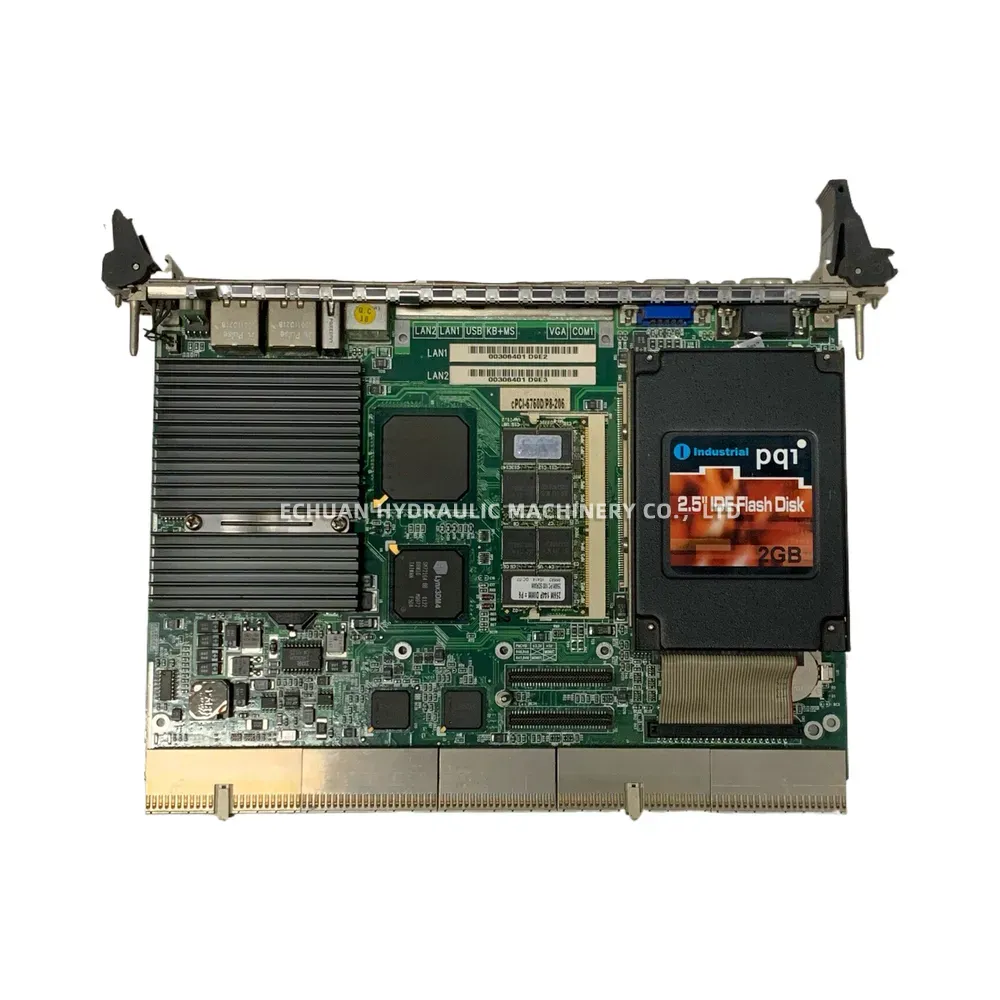

The cPCI-6760D/P8-206 is a robust and high-performance Industrial CompactPCI (cPCI) Single Board Computer designed for mission-critical and demanding industrial applications. Engineered for maximum reliability, this SBC features a comprehensive front panel interface that includes dual RJ45 Gigabit LAN ports, USB connectivity, a PS/2 keyboard/mouse port, VGA video output, and a COM1 serial port. It comes pre-equipped with a highly durable 2GB PQI Industrial 2.5-inch IDE Flash Disk, ensuring stable and secure embedded storage. System expandability and high-speed data transfer are guaranteed by its onboard PMC expansion slot and a 64-bit/66MHz PCI interface connector. Additionally, the board is fitted with a large processor heatsink to maintain optimal thermal performance in harsh operating environments.
Technical Specifications:
- Form Factor: Industrial CompactPCI (cPCI) Single Board Computer
- Front Panel I/O: Dual LAN (RJ45), 1x USB, 1x PS/2 (KB/MS), 1x VGA, 1x COM1 Serial Port
- Storage: Onboard 2.5-inch IDE Flash Disk (Includes 2GB PQI Industrial drive)
- Expansion & Interface: Onboard PMC expansion slot; 64-bit/66MHz PCI interface connector
- Cooling System: Large onboard heatsink for efficient processor thermal management
cPCI-6760D/P8-206 CompactPCI Single Board Computer
Enhance your industrial automation systems with the cPCI-6760D/P8-206 CompactPCI Single Board Computer. Featuring dual LAN ports, PMC expansion, a 64-bit/66MHz PCI interface, and a rugged 2GB industrial IDE flash disk, this SBC delivers unparalleled reliability and performance for mission-critical embedded computing applications.
