Product Description

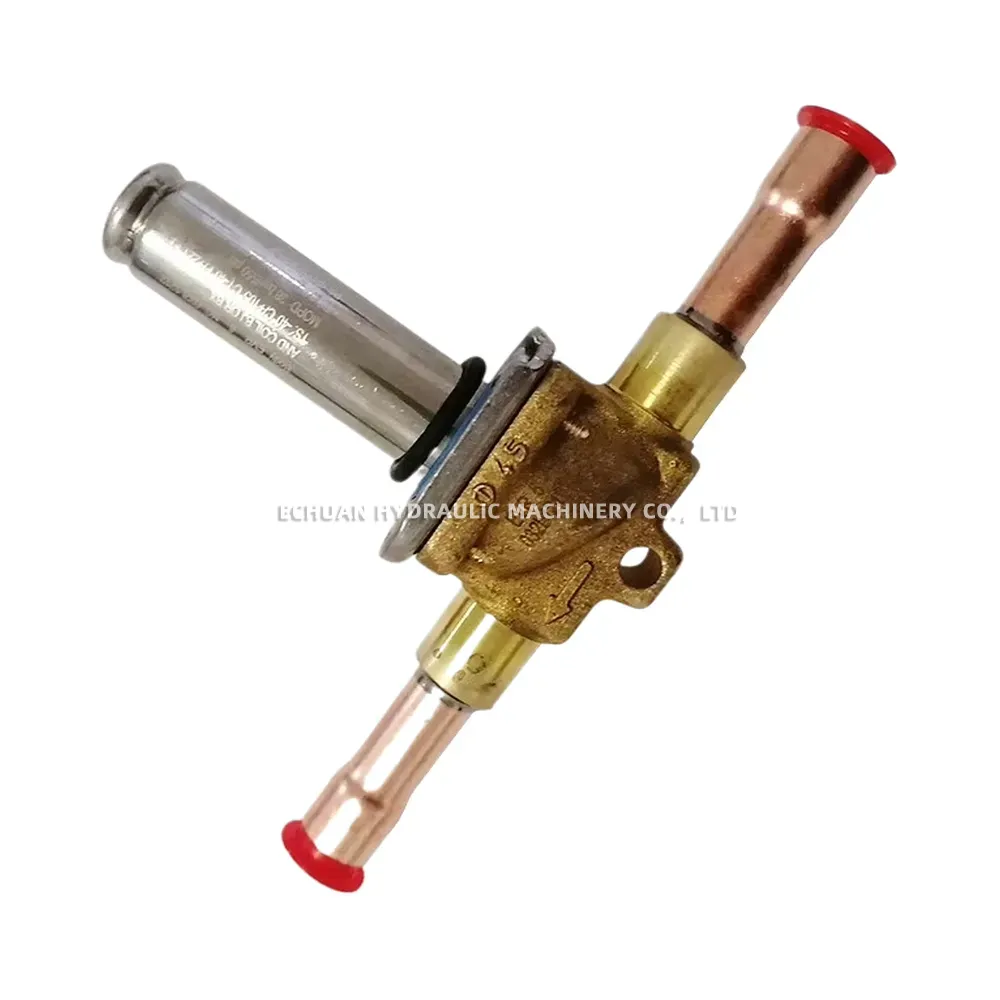

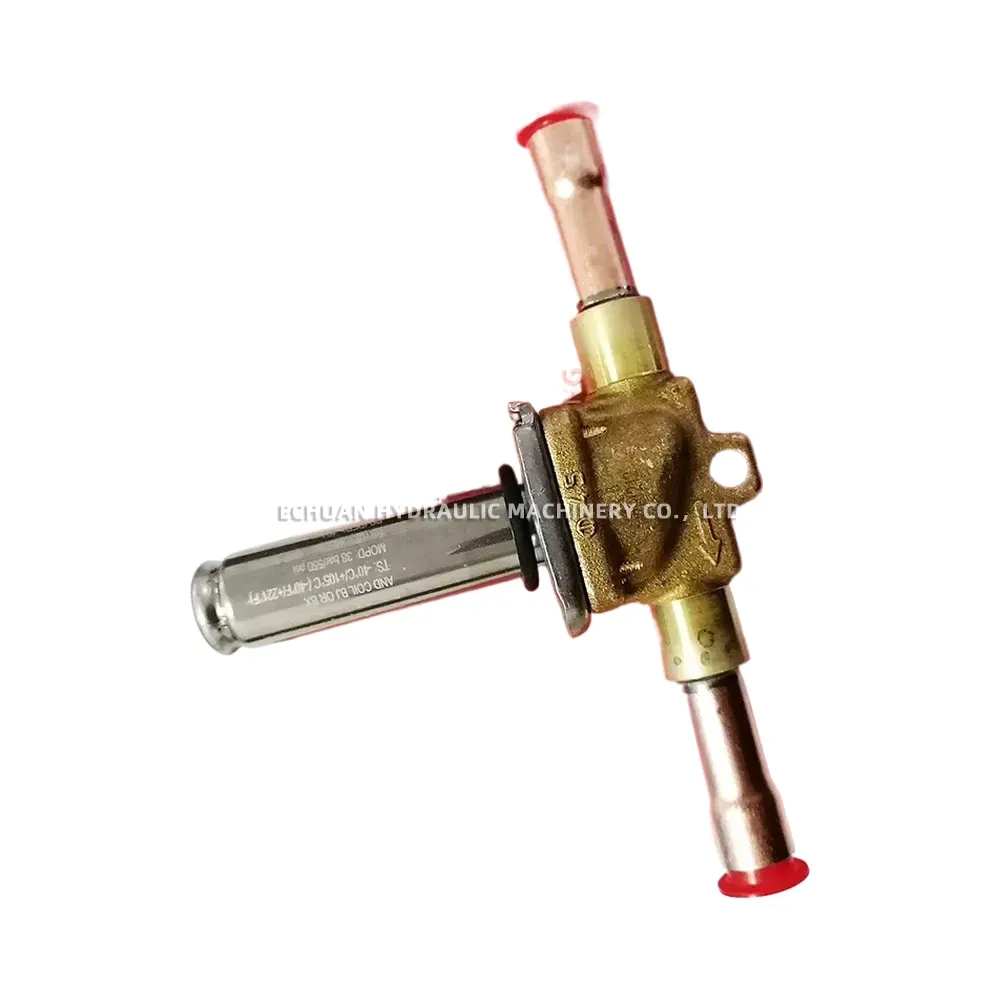

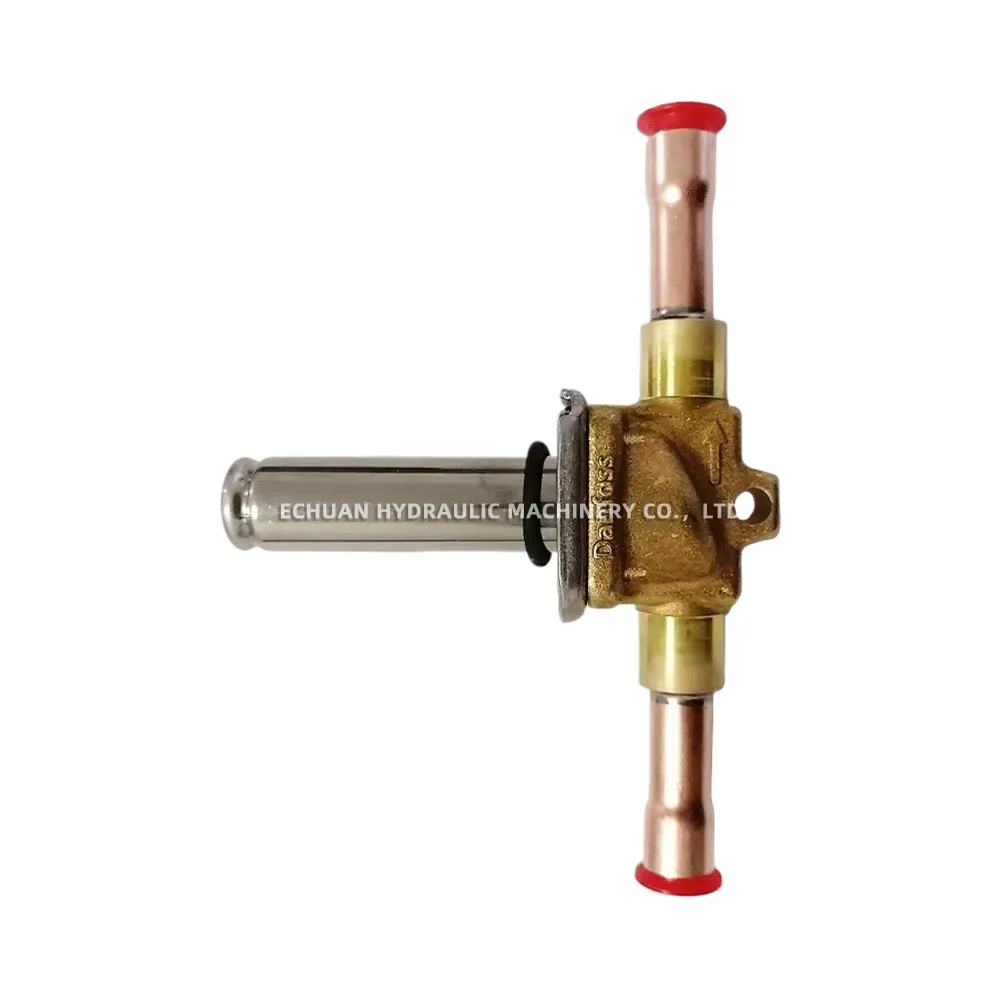

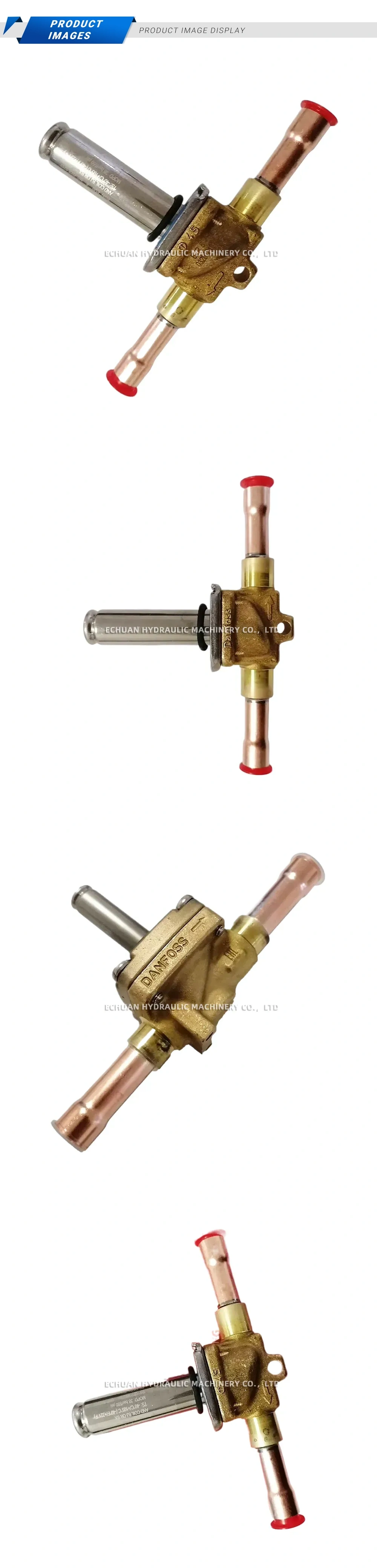

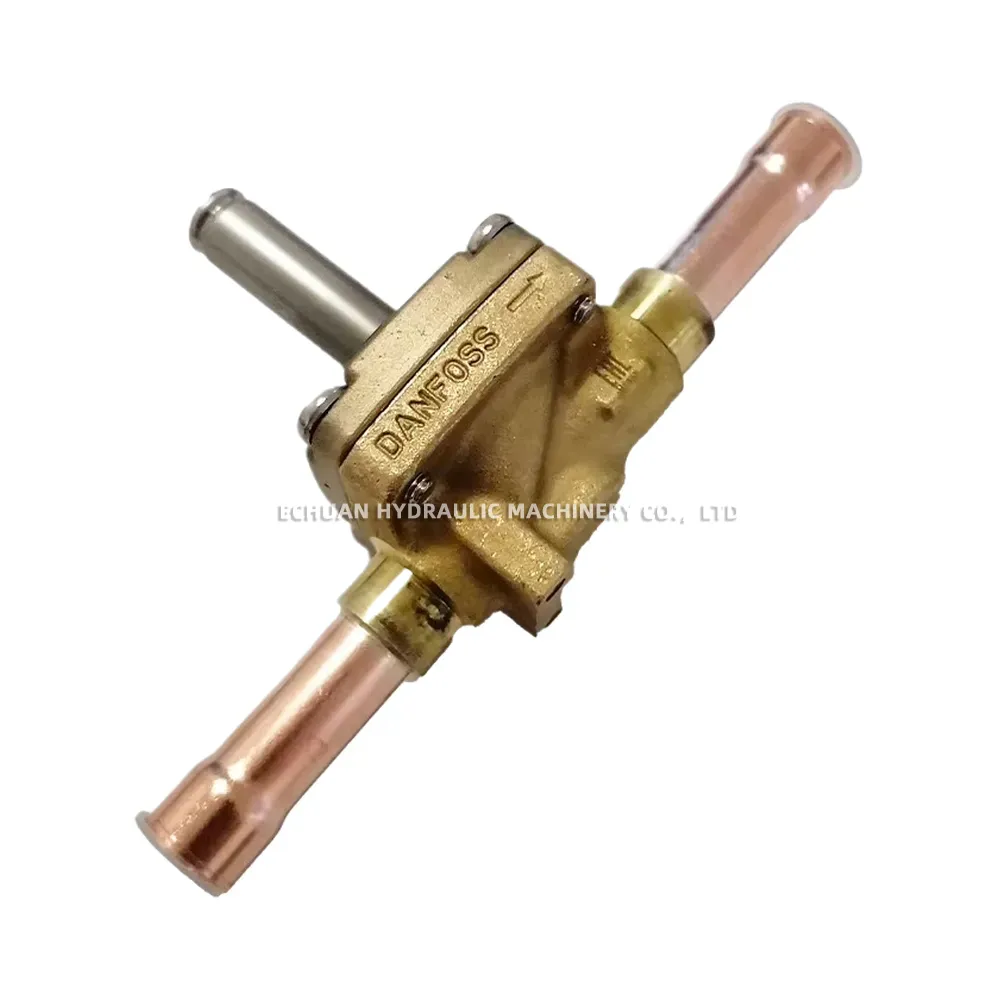

Danfoss 032L1212 Solenoid Valve
The Danfoss 032L1212 is a high-performance EVR 6 normally closed (NC) solenoid valve designed for demanding refrigeration, freezing, and air conditioning applications. Engineered for durability and reliable flow control, this general-purpose valve features industry-standard 3/8-inch ODF solder connections for secure, leak-free installation in your liquid, suction, or hot gas lines. It is designed to be paired with BJ or BX type coils (TS-40) and operates efficiently within an extreme temperature range of -40°C to +105°C (-40°F to +221°F). With a Maximum Operating Pressure Differential (MOPD) of 38 bar (550 psi) and rigorous cULus certification, the Danfoss 032L1212 ensures optimal safety, compliance, and longevity in commercial and industrial HVAC/R environments.
Technical Specifications:
- Brand: Danfoss
- Model Number: 032L1212
- Valve Series: EVR 6
- Valve Position: Normally Closed (NC)
- Connection Size & Type: 3/8 in. ODF x 3/8 in. ODF Solder (Inlet x Outlet)
- Operating Temperature Range: -40°C to +105°C (-40°F to +221°F)
- Maximum Operating Pressure Differential (MOPD): 38 bar (550 psi)
- Coil Compatibility: BJ or BX (TS-40)
- Approvals: cULus Listed (EHL)
Danfoss 032L1212 Solenoid Valve
Optimize your HVAC/R system with the Danfoss 032L1212 EVR 6 NC Solenoid Valve. Featuring secure 3/8″ ODF solder connections, a high 38 bar (550 psi) MOPD, and cULus certification, this normally closed valve delivers safe and reliable refrigerant flow control for commercial applications.
| Brand | DANFOSS |
|---|---|
| Model | 032L1212 |
| Part No. | 774152595714 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/danfoss-032l1212-solenoid-valve |
