Product Description

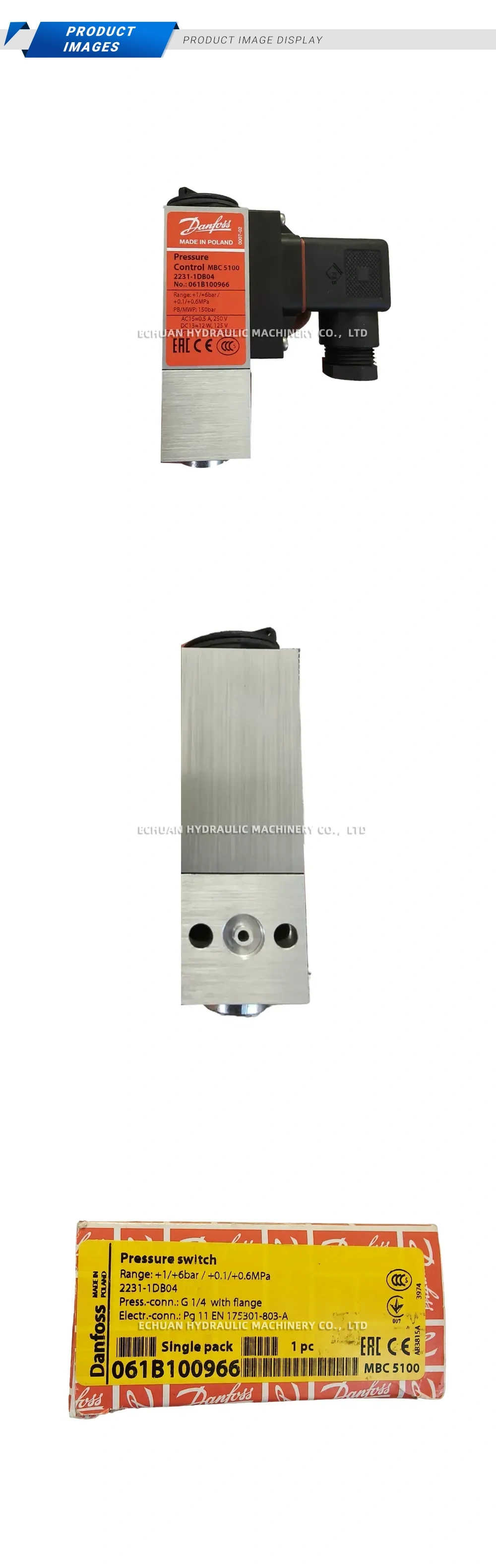

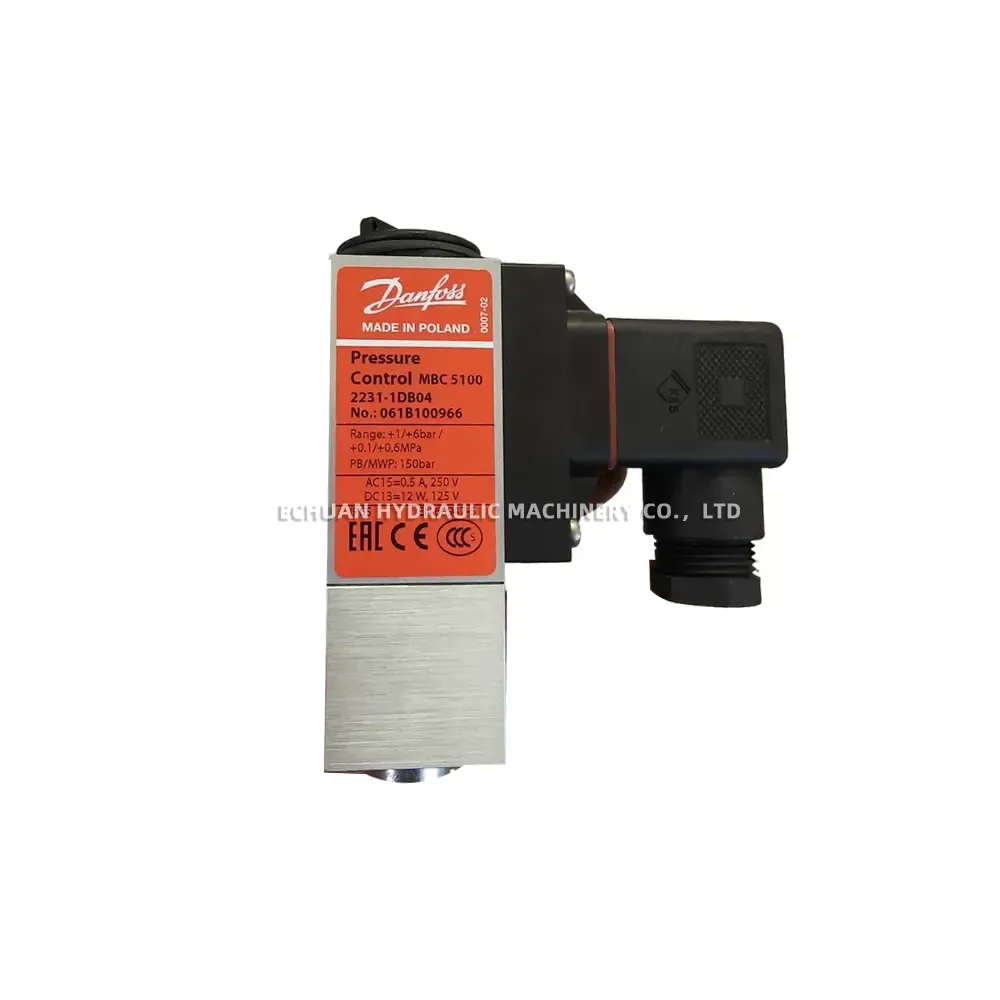

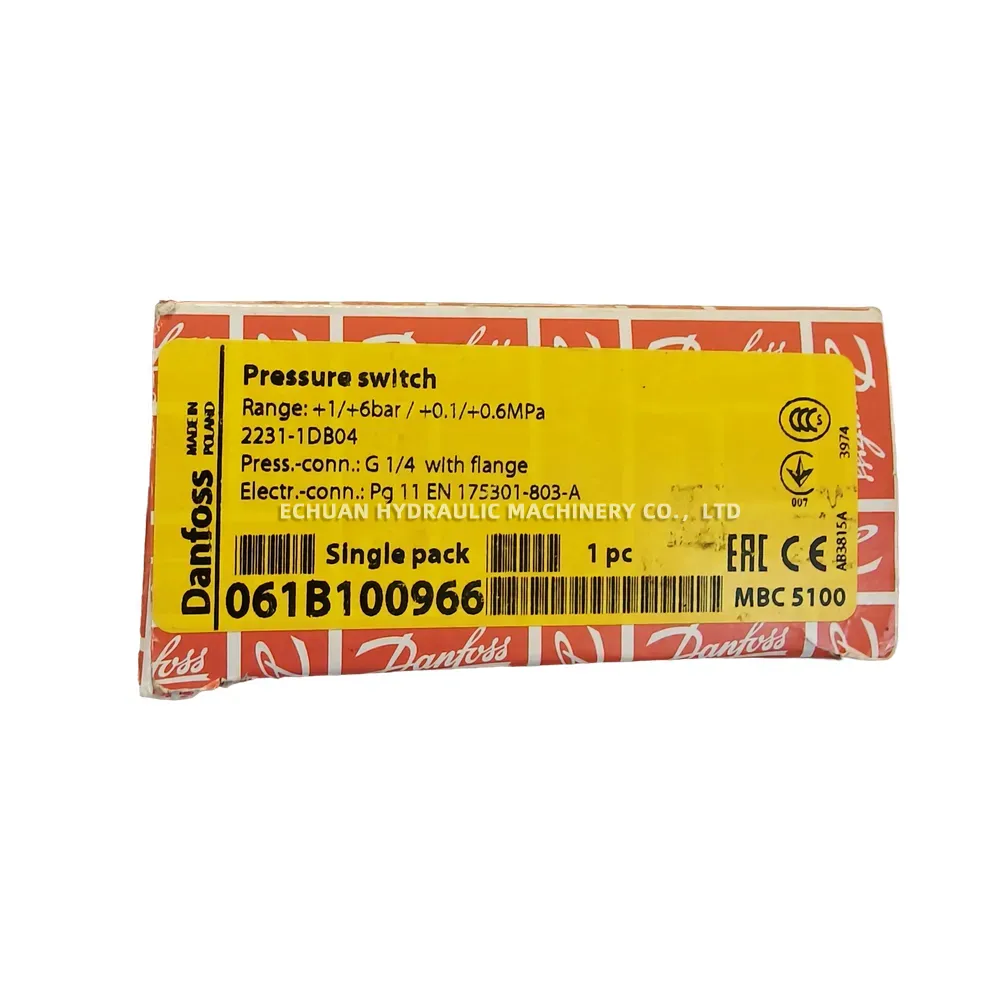

Danfoss 2231-1DB04 (MBC 5100, P/N: 061B100966) Pressure Switch

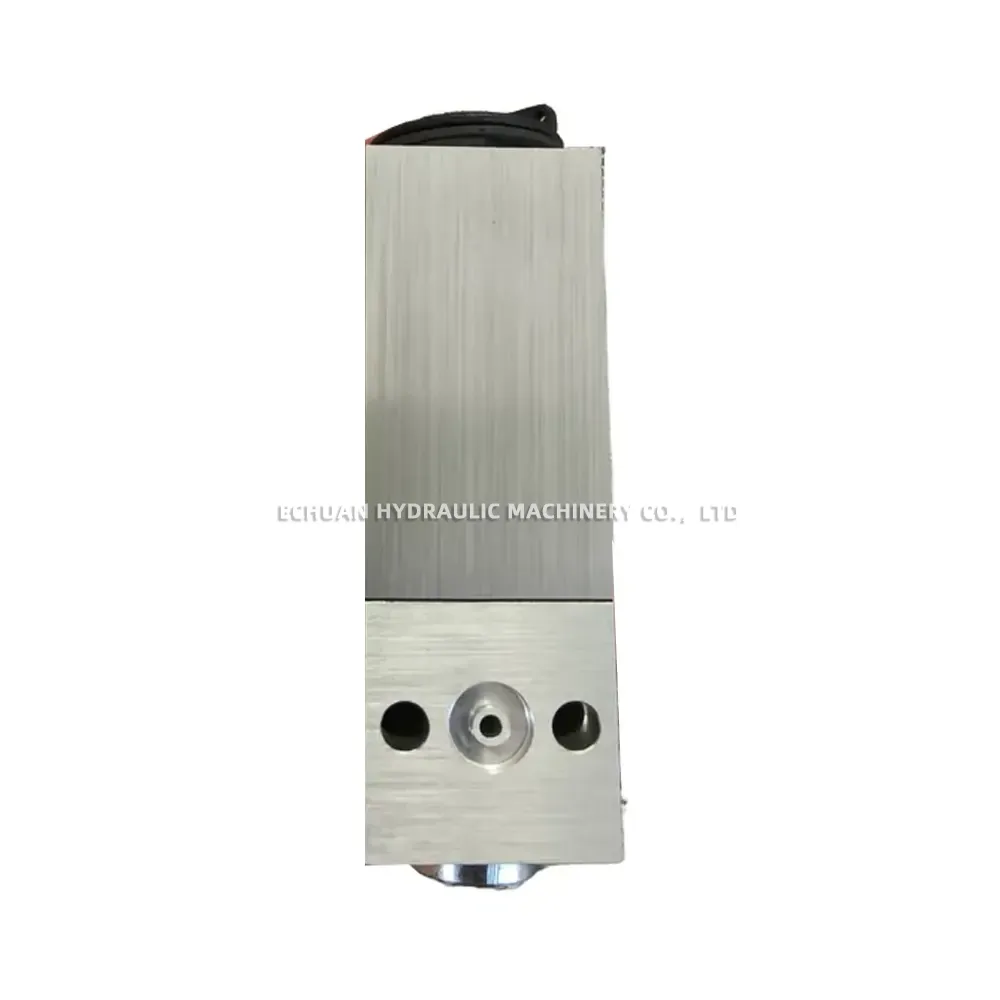

The Danfoss MBC 5100 (Model 2231-1DB04, Part Number 061B100966) is a robust block-type pressure switch designed for reliable pressure control in demanding industrial and marine applications. Featuring a precise switching range of +1 to +6 bar (+0.1 to +0.6 MPa) and a maximum working pressure of 150 bar, this pressure switch ensures optimal performance and safety. It boasts an IP65 protection rating and is built to EN 60947-5 standards, making it highly resistant to harsh environments. With its compact block design, G 1/4 flange pressure connection, and Pg 11 electrical connection (EN 175301-803-A), it offers easy installation, high vibration resistance, and dependable operation.
Technical Specifications:
- Brand: Danfoss
- Model: 2231-1DB04 (MBC 5100)
- Part Number: 061B100966
- Switching Range: +1 to +6 bar (+0.1 to +0.6 MPa)
- Maximum Working Pressure (PB/MWP): 150 bar
- Contact Ratings: AC15 = 0.5 A, 250 V / DC13 = 12 W, 125 V
- Pressure Connection: G 1/4 with flange
- Electrical Connection: Pg 11 (per EN 175301-803-A)
- Enclosure Protection Rating: IP65
- Standards & Compliance: EN 60947-5
- Certifications: EAC, CE, CCC
- Country of Origin: Poland
Danfoss 2231-1DB04 (MBC 5100, P/N: 061B100966) Pressure Switch
Shop the Danfoss 2231-1DB04 (P/N: 061B100966) MBC 5100 block-type pressure switch. Engineered for heavy-duty industrial use, it features a +1 to +6 bar switching range, 150 bar max working pressure, G 1/4 flange connection, and IP65 protection. Reliable pressure control for marine and industrial applications.
| Brand | DANFOSS |
|---|---|
| Model | 2231-1DB04 (MBC 5100, P/N: 061B100966) |
| Part No. | 995351048709 |
| Category | Hydraulic parts |
