Product Description

Danfoss CV2-20-P-0-5 565844

The Danfoss CV2-20-P-0-5, part number 565844, is a high-performance, pilot-operated check valve designed for reliable operation in demanding hydraulic systems. This poppet-type cartridge valve allows free flow from the valve port to the cylinder port while preventing reverse flow. Flow is enabled in the reverse direction only when sufficient pilot pressure is applied. Engineered for durability and precision, it fits a standard size 20 (C-20-2) cavity, making it a versatile solution for load-holding applications, preventing cylinder creep, and isolating hydraulic circuits.

Technical Specifications:

  • Model: CV2-20-P-0-5

  • Part Number: 565844

  • Type: Pilot-Operated Check Valve, Poppet Type

  • Cavity: C-20-2 (Size 20)

  • Maximum Operating Pressure: 350 bar (5075 psi)

  • Rated Flow: 380 L/min (100 US gpm)

  • Pilot Ratio: 3:1

  • Cracking Pressure: 0.3 bar (5 psi)

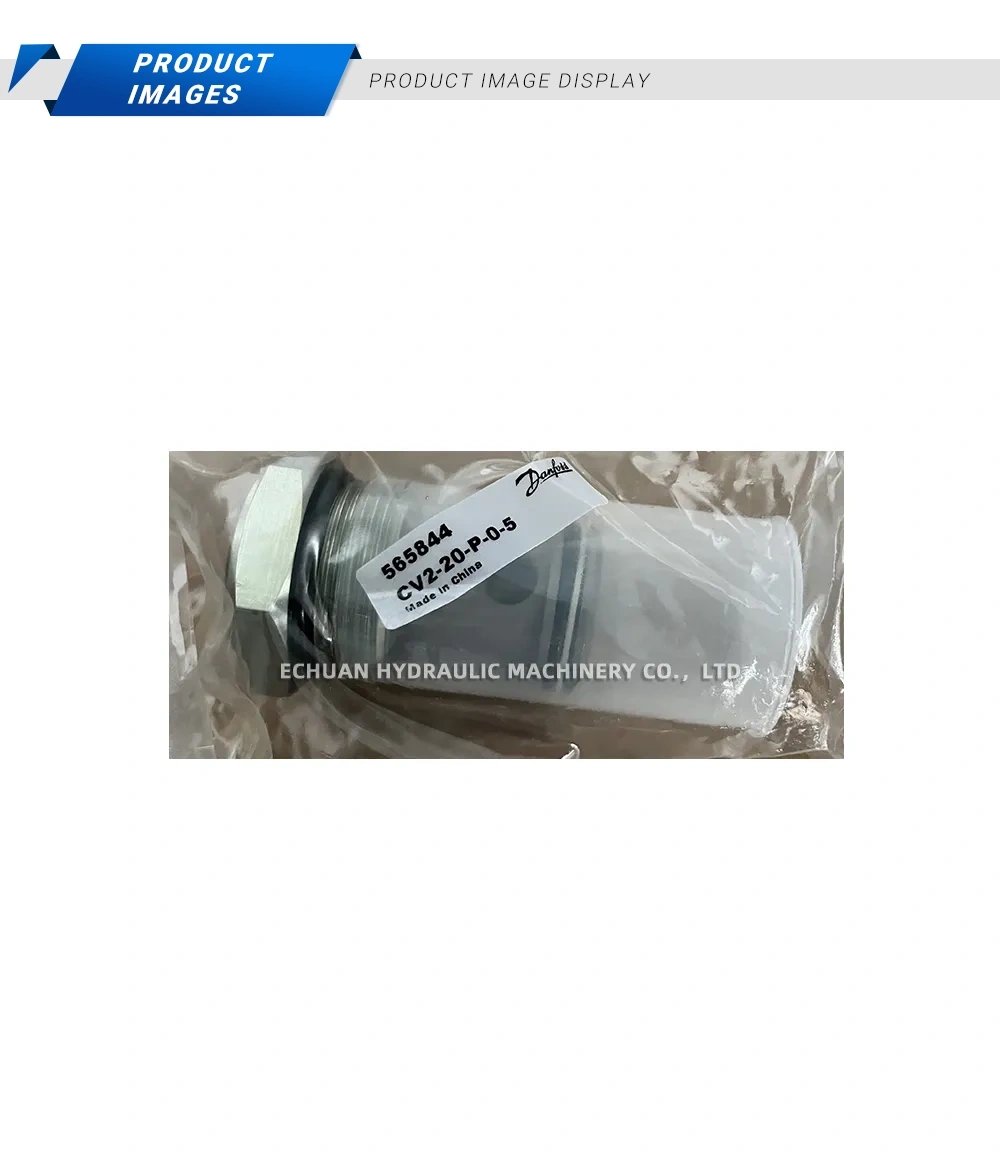

Danfoss CV2-20-P-0-5 565844 Description

Danfoss CV2-20-P-0-5 565844

Order the Danfoss CV2-20-P-0-5 pilot-operated check valve, part number 565844. A reliable size 20 poppet-type cartridge valve for hydraulic load-holding applications with a 5 psi cracking pressure.
