Product Description
Danfoss EV220B 032U7117
The Danfoss EV220B 032U7117 is a high-performance, servo-operated 2/2-way solenoid valve body designed for use in a wide range of industrial applications. Part of the versatile EV220B series, this valve is known for its reliability and robustness, even in demanding conditions. It features a durable brass body and EPDM sealing, making it suitable for neutral media like water and oil. The servo-operated mechanism, combined with a built-in filter for pilot system protection, ensures consistent and reliable operation. Please note that this product code refers to the valve body only; the corresponding coil must be ordered separately to complete the assembly.

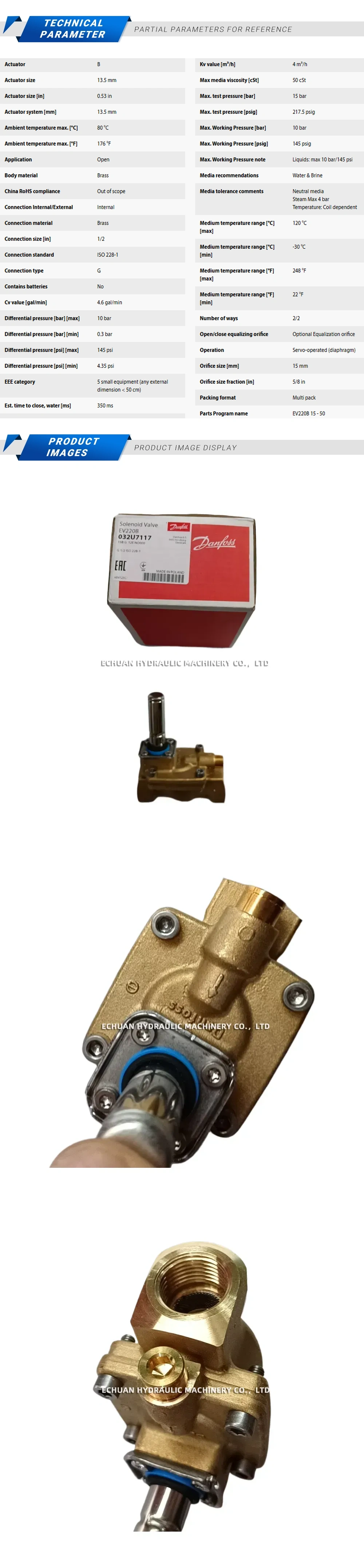

Technical Specifications:
- Part Number: 032U7117
- Valve Function: Normally Closed (NC)
- Connection Size: G 1/2 Inch
- Orifice Size: 15.0 mm
- Pressure Range: 0.3 – 16 bar (4.4 – 232 psi)
- Seal Material: EPDM
- Body Material: Brass
- Media Temperature Range: -30 to 120 °C
Danfoss EV220B 032U7117
Order the Danfoss EV220B 032U7117, a robust G 1/2 Normally Closed solenoid valve body with EPDM seals. Designed for industrial fluid control applications. Coil is sold separately.
