Product Description
Danfoss K2L030CPC16NN Axial Piston Variable Pump
The Danfoss K2L030CPC16NN is a high-performance axial piston variable displacement pump from the reliable K2 series, engineered for open-circuit hydraulic systems. This compact and robust pump delivers exceptional power density and efficiency, making it an ideal choice for a wide range of mobile and industrial applications. It features a 30 cm³/rev displacement, left-hand (counter-clockwise) rotation, and an integrated pressure compensator control that automatically adjusts flow to maintain a set pressure, optimizing system performance and energy consumption. With a durable SAE A 2-bolt mounting flange and a splined shaft, the K2L030CPC16NN ensures secure and easy integration into your hydraulic setup.
Technical Specifications:
- Model Number: K2L030CPC16NN

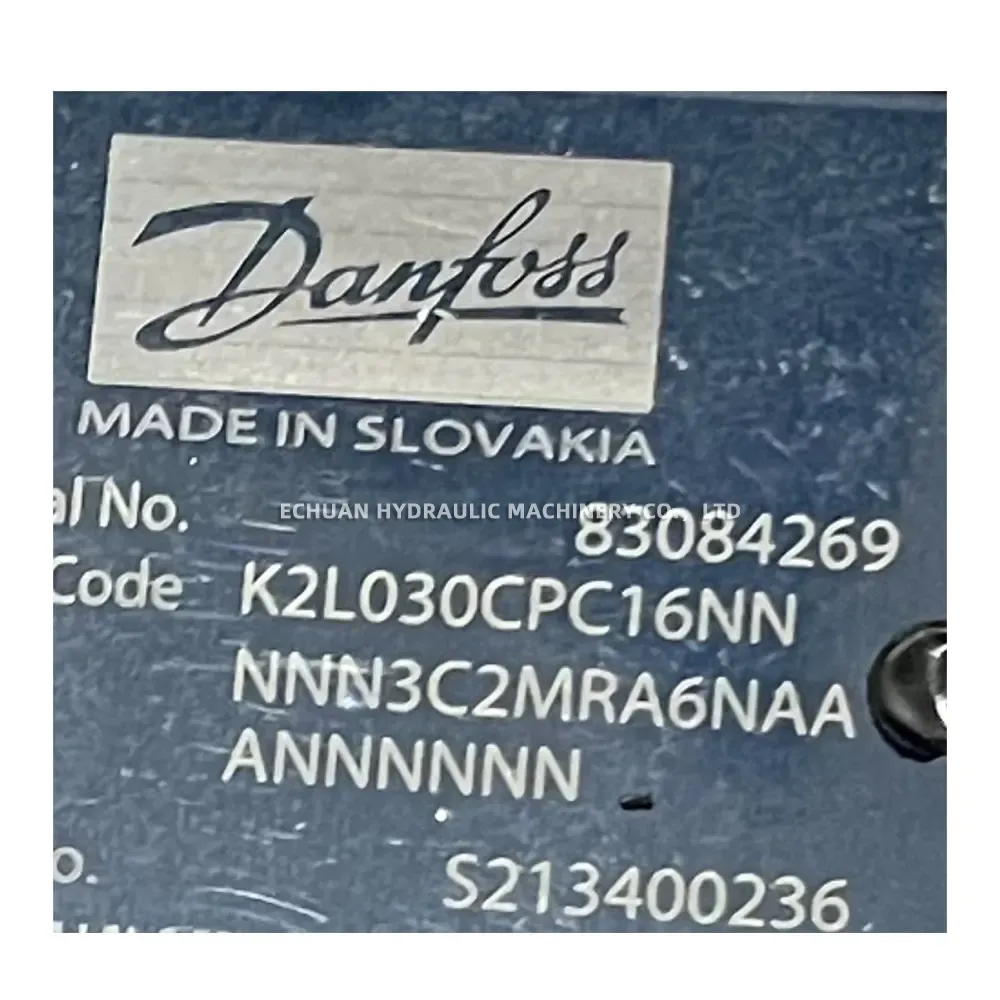

- Material Number: 83084269
- Pump Type: Axial Piston Variable Displacement
- Displacement: 30 cm³/rev (1.83 in³/rev)
- Rotation: Left Hand (Counter-Clockwise)
- Control Type: Pressure Compensator (PC)
- Pressure Compensator Setting: 160 bar (2320 psi)

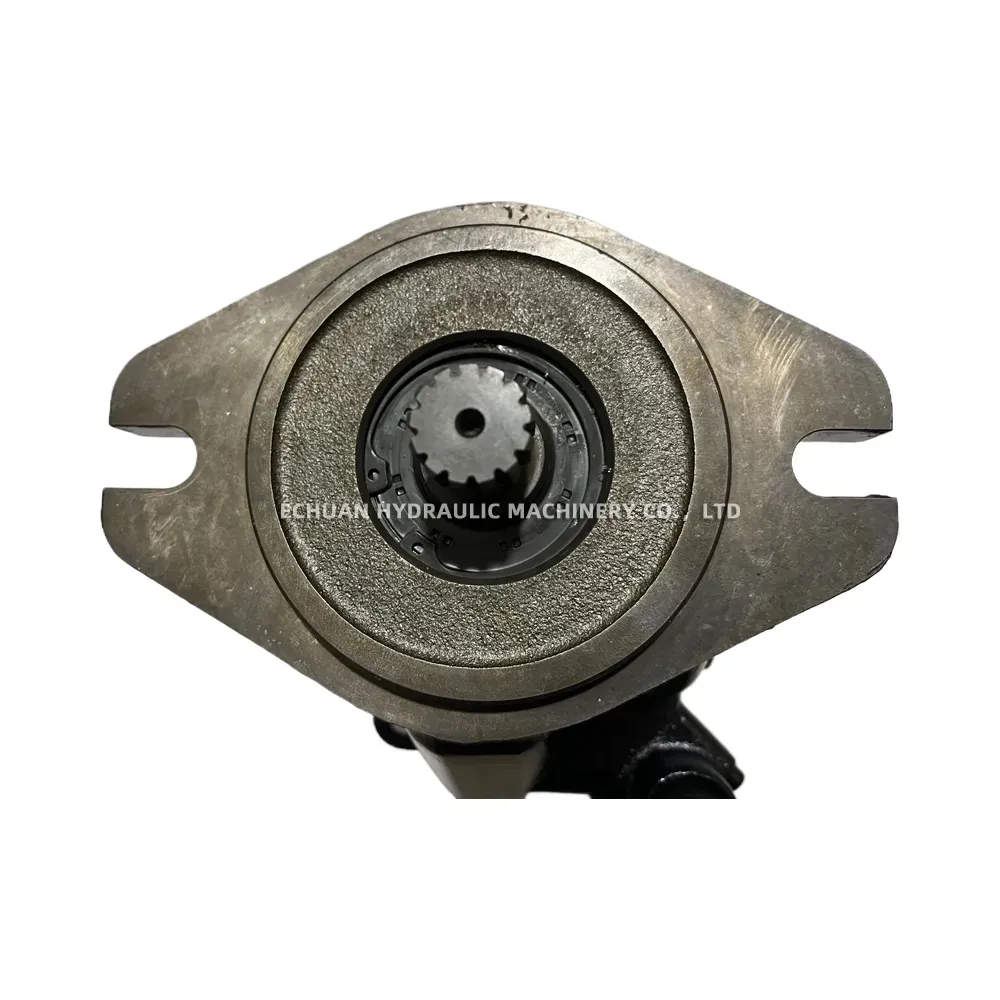

- Input Shaft: SAE A Spline, 9 Tooth 16/32 DP
- Mounting Flange: SAE A 2-Bolt
- Port Configuration: Side Ports
Danfoss K2L030CPC16NN Axial Piston Variable Pump
Order the genuine Danfoss K2L030CPC16NN axial piston pump. This 30cc variable displacement pump features a pressure compensator, left-hand rotation, and an SAE A splined shaft. Material number: 83084269.
| Brand | DANFOSS |
|---|---|
| Model | K2L030CPC16NN |
| Part No. | 1006284816348 |
| Category | Hydraulic pumps |
