Product Description

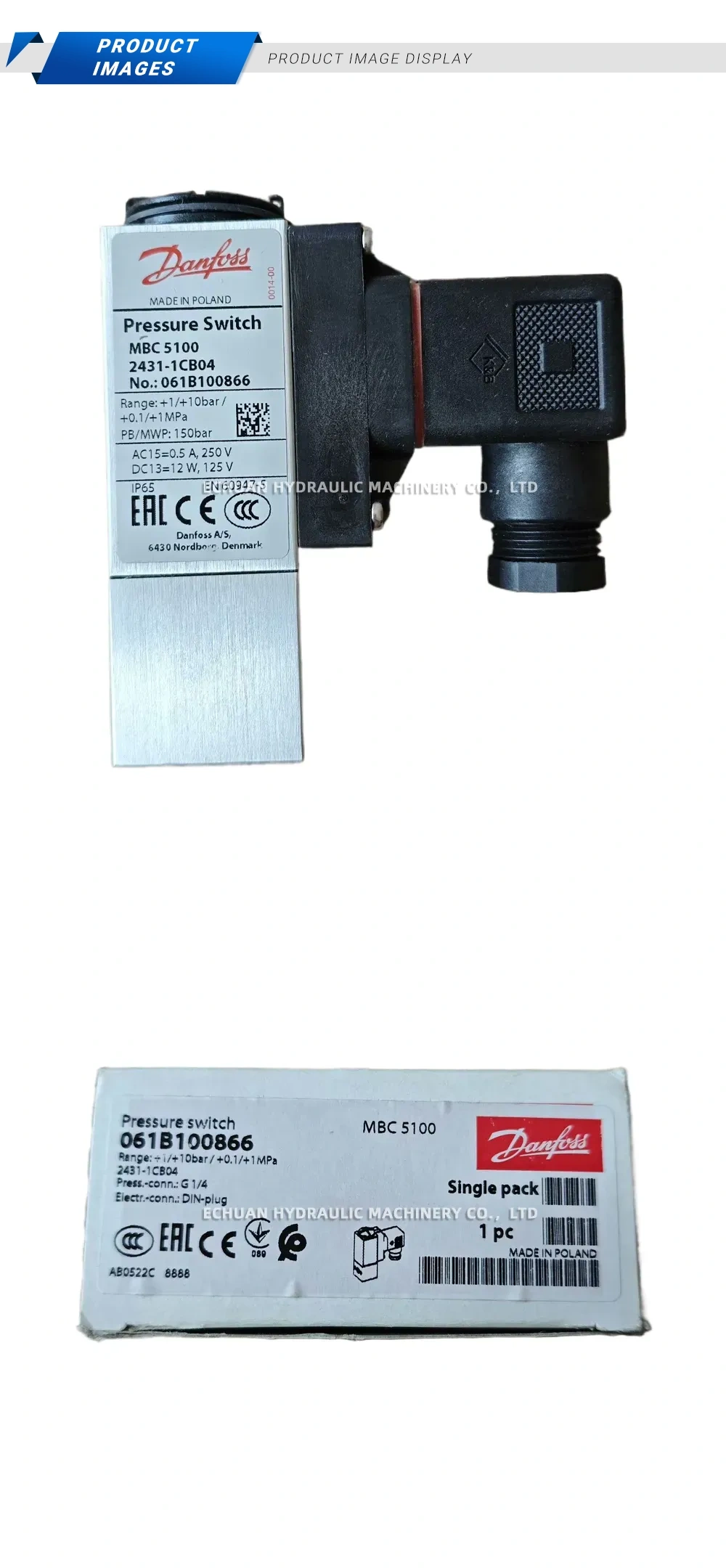

Danfoss MBC 5100 061B10086 Pressure switch
The Danfoss MBC 5100 is a compact, block-type pressure switch designed for robust performance in harsh industrial and marine environments. Engineered to withstand severe conditions, it features exceptional vibration resistance and holds all major marine approvals. The MBC 5100 utilizes a high-quality microswitch to ensure reliable and precise operation. Its fixed differential and wide regulating range make it suitable for a variety of control, monitoring, and alarm system applications where space and reliability are critical factors.
Technical Specifications:
- Pressure Range: 10 – 100 bar
- Differential: 6.0 bar (Fixed)
- Max. Working Pressure: 300 bar
- Pressure Connection Type: G 1/4 Female
- Contact Function: SPDT (Single Pole Double Throw)
- Electrical Connection: DIN 43650-A Plug
- IP Rating: IP65
Danfoss MBC 5100 061B10086 Pressure switch
The Danfoss MBC 5100 061B10086 is a robust, marine-approved block-type pressure switch for a 10-100 bar range. Ideal for demanding industrial applications requiring high reliability and vibration resistance.
