Product Description

Danfoss MBC 5100 061B112566 2431-2CB04

The Danfoss MBC 5100 is a compact, block-type pressure switch designed for use in demanding industrial and marine applications where space and reliability are critical. Engineered to withstand severe conditions, it features high vibration resistance and a robust construction. The MBC 5100 series is known for its exceptional operational accuracy and long-term stability, making it ideal for monitoring, alarm, and regulation systems in various machinery, including engines, pumps, compressors, and hydraulic power packs. This model comes with all major marine approvals, ensuring performance in harsh and corrosive environments.

Technical Specifications:

  • Part Number: 061B112566

  • Pressure Setting Range: 10 to 100 bar (145 to 1450 psi)

  • Contact Function: SPDT (Single Pole Double Throw)

  • Pressure Connection: G 1/4 Female

  • Electrical Connection: DIN 43650-A Plug, Pg 11

  • IP Rating: IP65

  • Max. Working Pressure: 300 bar

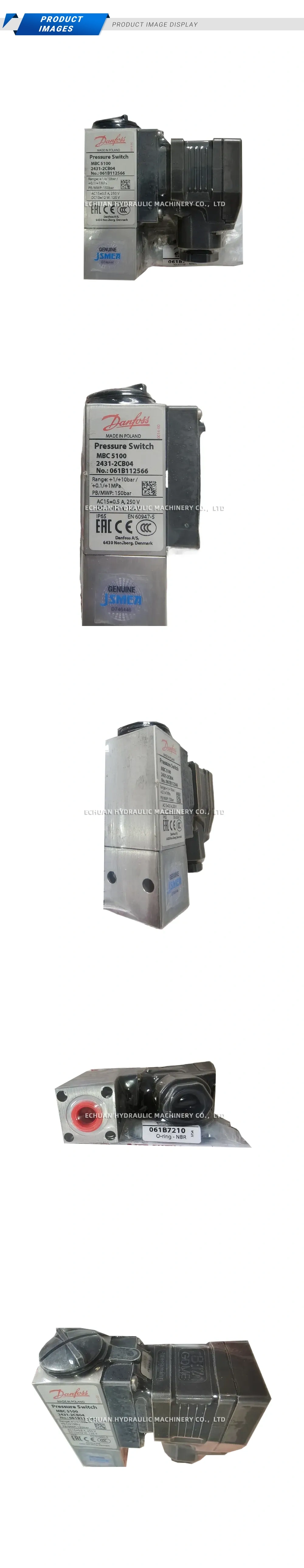

Danfoss MBC 5100 061B112566 2431-2CB04 Description

Danfoss MBC 5100 061B112566 2431-2CB04

Danfoss MBC 5100 (061B112566) block-type pressure switch with a 10-100 bar range, G 1/4 connection, and SPDT contact. Ideal for robust industrial and marine applications with high vibration resistance.
