Product Description

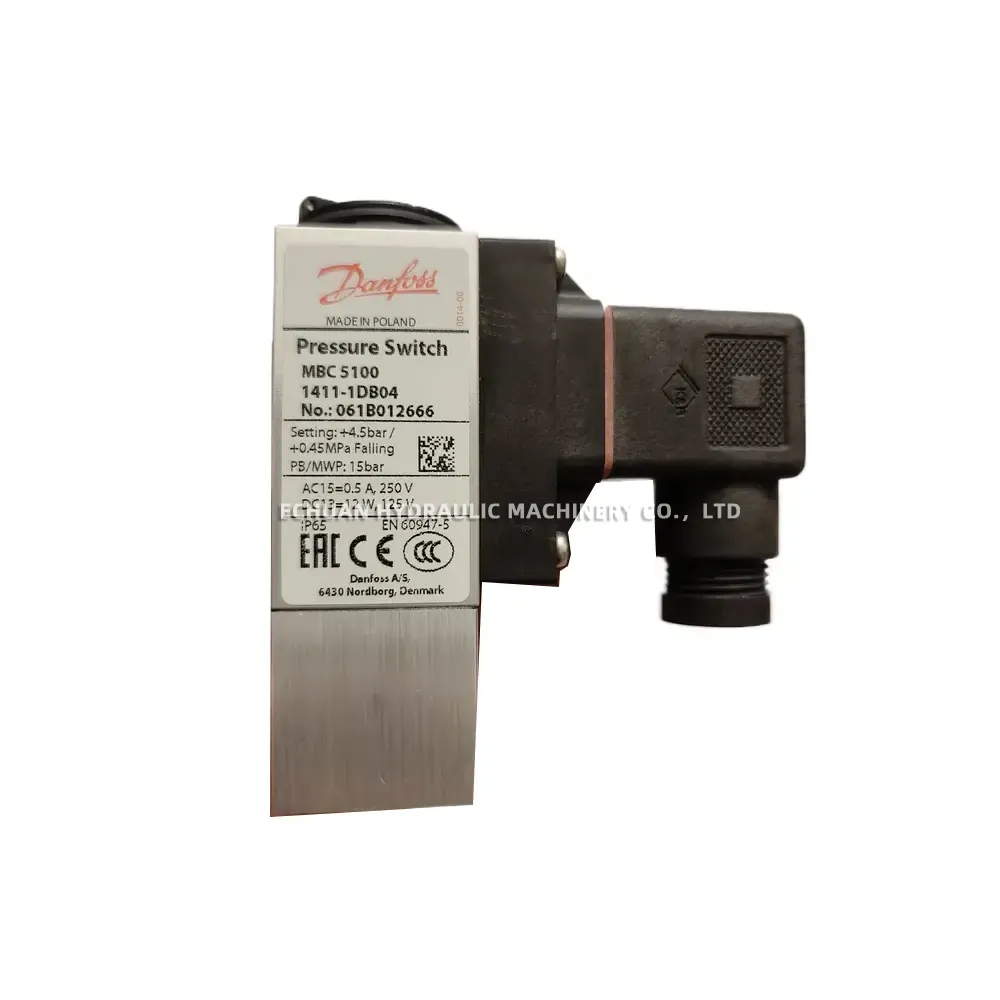

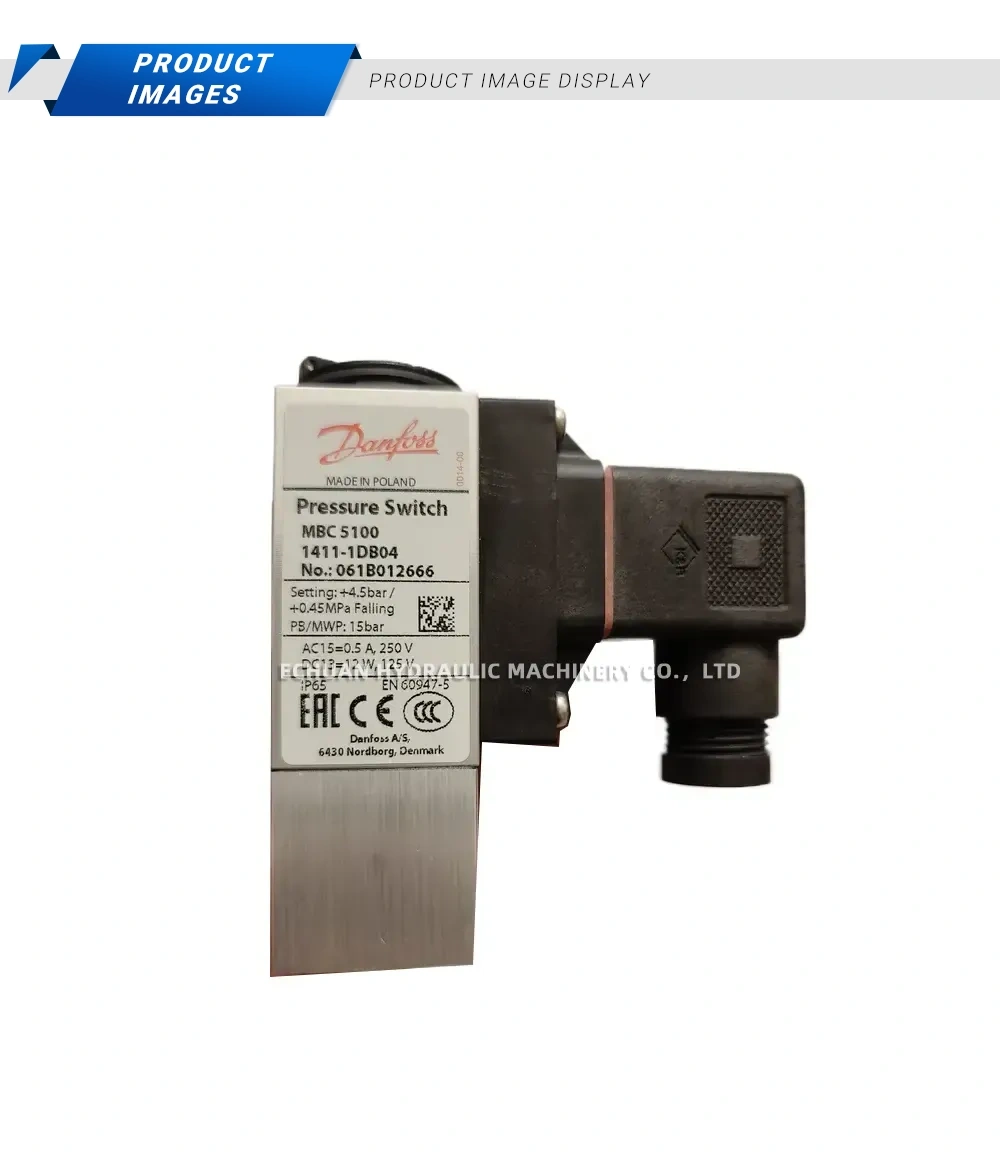

Danfoss MBC 5100 1411-1DB04 (061B012666) Pressure Switch
The Danfoss MBC 5100 1411-1DB04 (061B012666) is a robust, compact block-type pressure switch engineered for exceptional reliability in marine and demanding industrial applications. Manufactured by Danfoss, this switch features a precise falling set point of +4.5 bar (+0.45 MPa) and can handle a maximum working pressure (PB/MWP) of 15 bar. Designed to perform in harsh environments, it is equipped with an IP65-rated enclosure, ensuring superior protection against dust and moisture. Fully compliant with the EN 60947-5 standard and backed by CE, EAC, and CCC certifications, the MBC 5100 delivers safe, accurate, and durable performance for your critical monitoring and control systems.
Technical Specifications:
- Brand: Danfoss
- Model: MBC 5100 1411-1DB04
- Part Number: 061B012666
- Set Point: +4.5 bar (+0.45 MPa) Falling
- Max Working Pressure (PB/MWP): 15 bar
- Contact Ratings: AC15 = 0.5 A, 250 V / DC13 = 12 W, 125 V
- Enclosure Rating (IP): IP65
- Standard Compliance: EN 60947-5
- Certifications: EAC, CE, CCC
- Country of Origin: Poland
Danfoss MBC 5100 1411-1DB04 (061B012666) Pressure Switch
Buy the Danfoss MBC 5100 1411-1DB04 (061B012666) Pressure Switch for marine and industrial applications. Features a +4.5 bar falling set point, 15 bar max pressure, and IP65 rating. Reliable, compact, and fully certified.
| Brand | DANFOSS |
|---|---|
| Model | MBC 5100 1411-1DB04 (061B012666) |
| Part No. | 1092217326141 |
| Category | Hydraulic valves |
