Product Description

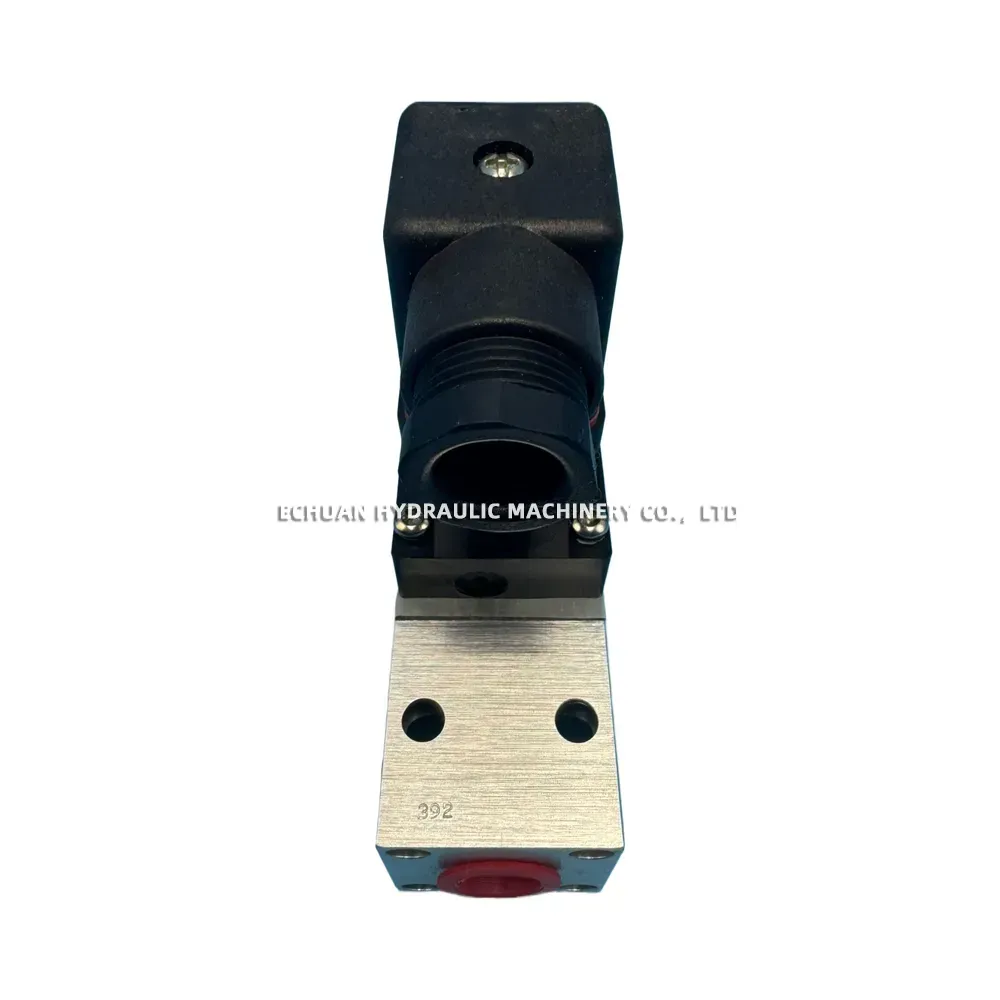

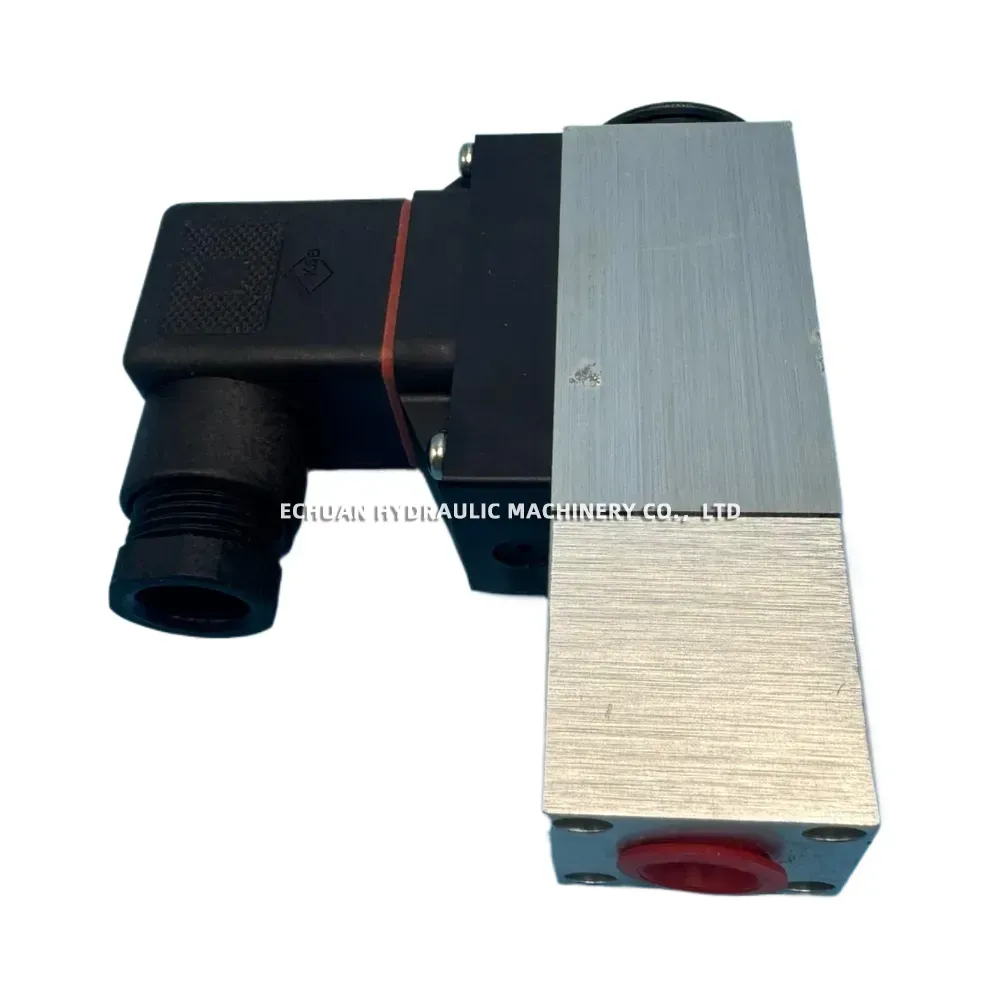

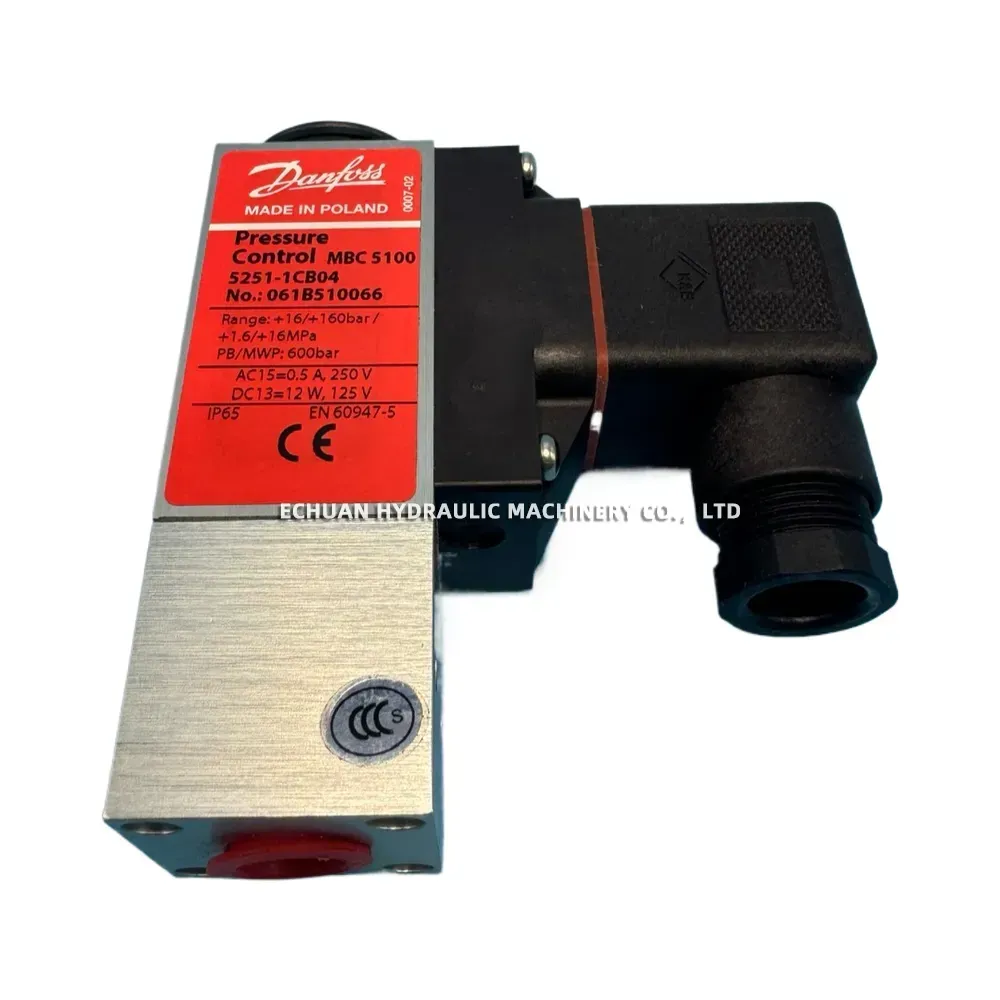

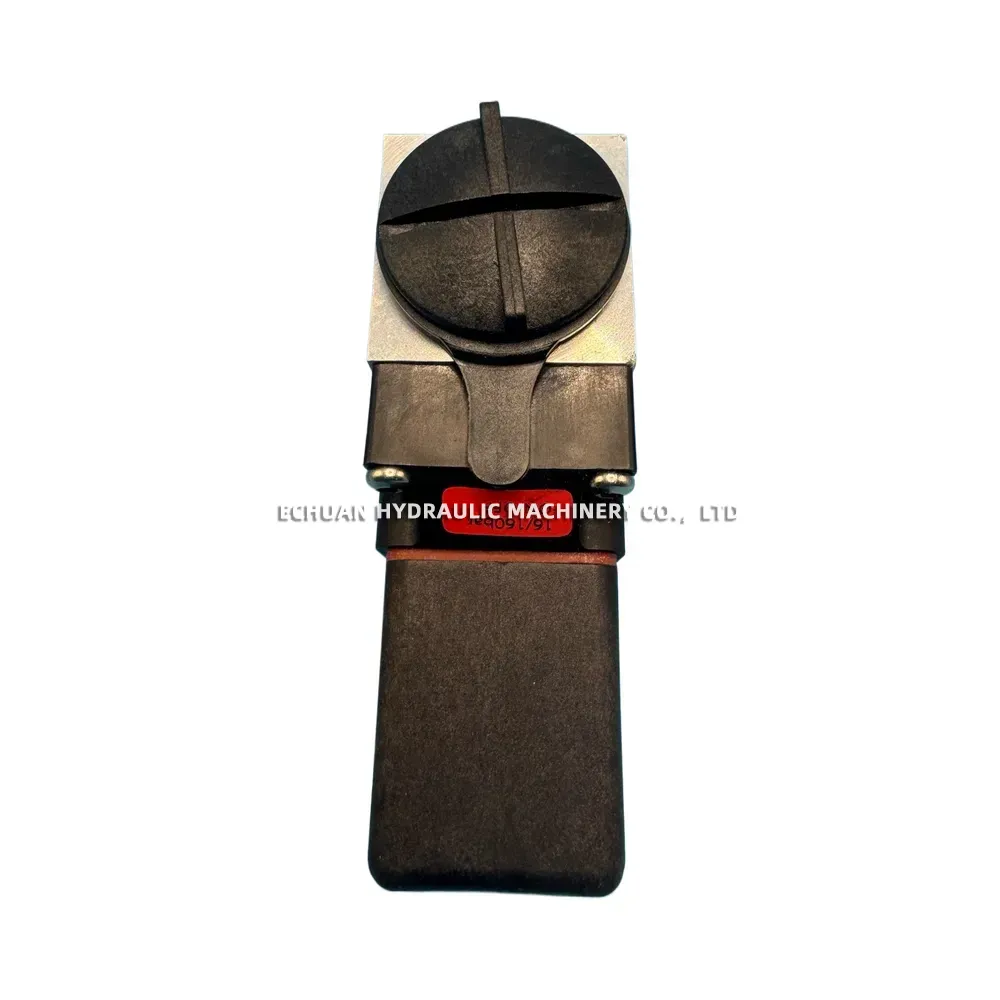

Danfoss MBC 5100 5251-1CB04
The Danfoss MBC 5100 is a compact, block-type pressure switch designed for use in demanding industrial and marine applications. Its robust construction ensures high vibration resistance and reliable operation in harsh environments where space and dependability are critical factors. This model features a fixed differential and is suitable for a wide range of control, monitoring, and alarm systems. The MBC 5100 holds major ship approvals, making it a trusted component for shipbuilding and offshore installations worldwide.
Technical Specifications:
- Part Number: 061B525191 (replaces 061B5251-1CB04)
- Pressure Range: 25 to 250 bar
- Differential: 14.00 bar (Fixed)
- Max. Working Pressure: 600 bar
- Contact Function: SPDT (Single Pole Double Throw)
- Pressure Connection: G 1/4
- Electrical Connection: Pg 13.5 Cable Gland
- Enclosure Rating: IP65
- Contact Rating: AC-15=10 A, 250 V / DC-13=12 W, 125 V
- Ambient Temperature Range: -40 to 85 °C
- Approvals: ABS, BV, CCS, DNV, GL, LR, NKK, RINA, RMRS
Danfoss MBC 5100 5251-1CB04
Model：Danfoss MBC 5100 5251-1CB04
