Product Description

Danfoss MBC 5100-1211-1DB04

The Danfoss MBC 5100 is a compact, block-type pressure switch designed for use in demanding marine and industrial applications. Its robust construction provides high resistance to vibration and shock, ensuring reliable operation even in harsh environments. The MBC 5100 features a fixed, low differential to guarantee accurate monitoring of critical pressures. This model is part of a series that holds all major marine approvals, making it a trusted choice for alarm and control systems on ships, offshore platforms, and in heavy industry where space and reliability are essential.

Technical Specifications:

  • Type: Pressure Switch
  • Series: MBC 5100
  • Pressure Range: -0.2 to 4 bar
  • Adjustable Differential: 0.2 to 0.7 bar
  • Max. Working Pressure: 30 bar
  • Contact Function: SPDT (Single Pole Double Throw)
  • Pressure Connection Type: G – ISO 228/1
  • Pressure Connection Size: 1/4″ Female
  • Electrical Connection: Pg 13.5 Cable Gland
  • Enclosure Rating: IP65
  • Ambient Temperature Range: -40 to 85 °C (-40 to 185 °F)
  • Approvals: ABS, BV, CCC, DNV GL, KR, LR, NKK, RINA, RMRS

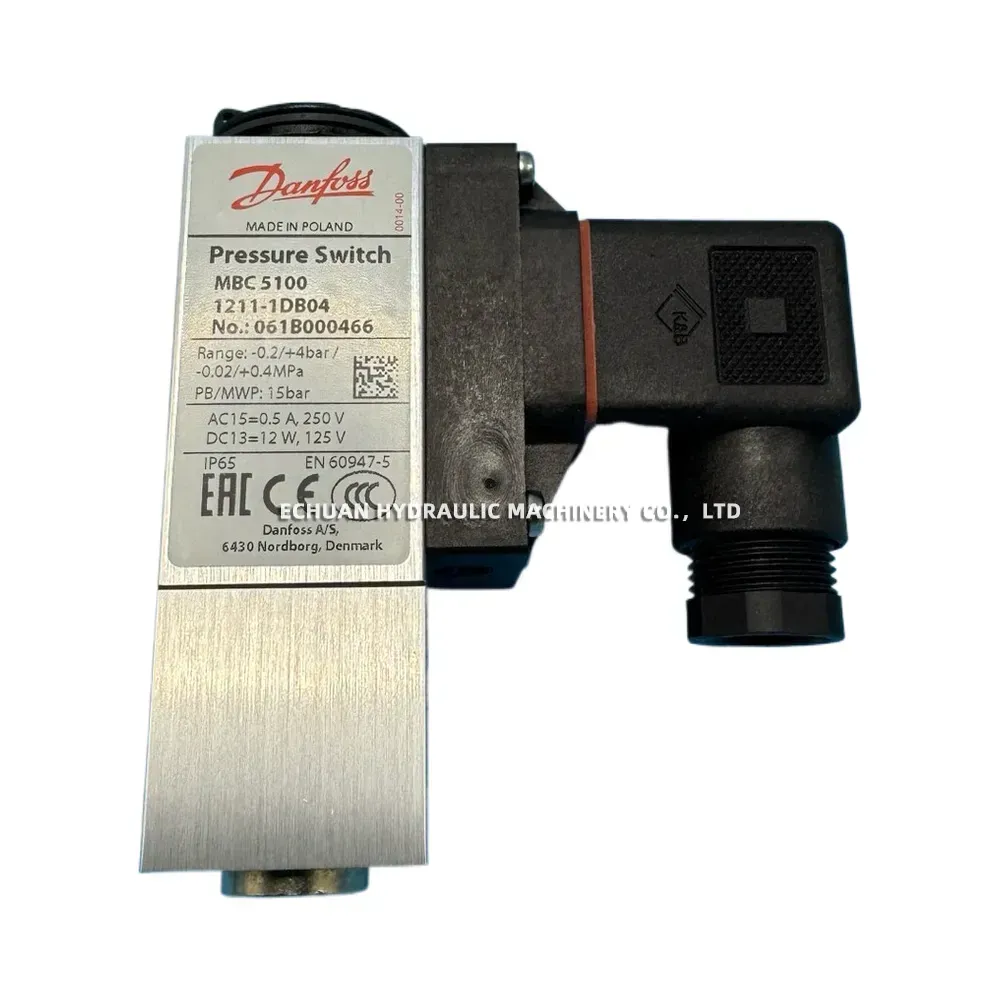

Danfoss MBC 51001211-1DB04 - Image 1

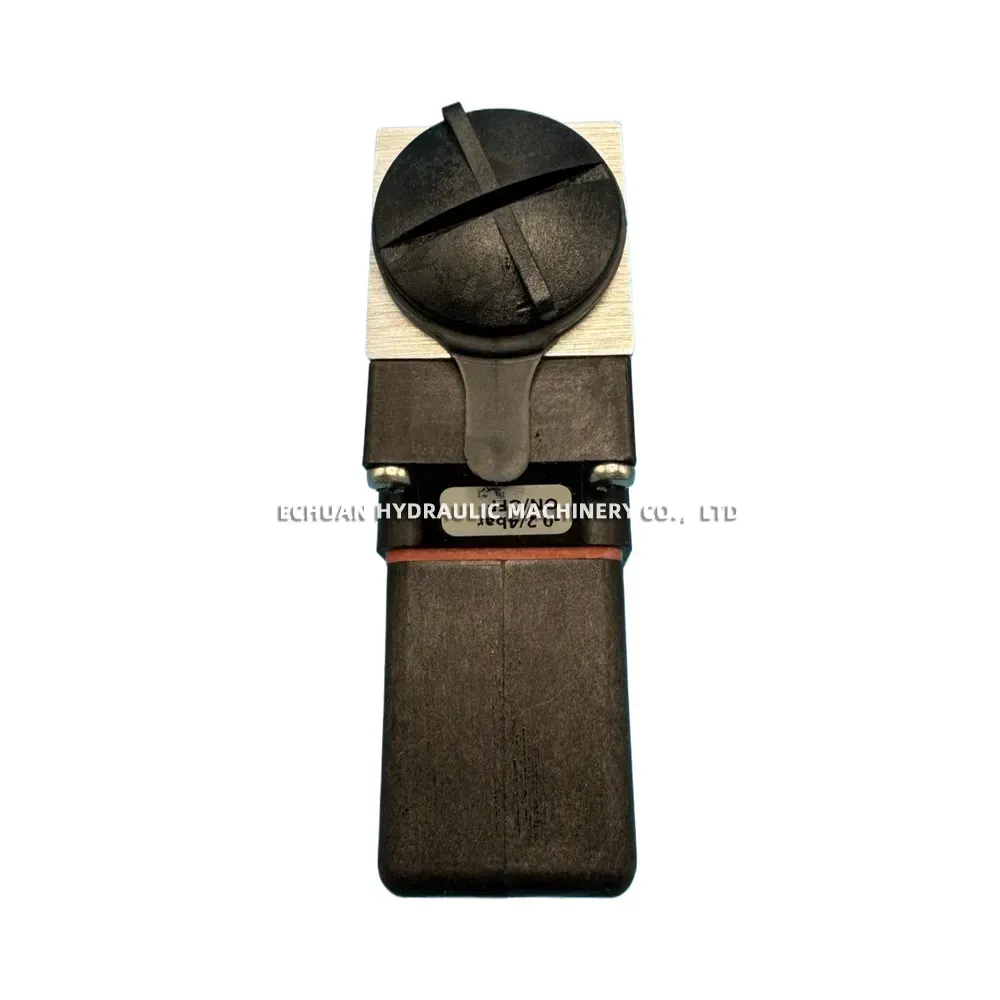

Danfoss MBC 51001211-1DB04 - Image 2

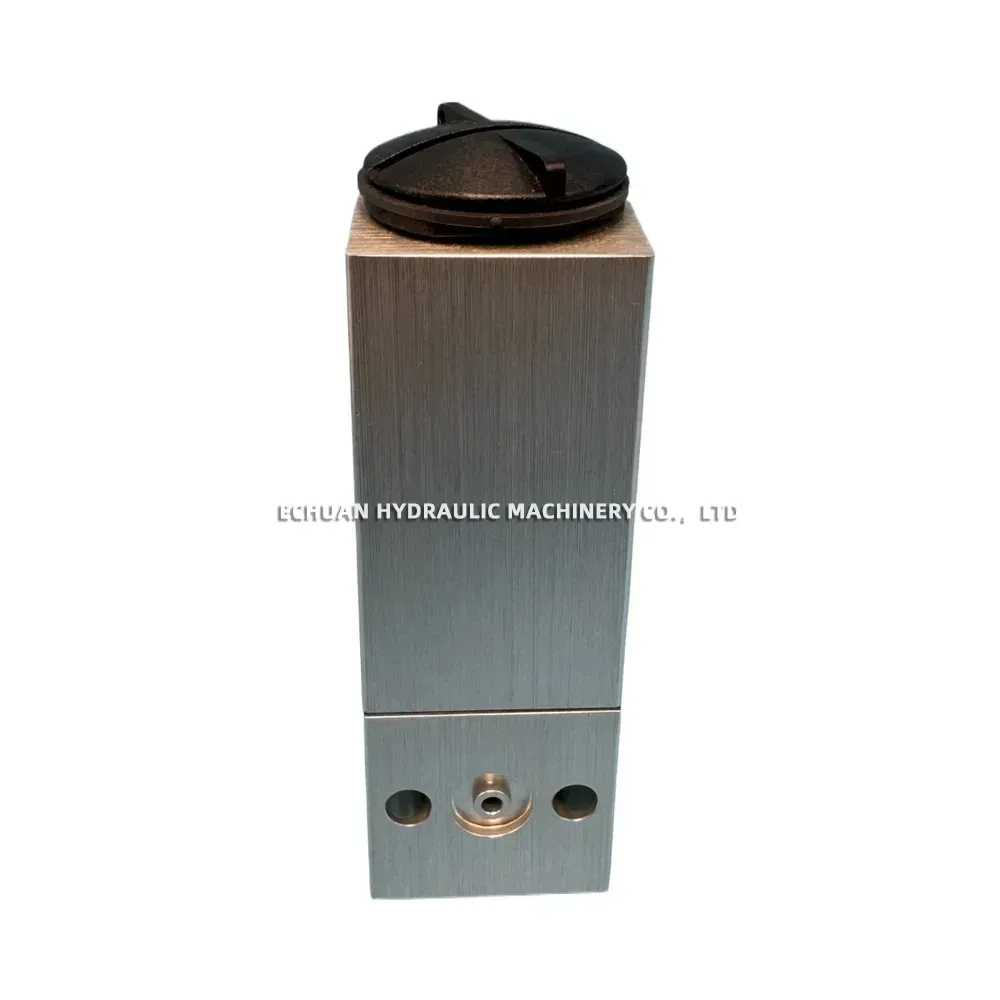

Danfoss MBC 51001211-1DB04 - Image 3

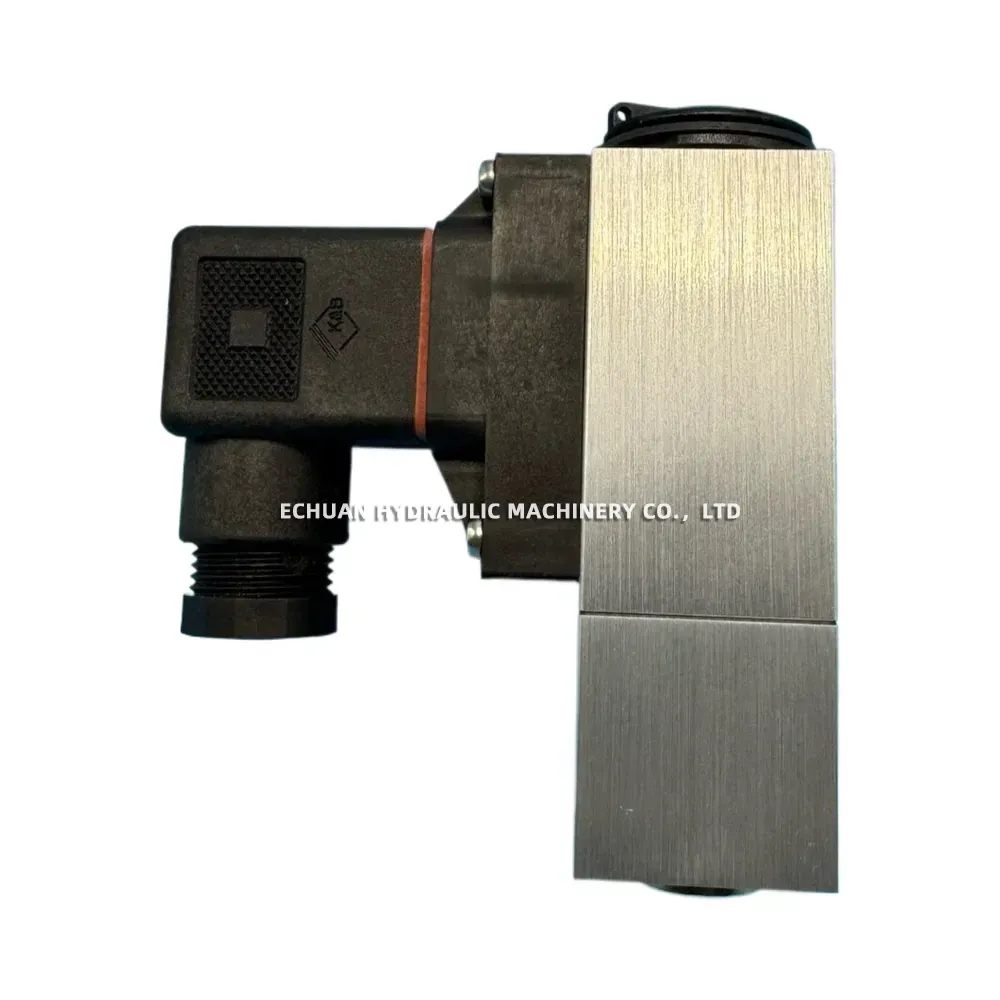

Danfoss MBC 51001211-1DB04 - Image 4

Danfoss MBC 51001211-1DB04

Model:Danfoss MBC 51001211-1DB04

BrandDANFOSS
ModelMBC 51001211-1DB04
Part No.Danfoss MBC 51001211-1DB04
CategoryElectrical
