Product Description

Danfoss MBC5100 1211-1DB04 061B012166

The Danfoss MBC 5100 is a compact, block-type pressure switch designed for robust performance in demanding industrial and marine applications. Engineered to withstand severe conditions, it features high vibration resistance and is suitable for use in monitoring and alarm systems within ship engine rooms and other harsh environments. The MBC 5100 series has received major ship approvals, ensuring reliability and compliance with stringent standards. Its differential pressure settings and reliable micro-switch technology provide accurate and stable pressure control for a wide range of machinery and equipment.

Technical Specifications:

  • Type: MBC 5100

  • Pressure Range: 10 to 100 bar (145 to 1450 psi)

  • Differential: 4.5 to 13.0 bar

  • Contact Function: SPDT (Single Pole Double Throw)

  • Pressure Connection: G 1/4 Male (ISO 228/1)

  • Electrical Connection: DIN 43650-A Plug, Pg 11

  • IP Rating: IP65

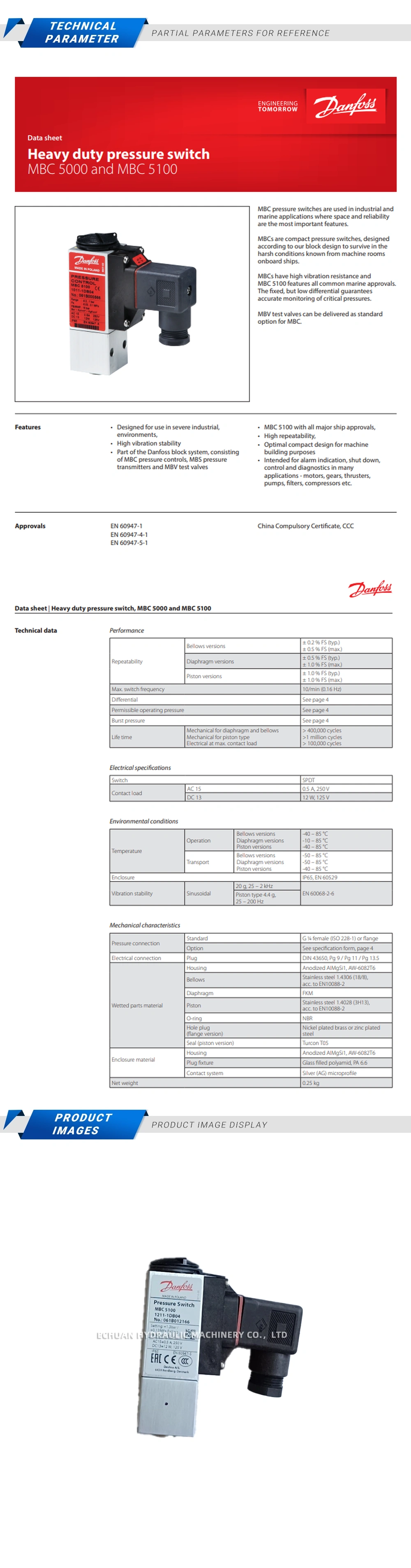

Danfoss MBC5100 1211-1DB04 061B012166 Description

Danfoss MBC5100 1211-1DB04 061B012166

Order the Danfoss MBC 5100 block-type pressure switch, part number 061B012166. This reliable switch is designed for harsh marine and industrial applications with a pressure range of 10-100 bar and SPDT contacts.
