Product Description

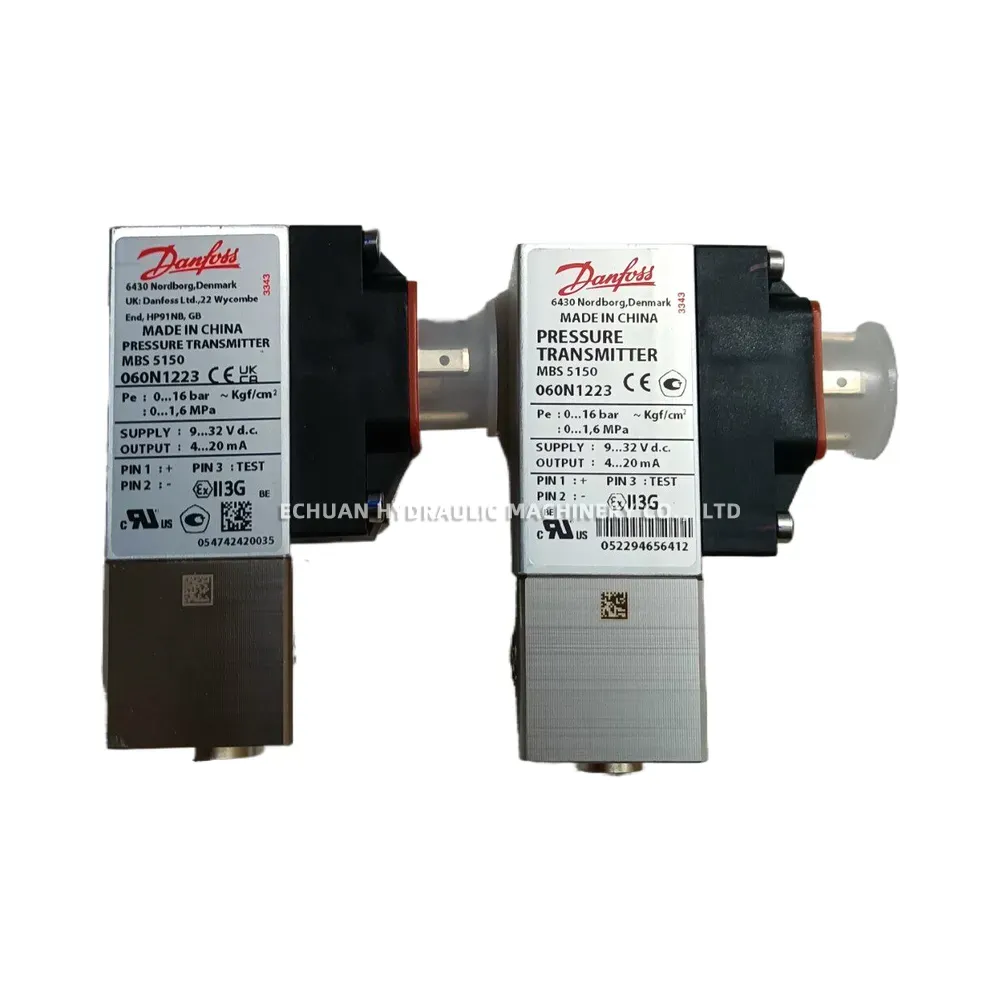

Danfoss MBS 5150 / 060N1223 / 46150-051013 Pressure Transmitter

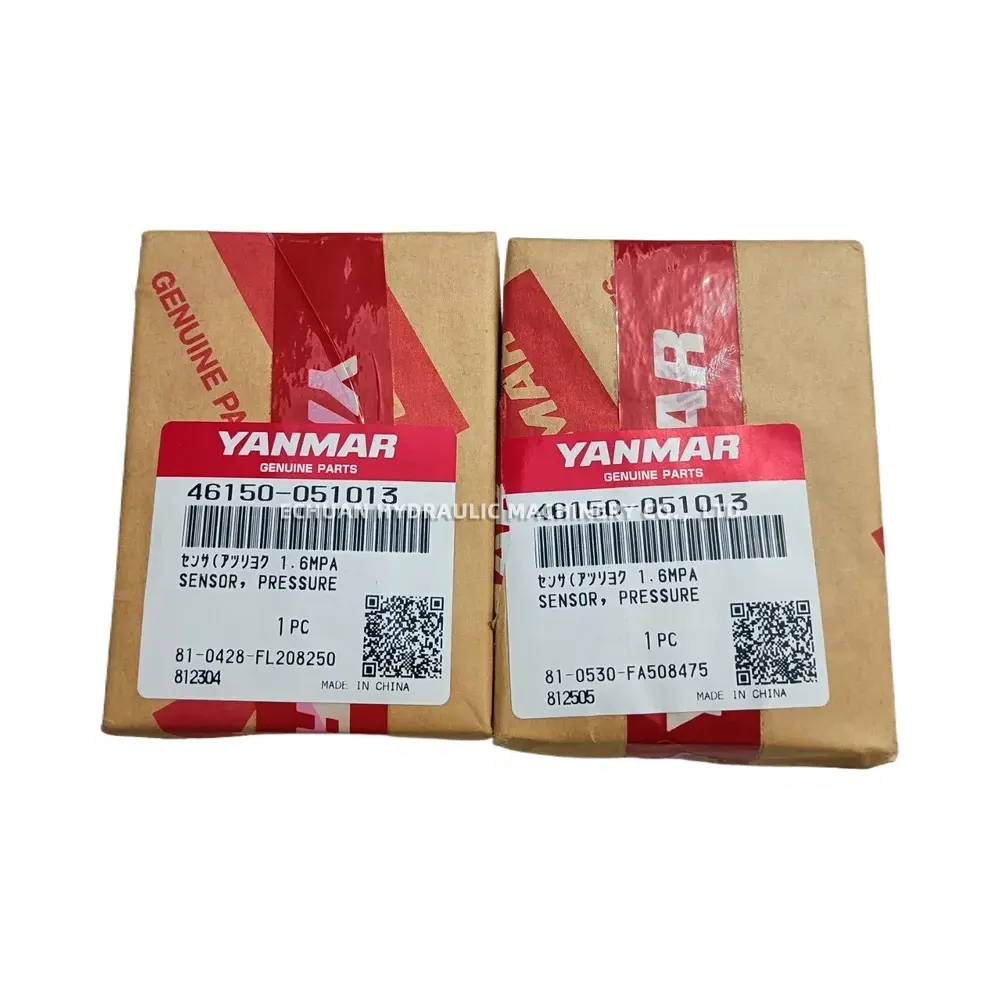

The Danfoss MBS 5150 (part number 060N1223) is a highly reliable and robust pressure transmitter engineered for demanding industrial and marine applications. It provides precise pressure measurements with a range of 0 to 16 bar (0 to 1.6 MPa) and delivers a standard 4 to 20 mA output signal. Operating on a 9 to 32 V d.c. supply voltage, this sensor is built to withstand harsh environments and holds an Ex II3G certification for safe use in potentially explosive atmospheres. Furthermore, this exact model is designated as a Yanmar Genuine Part (46150-051013), ensuring perfect compatibility and dependable performance for Yanmar engine and machinery systems.

Technical Specifications:

  • Brand: Danfoss (Yanmar Genuine Part)

  • Model / Part Number: MBS 5150 / 060N1223 / Yanmar 46150-051013

  • Measuring Range: 0…16 bar (0…1.6 MPa)

  • Output Signal: 4…20 mA

  • Supply Voltage: 9…32 V d.c.

  • Pin Configuration: PIN 1: (+), PIN 2: (-), PIN 3: (TEST)

  • Certifications & Approvals: Ex II3G, c RU US

  • Country of Origin: Made in China

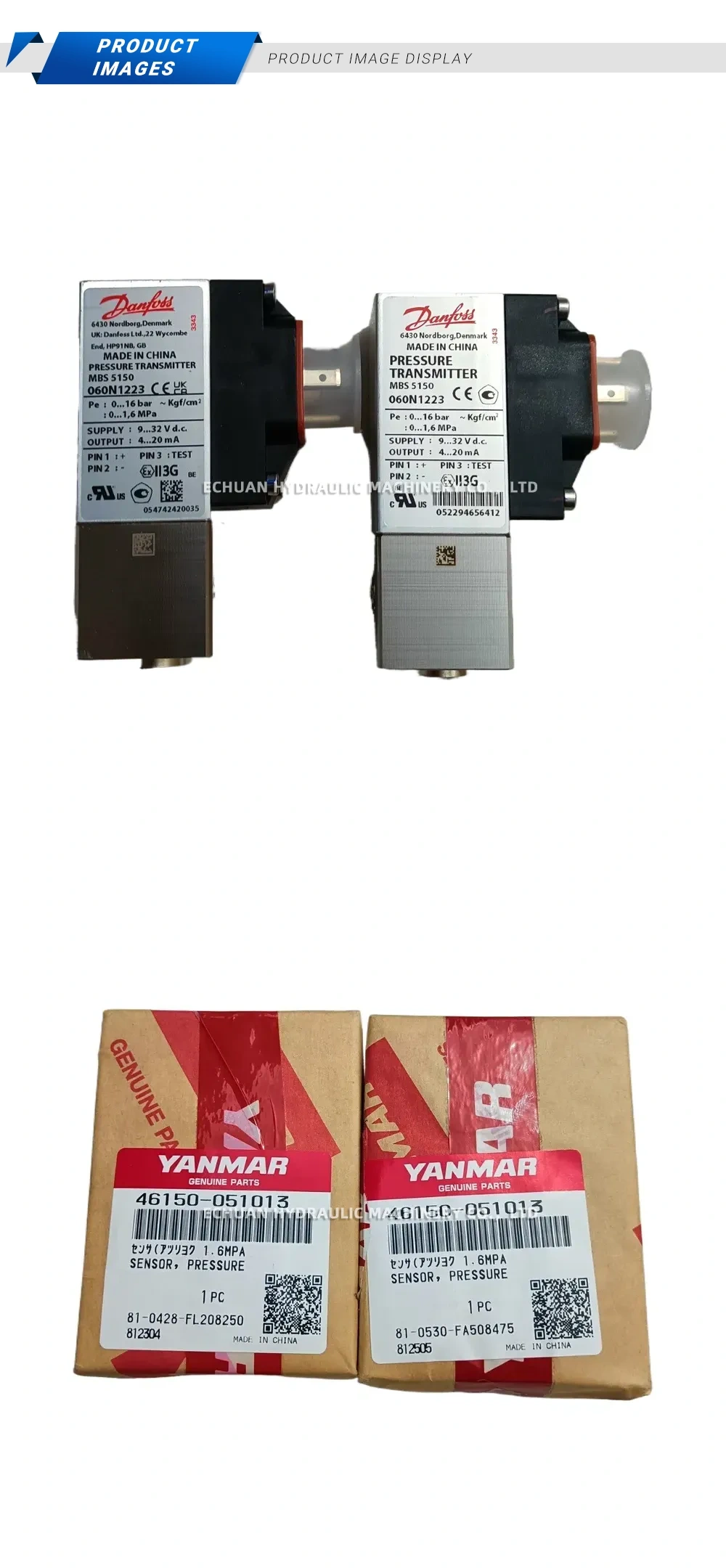

Danfoss MBS 5150 / 060N1223 / 46150-051013 Pressure Transmitter Description

Danfoss MBS 5150 / 060N1223 / 46150-051013 Pressure Transmitter

Shop the Danfoss MBS 5150 (060N1223) Pressure Transmitter. Features a 0-16 bar (1.6 MPa) measuring range, 4-20mA output, and Ex II3G certification. Also serves as a direct replacement for Yanmar Genuine Part 46150-051013. Ideal for heavy-duty marine and industrial use.
